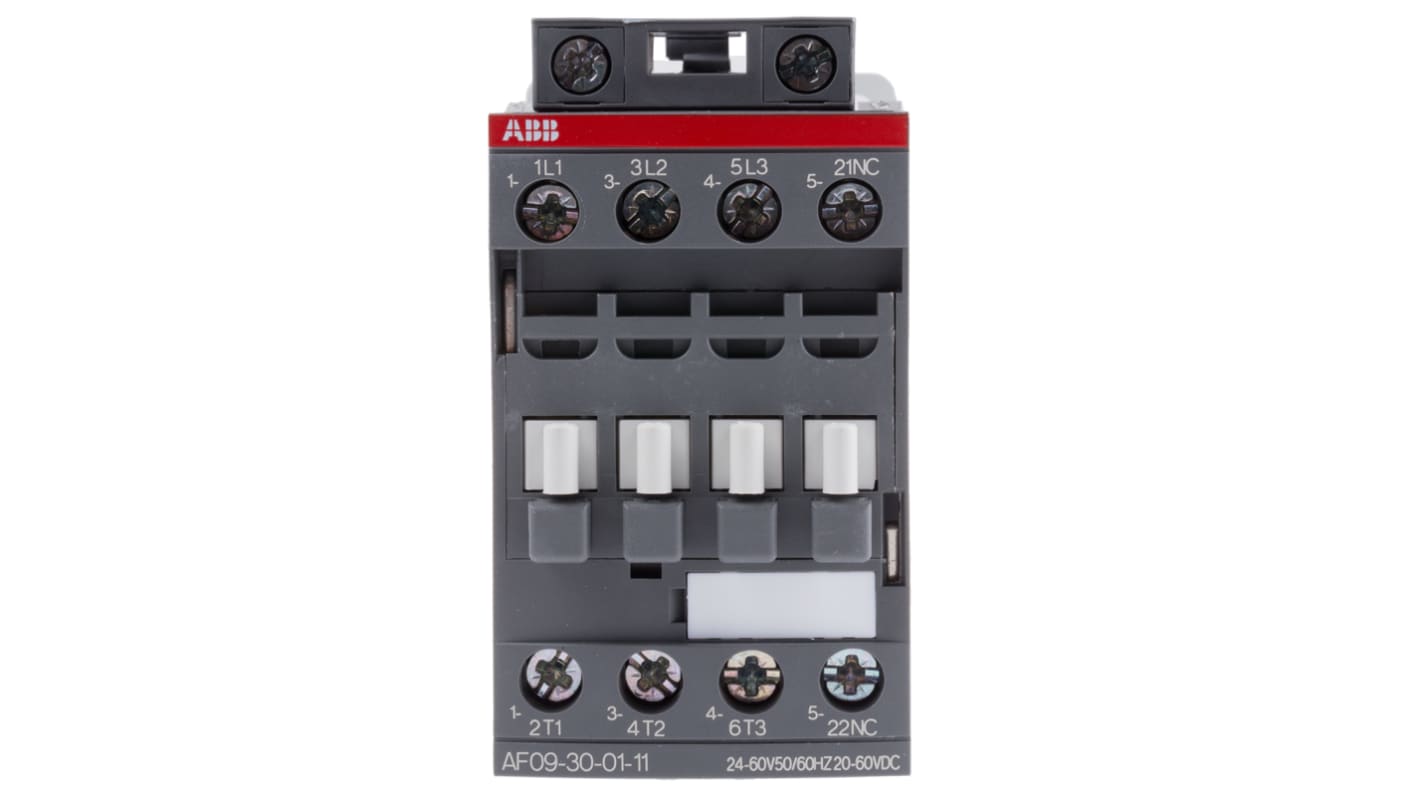

Références fabricant

ABB AF09 Contactor, 24V ac/dc Coil, 3-Pole, 25 A, 4 kW 60V, 3 NO, 690V ac

N° de stock RS:: 764-8987
Numéro d'article Distrelec:: 304-22-301
Référence fabricant:: 1SBL137001R1101 AF09-30-01-11
Fabricant:: ABB

ABB AF09 Contactor, 24V ac/dc Coil, 3-Pole, 25 A, 4 kW 60V, 3 NO, 690V ac

Voir l’ensemble des Contactors

Sous-total (1 unité)*

51,17 €

(TVA exclue)

61,92 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

Plus 9 unité(s) expédiée(s) à partir du 04 mai 2026
Plus 5 unité(s) expédiée(s) à partir du 04 mai 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	51,17 €

*Prix donné à titre indicatif

N° de stock RS:: 764-8987
Numéro d'article Distrelec:: 304-22-301
Référence fabricant:: 1SBL137001R1101 AF09-30-01-11
Fabricant:: ABB

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	ABB
	Product Type	Contactor
	Coil Voltage	24V ac/dc
	Number of Poles	3
	Contact Voltage	690V ac
	Contact Current	25A
	Power Rating	4kW
	Series	AF09
	Mount Type	DIN Rail
	Function	Motor Control
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	1 NC
	Number of Auxiliary Contacts	1
	Terminal Type	Screw
	Contactor Application	Motor Control
	Operational Current Ie	25A
	Control Circuit Voltage Uc	60V
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Depth	77mm
	Length	86mm
	Width	45mm
	Standards/Approvals	cULus, CE, UL
	Pole and Throw Configuration	3

	Sélectionner tout
	Marque ABB
	Product Type Contactor
	Coil Voltage 24V ac/dc
	Number of Poles 3
	Contact Voltage 690V ac
	Contact Current 25A
	Power Rating 4kW
	Series AF09
	Mount Type DIN Rail
	Function Motor Control
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 1 NC
	Number of Auxiliary Contacts 1
	Terminal Type Screw
	Contactor Application Motor Control
	Operational Current Ie 25A
	Control Circuit Voltage Uc 60V
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Depth 77mm
	Length 86mm
	Width 45mm
	Standards/Approvals cULus, CE, UL
	Pole and Throw Configuration 3

ABB Contactor, 690V Contact Voltage Rating, 1NC Auxiliary Contact - AF Series - 1SBL137001R1101 AF09-30-01-11

Use this ABB contactor to reliably start your high-voltage machinery. As the unit handles currents up to 25A, it can manage the large loads needed to activate hardware with intense electrical demands. With its three poles, it handles both three-phase and multiple single-phase supply voltages for versatility. The device comes with integrated surge protection to stop overload and short circuits damaging your system. An NC auxiliary contact lets this contactor signal its activation and trip status to your control device, keeping you informed about your appliances.

Features & Benefits

• Mounts on universal DIN rails for easy installation

• Response time of between 11 and 95ms for efficient machine control

• Mechanical service life of 10 million cycles for longevity

• Wide operating temperature range between -25°C and +60°C for demanding settings

Applications

• Agricultural equipment

• Warehouses

• Industrial safety systems

• Renewable energy industry

What's the switching frequency of this contactor?

This unit completes up to 600 electrical switching cycles an hour in general use. If used with a motor, it achieves a switching frequency of up to 1,200 cycles an hour for reliable switching in intense applications.
