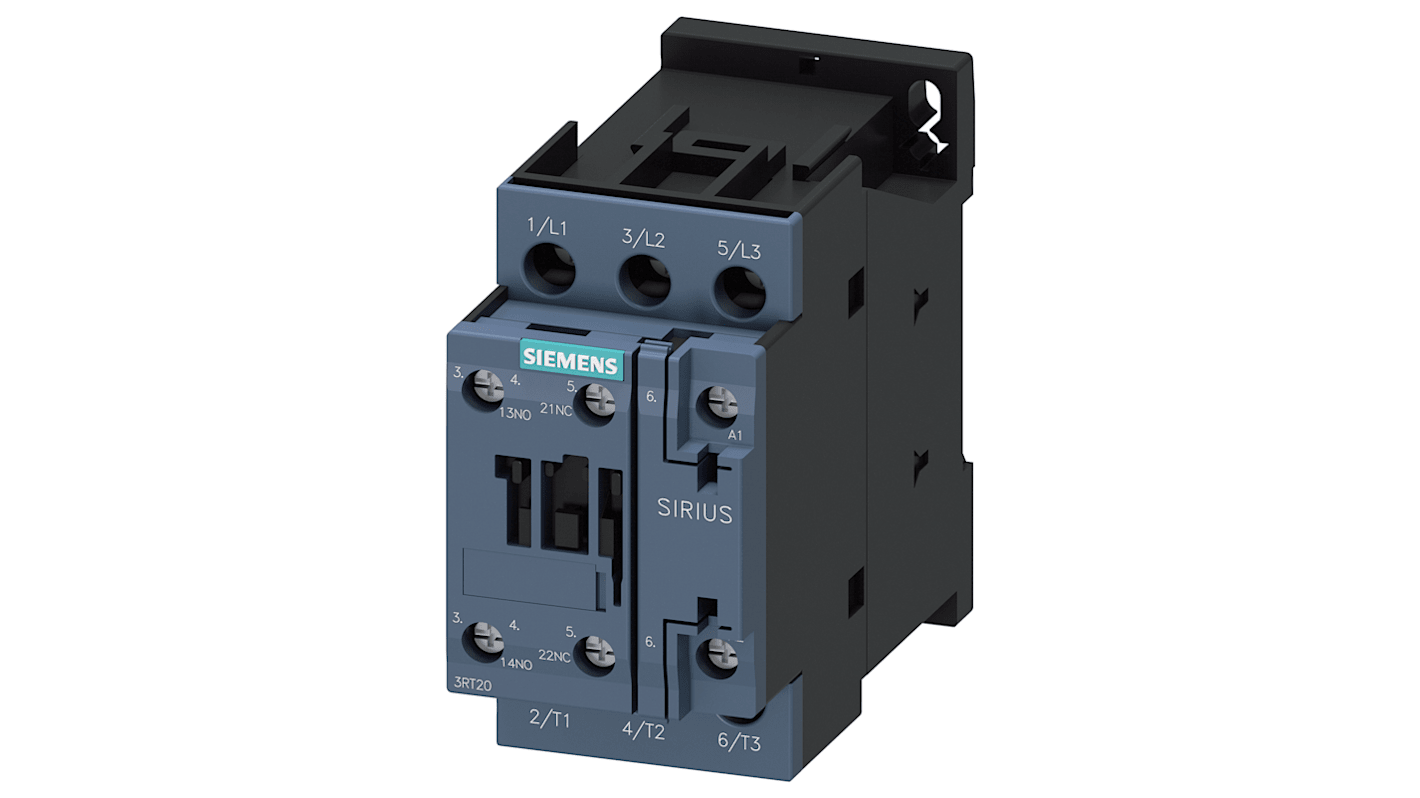

Siemens 3RT2 Contactor, 24V ac Coil, 3-Pole, 40 A, 7.5 kW 24V ac, 1 NO/1 NC, 400V

N° de stock RS:: 213-0677
Référence fabricant:: 3RT2025-1AC20
Fabricant:: Siemens

Siemens 3RT2 Contactor, 24V ac Coil, 3-Pole, 40 A, 7.5 kW 24V ac, 1 NO/1 NC, 400V

Sous-total (1 unité)*

83,43 €

(TVA exclue)

100,95 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

Plus 3 unité(s) expédiée(s) à partir du 09 juin 2026
Plus 3 unité(s) expédiée(s) à partir du 09 juin 2026
Plus 17 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	83,43 €

*Prix donné à titre indicatif

Notre gamme de produits Better World vous facilite l'accès à des produits plus durables et plus fiables.

Cliquez ici pour en savoir plus.

N° de stock RS:: 213-0677
Référence fabricant:: 3RT2025-1AC20
Fabricant:: Siemens

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Siemens
	Coil Voltage	24V ac
	Product Type	Contactor
	Number of Poles	3
	Contact Voltage	400V
	Contact Current	40A
	Power Rating	7.5kW
	Series	3RT2
	Function	Motor Control, Reversing
	Mount Type	Snap-On
	Normal State Configuration	1 NO/1 NC
	Auxiliary Contact Configuration	1 NO/1 NC
	Number of Auxiliary Contacts	2
	Terminal Type	Screw Clamp
	Contactor Application	Motor Control
	Minimum Operating Temperature	-25°C
	Operational Current Ie	17A
	Control Circuit Voltage Uc	24V ac
	Maximum Operating Temperature	60°C
	Standards/Approvals	CCC, CSA, EAC, UL
	Width	45mm
	Length	85mm
	Depth	97mm
	Better World Claim	Low Carbon Manufacture
	Better World Product	Yes
	Pole and Throw Configuration	3P

	Sélectionner tout
	Marque Siemens
	Coil Voltage 24V ac
	Product Type Contactor
	Number of Poles 3
	Contact Voltage 400V
	Contact Current 40A
	Power Rating 7.5kW
	Series 3RT2
	Function Motor Control, Reversing
	Mount Type Snap-On
	Normal State Configuration 1 NO/1 NC
	Auxiliary Contact Configuration 1 NO/1 NC
	Number of Auxiliary Contacts 2
	Terminal Type Screw Clamp
	Contactor Application Motor Control
	Minimum Operating Temperature -25°C
	Operational Current Ie 17A
	Control Circuit Voltage Uc 24V ac
	Maximum Operating Temperature 60°C
	Standards/Approvals CCC, CSA, EAC, UL
	Width 45mm
	Length 85mm
	Depth 97mm
	Better World Claim Low Carbon Manufacture
	Better World Product Yes
	Pole and Throw Configuration 3P

Se connecter pour voir les modèles CAO

Pays d'origine :: DE

Siemens Contactor, 7.5kW Power Rating, 1NO + 1NC Normal State Configuration - 3RT2025-1AC20

This contactor is designed for efficient power management in various industrial settings. With a coil voltage of 690V, it operates effectively within a temperature range of -25 to +60°C. This surface mount component has compact dimensions of 85mm in length, 45mm in width, and 97mm in depth, making it suitable for installations where space is limited.

Features & Benefits

• Reversing function enables bidirectional control of motors

• 3 pole configuration supports various connection options

• 40A current rating accommodates substantial load requirements

• Low carbon manufacturing aligns with environmental initiatives

• Auxiliary contacts configuration allows for additional circuit control

• High mechanical service life supports long-term usage

Applications

• Utilised in motor control circuits for industrial equipment

• Suitable for requiring reversing motor functions

• Ideal for automation systems needing dependable switching

• Common in environments with high operational demands

Can it operate at extreme temperatures?

Yes, it functions between -25°C and +60°C.

Is it suitable for high-load applications?

Yes, it supports up to 40A of current.

Will it fit in compact spaces?

Yes, its dimensions are optimised for limited spaces.

Can it be surface-mounted easily?

Yes, it is designed for straightforward surface mount installation.

Is it suitable for use with auxiliary circuits?

Yes, the component supports auxiliary contacts for expanded control.
