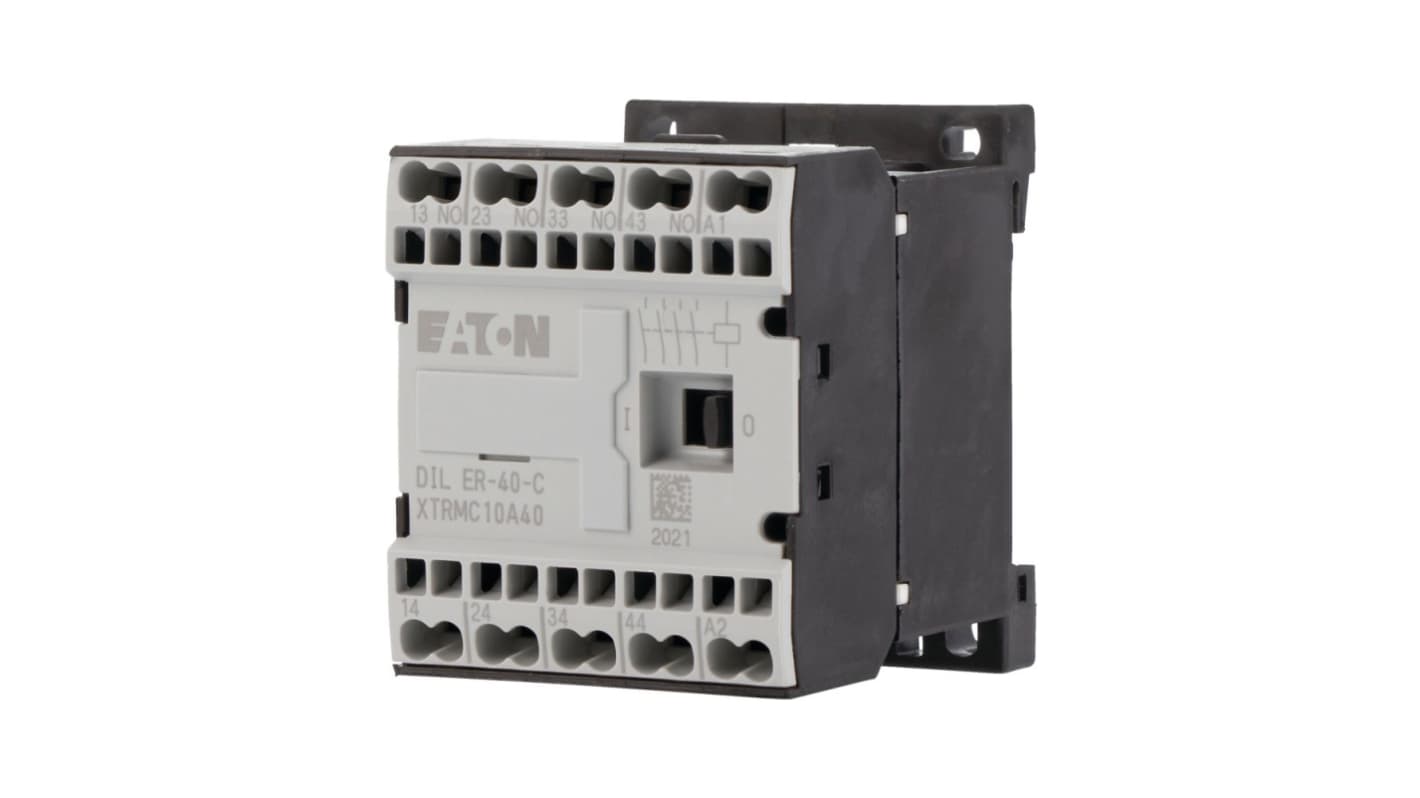

Eaton DILER Contactor Relay, 24V dc Coil, 4-Pole, 6 A, 2.3 W 24V dc, 4 NO, 300V ac
- N° de stock RS:
- 254-693
- Référence fabricant:
- 230241 DILER-40-G-C(24VDC)
- Fabricant:
- Eaton
Sous-total (1 unité)*
56,97 €
(TVA exclue)
68,93 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 20 juillet 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 56,97 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 254-693
- Référence fabricant:
- 230241 DILER-40-G-C(24VDC)
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Product Type | Contactor Relay | |
| Coil Voltage | 24V dc | |
| Number of Poles | 4 | |
| Contact Voltage | 300V ac | |
| Contact Current | 6A | |
| Power Rating | 2.3W | |
| Series | DILER | |
| Function | Contactor Relay | |
| Mount Type | DIN Rail | |
| Normal State Configuration | 4 NO | |
| Number of Auxiliary Contacts | 4 | |
| Terminal Type | Spring Loaded | |
| Operational Current Ie | 10A | |
| Minimum Operating Temperature | -25°C | |
| Control Circuit Voltage Uc | 24V dc | |
| Contactor Application | Contactor Relay | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | VDE 0660, UL UL Category Control No.: NKCR, UL File No.: E29184, UL 508, IEC/EN 60947-4-1, IEC/EN 60947, CSA File No.: 012528, CSA CSA Class No.: 3211-03, CSA-C22.2 No. 14-05, CE EN 60947-5-1 | |
| Width | 45mm | |
| Length | 52mm | |
| Depth | 54mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Product Type Contactor Relay | ||
Coil Voltage 24V dc | ||
Number of Poles 4 | ||
Contact Voltage 300V ac | ||
Contact Current 6A | ||
Power Rating 2.3W | ||
Series DILER | ||
Function Contactor Relay | ||
Mount Type DIN Rail | ||
Normal State Configuration 4 NO | ||
Number of Auxiliary Contacts 4 | ||
Terminal Type Spring Loaded | ||
Operational Current Ie 10A | ||
Minimum Operating Temperature -25°C | ||
Control Circuit Voltage Uc 24V dc | ||
Contactor Application Contactor Relay | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals VDE 0660, UL UL Category Control No.: NKCR, UL File No.: E29184, UL 508, IEC/EN 60947-4-1, IEC/EN 60947, CSA File No.: 012528, CSA CSA Class No.: 3211-03, CSA-C22.2 No. 14-05, CE EN 60947-5-1 | ||
Width 45mm | ||
Length 52mm | ||
Depth 54mm | ||
Statut RoHS : Exempté
- Pays d'origine :
- DE
The Eaton Moeller series DILER Contactor Relay is expertly designed for DC operation with four normally open contacts, making it an ideal choice for a range of applications. This compact unit, measuring a mere 54 mm in depth and 45 mm in width, boasts significant mechanical lifespan of up to 20 million operations. Engineered with reliability at its core, it features spring-loaded terminals that facilitate easy installation on DIN rails and a variety of mounting positions, ensuring adaptability in any setting. The DILER series excels in efficiency and safety, meeting rigorous compliance standards whilst providing robust protection against electrical shocks. Its exceptional operational performance combined with enhanced environmental tolerances positions it as a powerful and versatile component for modern electrical control systems.
Compact design facilitates easy integration into various control systems
High mechanical lifespan ensures long-term reliability and reduced maintenance costs
Spring-loaded terminals streamline installation and optimise wiring efficiency
Designed to meet stringent safety standards, providing peace of mind
Flexibility in mounting orientation accommodates different installation requirements
Quick action times enhance overall system responsiveness
Positive operating contacts contribute to system reliability and performance
Environmental tolerances allow operation in a wide array of conditions
