Références fabricant

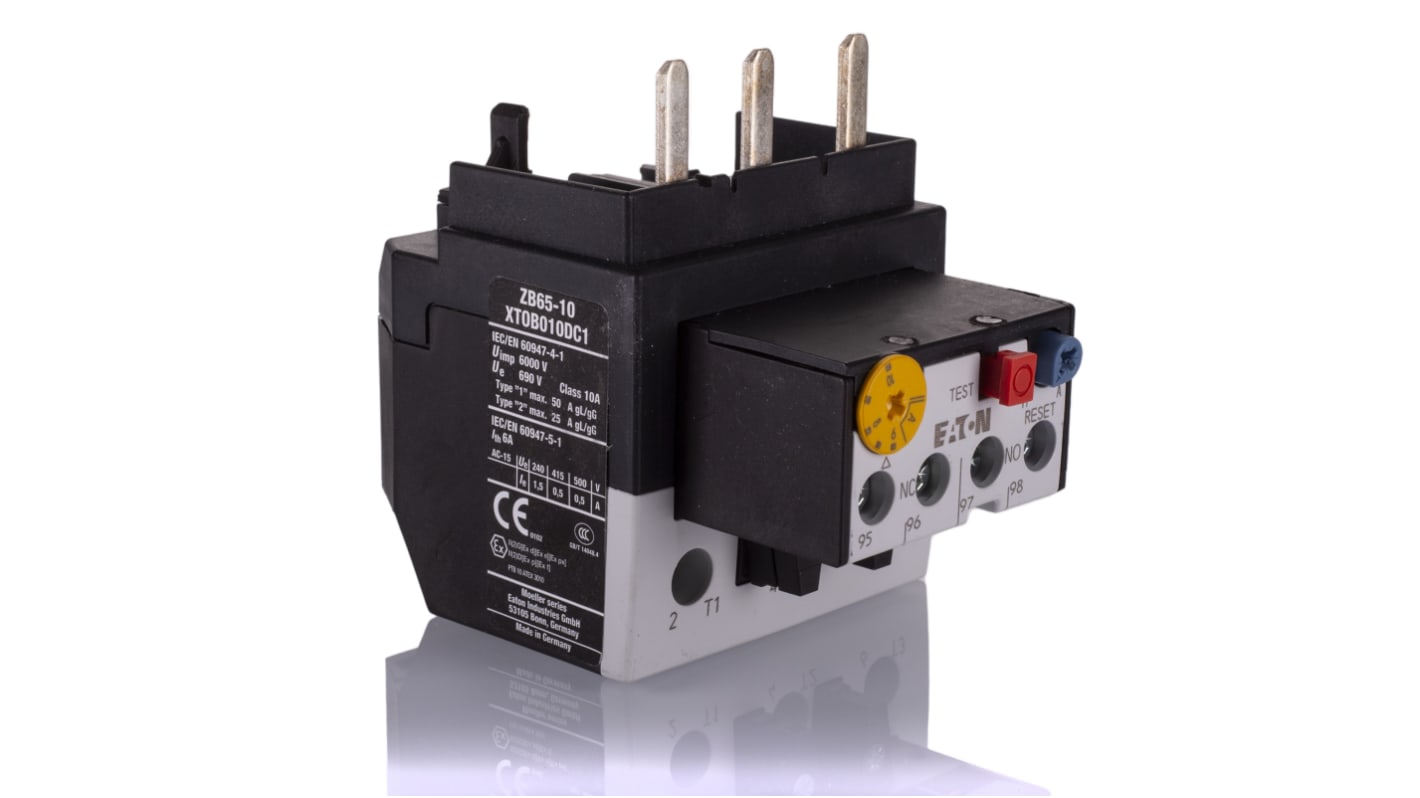

Eaton, ZB65 Overload Relay 1 NO/1 NC, Trip Dial: 6 → 10 A, 10A, 6 A F.L.C, 10A Contact Rating, 7.5 W, 500V ac

N° de stock RS:: 513-0279
Référence fabricant:: 278455 ZB65-10
Fabricant:: Eaton

Eaton, ZB65 Overload Relay 1 NO/1 NC, Trip Dial: 6 → 10 A, 10A, 6 A F.L.C, 10A Contact Rating, 7.5 W, 500V ac

Sous-total (1 unité)*

79,66 €

(TVA exclue)

96,39 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

10 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	79,66 €

*Prix donné à titre indicatif

N° de stock RS:: 513-0279
Référence fabricant:: 278455 ZB65-10
Fabricant:: Eaton

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Eaton
	FLC Motor Rating	10A, 6A
	Product Type	Overload Relay
	Relay Contact Current	10A
	Mount Type	Direct
	Series	ZB65
	Power Rating	7.5W
	Terminal Type	Screw
	Normal State Configuration	1 NO/1 NC
	IP Rating	IP00
	Reset Method	Automatic & Manual
	Minimum Operating Temperature	-5°C
	Width	60mm
	Number of Auxiliary Contacts	2
	Adjustable Current Range	6 → 10 A
	Maximum Operating Temperature	55°C
	Length	172mm
	Contact Voltage	690V ac
	Standards/Approvals	UL File No.:E29184, VDE 0660, UL Category Control No.:NKCR, UL Approved, UL 508, IEC/EN 60947-4-1, IEC/EN 60947, CSA File No.:012528, CSA Class No.:3211-03, CSA-C22.2 No. 60947-4-1-14, CSA Approved, CE Approved
	Depth	132mm
	Control Voltage	500V ac

	Sélectionner tout
	Marque Eaton
	FLC Motor Rating 10A, 6A
	Product Type Overload Relay
	Relay Contact Current 10A
	Mount Type Direct
	Series ZB65
	Power Rating 7.5W
	Terminal Type Screw
	Normal State Configuration 1 NO/1 NC
	IP Rating IP00
	Reset Method Automatic & Manual
	Minimum Operating Temperature -5°C
	Width 60mm
	Number of Auxiliary Contacts 2
	Adjustable Current Range 6 → 10 A
	Maximum Operating Temperature 55°C
	Length 172mm
	Contact Voltage 690V ac
	Standards/Approvals UL File No.:E29184, VDE 0660, UL Category Control No.:NKCR, UL Approved, UL 508, IEC/EN 60947-4-1, IEC/EN 60947, CSA File No.:012528, CSA Class No.:3211-03, CSA-C22.2 No. 60947-4-1-14, CSA Approved, CE Approved
	Depth 132mm
	Control Voltage 500V ac

Se connecter pour voir les modèles CAO

Statut RoHS : Exempté

Eaton Overload Relay, Automatic / Manual Reset Types, 6kV Impulse Voltage Rating - ZB65 Series - 278455 ZB65-10

Protect your appliances from overcurrent with this overload relay from Eaton. It breaks the attached circuit if the current rises too high, stopping electrical faults from damaging your equipment. Thanks to an adjustable current range between 6 and 10A, the device is compatible with standard contactors. Selectable automatic and manual reset functions let you control how the unit restarts to suit the needs of your application. As it mounts directly to the underside of your contactor, installation is quick and straightforward. Use this relay to protect your motor starters and control panels.

Features & Benefits

• Trip-free release prevents failures caused by tampering and delivers reliable protection

• Power rating of 7.5W for energy efficiency

• Broad operating temperature range from -5°C to +55 °C for use in demanding industrial environments

Is this overload relay safe for use in wet conditions?

This relay's IP00 rating means it isn't protected against dust or water. You can only use it in wet conditions if it's protected by an enclosure.

How do I know if I've installed this relay properly?

You can use the unit's integrated test function to ensure it's correctly installed.

Note

Eaton formerly known as Moeller
