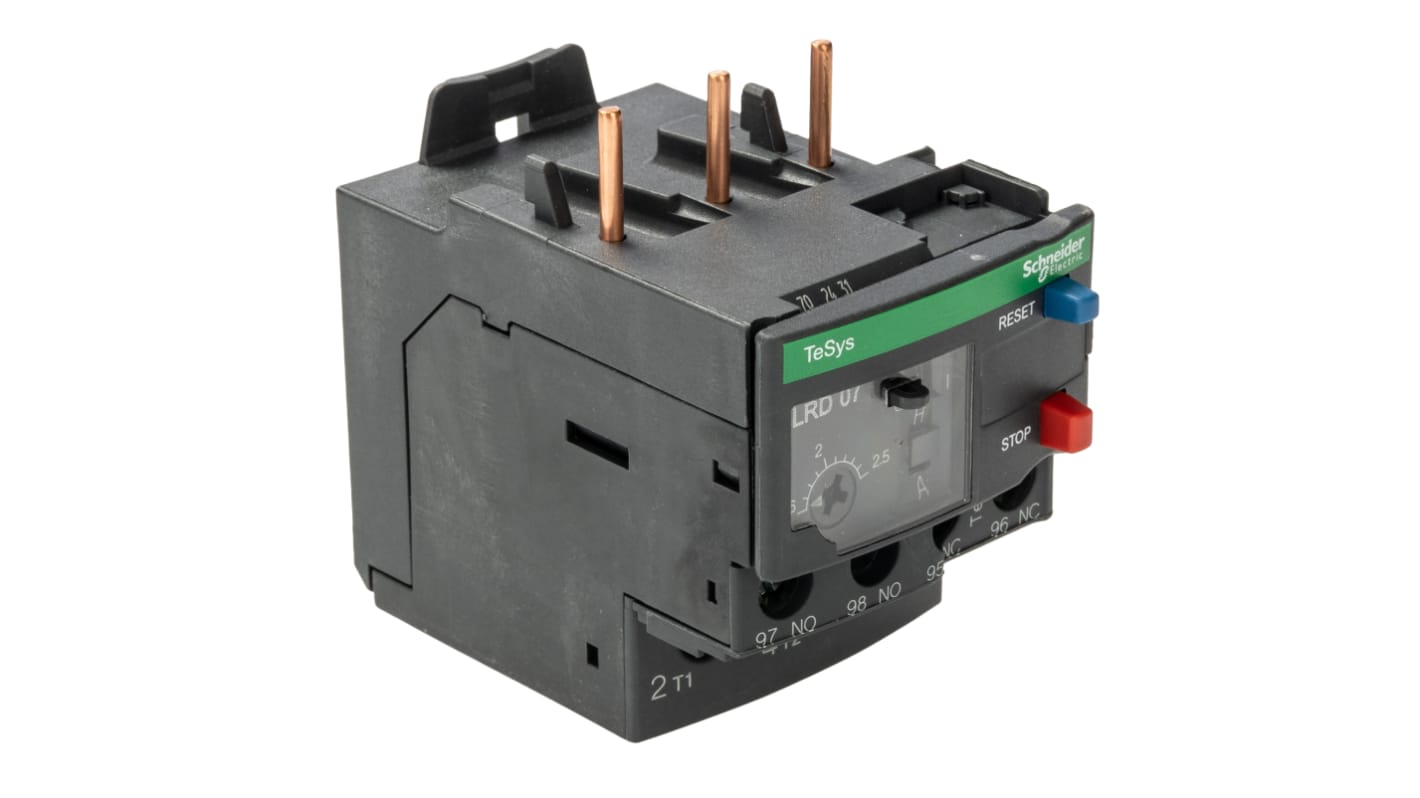

Schneider Electric, LRD Overload Relay 1 NO/1 NC, Trip Dial: 1.6 → 2.5 A, 1.6A, 2.5 A F.L.C, 2.5A Contact Rating, 750 W

N° de stock RS:: 394-9403
Numéro d'article Distrelec:: 136-22-706
Référence fabricant:: LRD07
Fabricant:: Schneider Electric

Schneider Electric, LRD Overload Relay 1 NO/1 NC, Trip Dial: 1.6 → 2.5 A, 1.6A, 2.5 A F.L.C, 2.5A Contact Rating, 750 W

Sous-total (1 unité)*

65,18 €

(TVA exclue)

78,87 €

(TVA incluse)

Frais de livraison offerts pour toute commande de plus de 90,00 €

En stock

Plus 12 unité(s) expédiée(s) à partir du 02 novembre 2026
Plus 176 unité(s) expédiée(s) à partir du 02 novembre 2026

Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails

Unité	Prix par unité
1 +	65,18 €

*Prix donné à titre indicatif

N° de stock RS:: 394-9403
Numéro d'article Distrelec:: 136-22-706
Référence fabricant:: LRD07
Fabricant:: Schneider Electric

Spécifications

Documentation technique

Législations et de normes

Détails du produit

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Schneider Electric
	FLC Motor Rating	1.6A, 2.5A
	Product Type	Overload Relay
	Relay Contact Current	2.5A
	Series	LRD
	Mount Type	Direct
	Power Rating	750W
	Pole and Throw Configuration	3
	Normal State Configuration	1 NO/1 NC
	Terminal Type	Screw
	Reset Method	Automatic & Manual
	IP Rating	IP20
	Adjustable Current Range	1.6 → 2.5 A
	Number of Auxiliary Contacts	2
	Width	45mm
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	60°C
	Length	66mm
	Contact Voltage	690V ac
	Standards/Approvals	CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EC Approved, EAC Approved, DNV-GL Approved, CSA C22.2 No 60947-5-1, CSA Approved, UL Approved, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1
	Depth	70mm
	Supply Voltage	690V ac

	Sélectionner tout
	Marque Schneider Electric
	FLC Motor Rating 1.6A, 2.5A
	Product Type Overload Relay
	Relay Contact Current 2.5A
	Series LRD
	Mount Type Direct
	Power Rating 750W
	Pole and Throw Configuration 3
	Normal State Configuration 1 NO/1 NC
	Terminal Type Screw
	Reset Method Automatic & Manual
	IP Rating IP20
	Adjustable Current Range 1.6 → 2.5 A
	Number of Auxiliary Contacts 2
	Width 45mm
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature 60°C
	Length 66mm
	Contact Voltage 690V ac
	Standards/Approvals CSA C22.2 No 60947-4-1, EN/IEC 60947-4-1, EC Approved, EAC Approved, DNV-GL Approved, CSA C22.2 No 60947-5-1, CSA Approved, UL Approved, UL 60947-5-1, UL 60947-4-1, EN/IEC 60947-5-1
	Depth 70mm
	Supply Voltage 690V ac

Se connecter pour voir les modèles CAO

Statut RoHS : Exempté

Pays d'origine :: FR

Schneider Electric LRD Series Overload Relay, 1.6 to 2.5A FLC Motor Rating, 690V AC Contact Voltage - LRD07

This overload relay is an essential component for motor protection, designed to ensure safe operation within specified parameters. The TeSys LRD type is compatible with multiple contactors, offering robust electrical overload protection. It features a direct mounting style and comes equipped with screw terminals for easy installation. With dimensions of 66mm in height, 45mm in width, and 70mm in depth, this device operates effectively across a temperature range of -20 to +60 °C.

Features & Benefits

• Supports a thermal overload adjustment range of 1.6 to 2.5 A

• Provides automatic and manual reset methods for reliable operation

• Comprises 1NO + 1NC auxiliary contacts for versatile configuration

• Rated insulation voltage of 690V ensures compliance with standards

• Rugged design withstands shocks and vibrations for durability

• IP20 protection rating safeguards against foreign materials

Applications

• Utilised for motor protection in various industrial setups

• Compatible with multiple types of contactors to enhance functionality

• Designed for use in DC and AC networks for diverse

• Suitable for environments with stringent temperature requirements

What is the tripping threshold for this device?

The tripping threshold is set at 1.14 +/- 0.06 of the rated current, ensuring reliable operation within defined parameters.

How does the relay handle phase failure sensitivity?

It is designed to trip when the current reaches 130% of the rated current on two phases, providing added safety during operation.

What types of networks is this relay compatible with?

This device supports both DC and AC networks, making it versatile for a range of applications.

What is the maximum current rating of the auxiliary contacts?

The auxiliary contacts allow for a maximum current of 3 A at 120V AC for signalling purposes, enhancing its utility in control circuits.

How can it be mounted?

The overload relay can be mounted on a plate or rail, with specific accessories required for installation.
