Eaton, ZE Overload Relay NO/NC, Trip Dial: 0.24 → 0.4 A, 240mA, 400 mA F.L.C, 1.5A Contact Rating 1 NO/1 NC

Sous-total (1 unité)*

64,84 €

(TVA exclue)

78,46 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • Plus 5 unité(s) expédiée(s) à partir du 24 novembre 2026
  • Plus 10 unité(s) expédiée(s) à partir du 08 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +64,84 €

*Prix donné à titre indicatif

N° de stock RS:
230-1310
Référence fabricant:
014300 ZE-0,4
Fabricant:
Eaton
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Eaton

Product Type

Overload Relay

FLC Motor Rating

240mA, 400mA

Relay Contact Current

1.5A

Mount Type

Direct

Series

ZE

Pole and Throw Configuration

1 NO/1 NC

Normal State Configuration

NO/NC

Terminal Type

Screw

IP Rating

IP20

Number of Auxiliary Contacts

2

Adjustable Current Range

0.24 → 0.4 A

Width

45mm

Minimum Operating Temperature

-5°C

Maximum Operating Temperature

55°C

Length

65mm

Contact Voltage

690V

Standards/Approvals

UL, CSA, VDE 0660, IEC/EN 60947

Depth

52mm

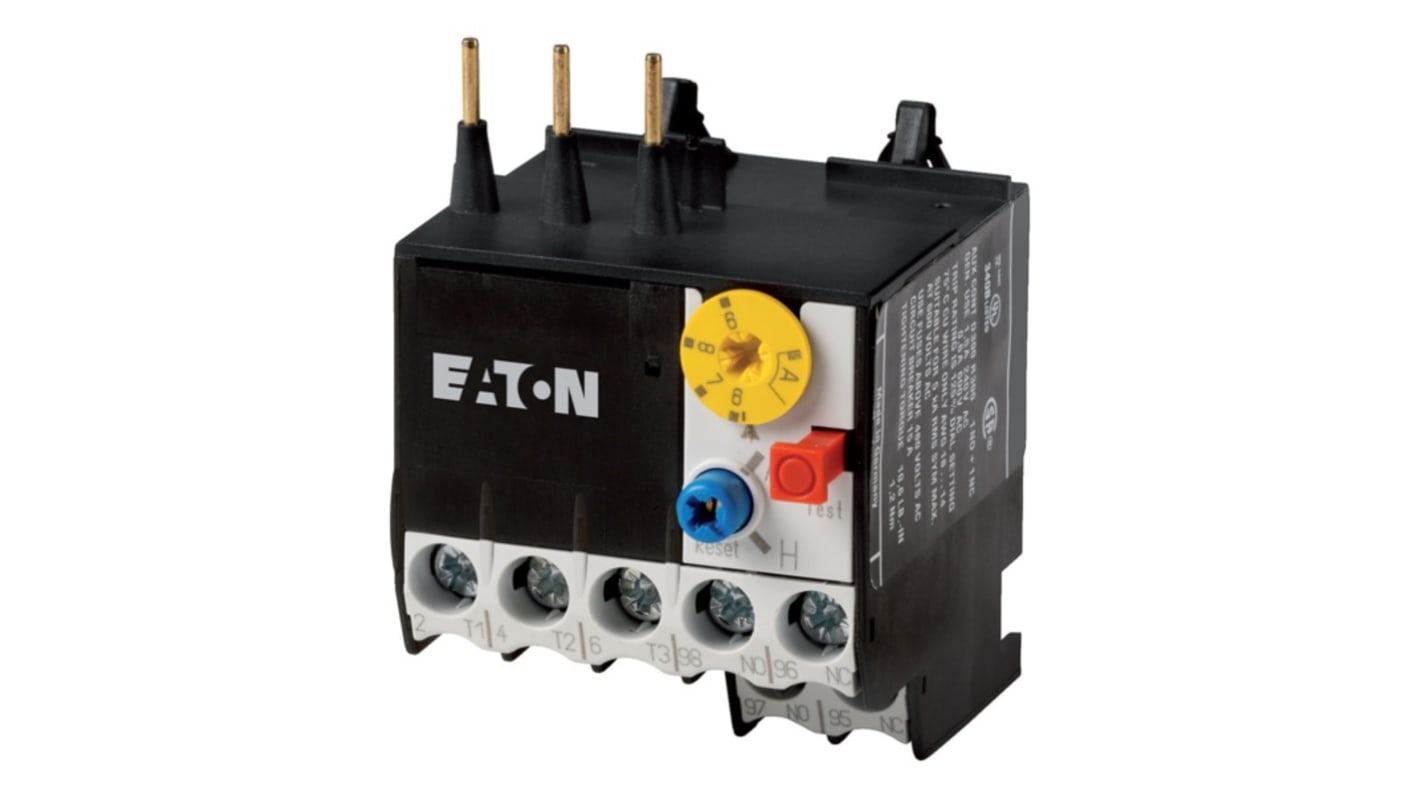

The Eaton overload relay is phase-failure sensitive and has test/off button, reset push button manual/auto, trip-free release. It provides adjustable current range from 0.24 to 0.4 A. It has 1 normally open and 1 normally closed auxiliary contacts. It supports direct mounting.

It is UL listed and CSA certified

It has IP20 degree of protection

Note

Eaton formerly known as Moeller
