Siemens, SIRIUS 3RU2 Thermal Overload Relay 1 NO/1 NC, 6.3A F.L.C, 6.3A Contact Rating, 2.2 kW, 690V ac 3P
- N° de stock RS:
- 213-1127
- Référence fabricant:
- 3RU2116-1GB1
- Fabricant:
- Siemens
Sous-total (1 unité)*
99,49 €
(TVA exclue)
120,38 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 6 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 99,49 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 213-1127
- Référence fabricant:
- 3RU2116-1GB1
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 6.3A | |
| Relay Contact Current | 6.3A | |
| Series | SIRIUS 3RU2 | |
| Mount Type | Stand Alone | |
| Power Rating | 2.2kW | |
| Pole and Throw Configuration | 3P | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP20 | |
| Reset Method | Automatic & Manual | |
| Adjustable Current Range | 4.5 → 6.3 A | |
| Number of Auxiliary Contacts | 2 | |
| Minimum Operating Temperature | -40°C | |
| Width | 45mm | |
| Maximum Operating Temperature | 70°C | |
| Length | 76mm | |
| Contact Voltage | 690V | |
| Depth | 70mm | |
| Standards/Approvals | CE, UL, IEC 81346-2, IEC 61508, IEC 60529, CCC, IEC 60068-2-27, EAC, CSA | |
| Control Voltage | 690V ac | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 6.3A | ||
Relay Contact Current 6.3A | ||
Series SIRIUS 3RU2 | ||
Mount Type Stand Alone | ||
Power Rating 2.2kW | ||
Pole and Throw Configuration 3P | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP20 | ||
Reset Method Automatic & Manual | ||
Adjustable Current Range 4.5 → 6.3 A | ||
Number of Auxiliary Contacts 2 | ||
Minimum Operating Temperature -40°C | ||
Width 45mm | ||
Maximum Operating Temperature 70°C | ||
Length 76mm | ||
Contact Voltage 690V | ||
Depth 70mm | ||
Standards/Approvals CE, UL, IEC 81346-2, IEC 61508, IEC 60529, CCC, IEC 60068-2-27, EAC, CSA | ||
Control Voltage 690V ac | ||
- Pays d'origine :
- DE

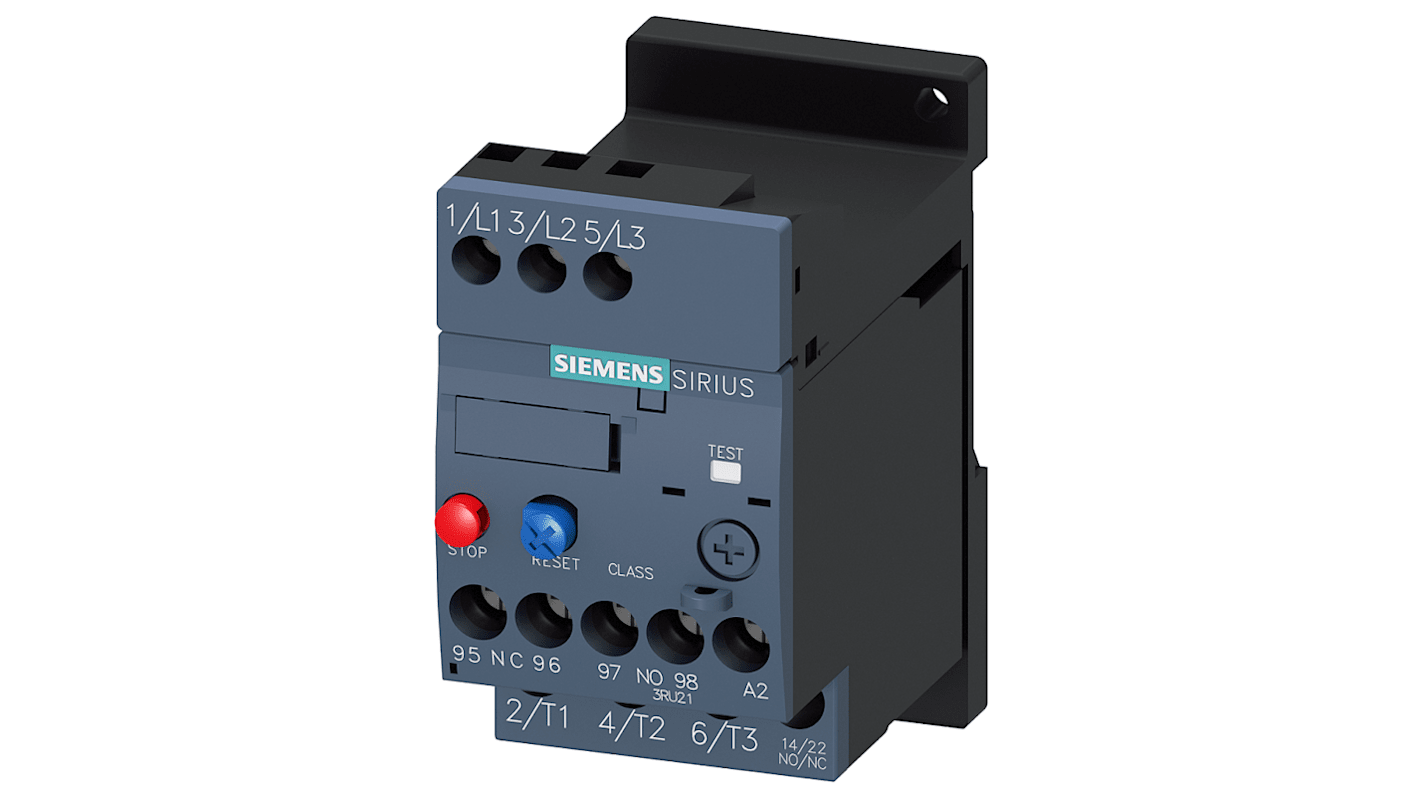

Siemens Thermal Overload Relay, 3P Pole Configuration, 690V Contact Voltage Rating - 3RU2116-1GB1
This thermal overload relay effectively protects industrial motors, optimising performance while safeguarding against overload conditions. Its compact dimensions of 45mm width, 70mm depth, and 76mm length allow for efficient operation in temperature ranges from -40 to +70°C. The relay includes both manual and automatic reset functions, making it suitable for various applications.
Features & Benefits
• Supports motor current ratings from 4.5A to 6.3A
• Automatic reset function enhances convenience
• Contact voltage rating up to 690V for compatibility
• Thermal overload protection ensures longevity
• Designed for 3-phase applications, providing robust protection
Applications
• Protects electric motors in industrial settings
• Ideal for requiring reliable overload protection
• Utilised in direct contactor configurations for streamlined control
• Suitable for environments with varying temperature conditions
Can it handle electrical circuits with a maximum operating temperature of 70°C?
Yes, it operates effectively in environments up to 70°C.
Is it suitable for mounting in any position?
Yes, it allows flexible mounting in various orientations.
Will it provide protection for auxiliary circuits?
Yes, it is designed to protect both main and auxiliary circuits.
Is it compatible with 3-phase AC motors?
Yes, it is specifically designed for 3-phase applications.
