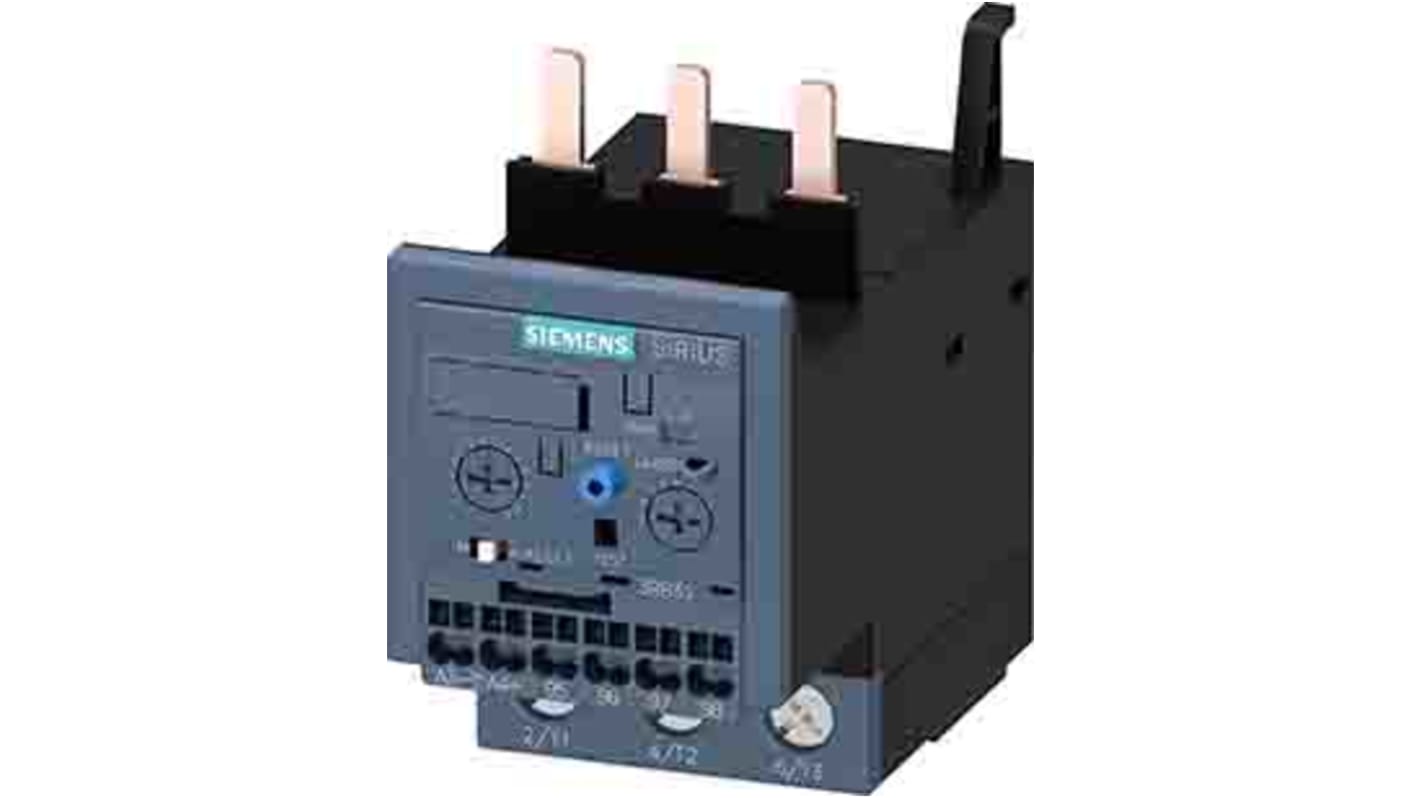

Siemens, 3RB Overload Relay 1 NO/1 NC, 12.5A, 50 A F.L.C, 50A Contact Rating 3
- N° de stock RS:
- 211-3663
- Référence fabricant:
- 3RB3133-4UD0
- Fabricant:
- Siemens
Sous-total (1 unité)*
338,35 €
(TVA exclue)
409,40 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 02 octobre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 338,35 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 211-3663
- Référence fabricant:
- 3RB3133-4UD0
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| FLC Motor Rating | 12.5, 50A | |
| Product Type | Overload Relay | |
| Relay Contact Current | 50A | |
| Mount Type | Direct | |
| Series | 3RB | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Spring Loaded | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 55mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 12.5 → 50 A | |
| Number of Auxiliary Contacts | 2 | |
| Maximum Operating Temperature | 60°C | |
| Length | 99mm | |
| Contact Voltage | 690V | |
| Standards/Approvals | IEC 61000-4-3, IEC 61000-4-4, UL Approved, IEC 81346-2, IEC 61000-4-6, CCC approved, CE Approved, CSA Approved, EAC Approved, IEC 60068-2-27, IEC 60529, IEC 61000-4-2, IEC 61000-4-5 | |
| Depth | 104mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
FLC Motor Rating 12.5, 50A | ||
Product Type Overload Relay | ||
Relay Contact Current 50A | ||
Mount Type Direct | ||
Series 3RB | ||
Pole and Throw Configuration 3 | ||
Terminal Type Spring Loaded | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 55mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 12.5 → 50 A | ||
Number of Auxiliary Contacts 2 | ||
Maximum Operating Temperature 60°C | ||
Length 99mm | ||
Contact Voltage 690V | ||
Standards/Approvals IEC 61000-4-3, IEC 61000-4-4, UL Approved, IEC 81346-2, IEC 61000-4-6, CCC approved, CE Approved, CSA Approved, EAC Approved, IEC 60068-2-27, IEC 60529, IEC 61000-4-2, IEC 61000-4-5 | ||
Depth 104mm | ||
- Pays d'origine :
- CZ
The Siemens SIRIUS 3RB series is a solid-state overload relay for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure which has a current rating up to 50 A. It has manual or automatic reset switch functionality. It has a size S2. It can be mounted with contactor mounting. The type of electrical connection for main circuit and for auxiliary circuit is through screw type terminal. Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. It has low heat loss which makes it energy-efficient and help to reduce the temperature rise in the control cabinet.
Ambient operating temperature is -25 to +60 °C
Operating frequency is 50 to 60 Hz
Trip class is CLASS 5E, 10E, 20E and 30E adjustable
