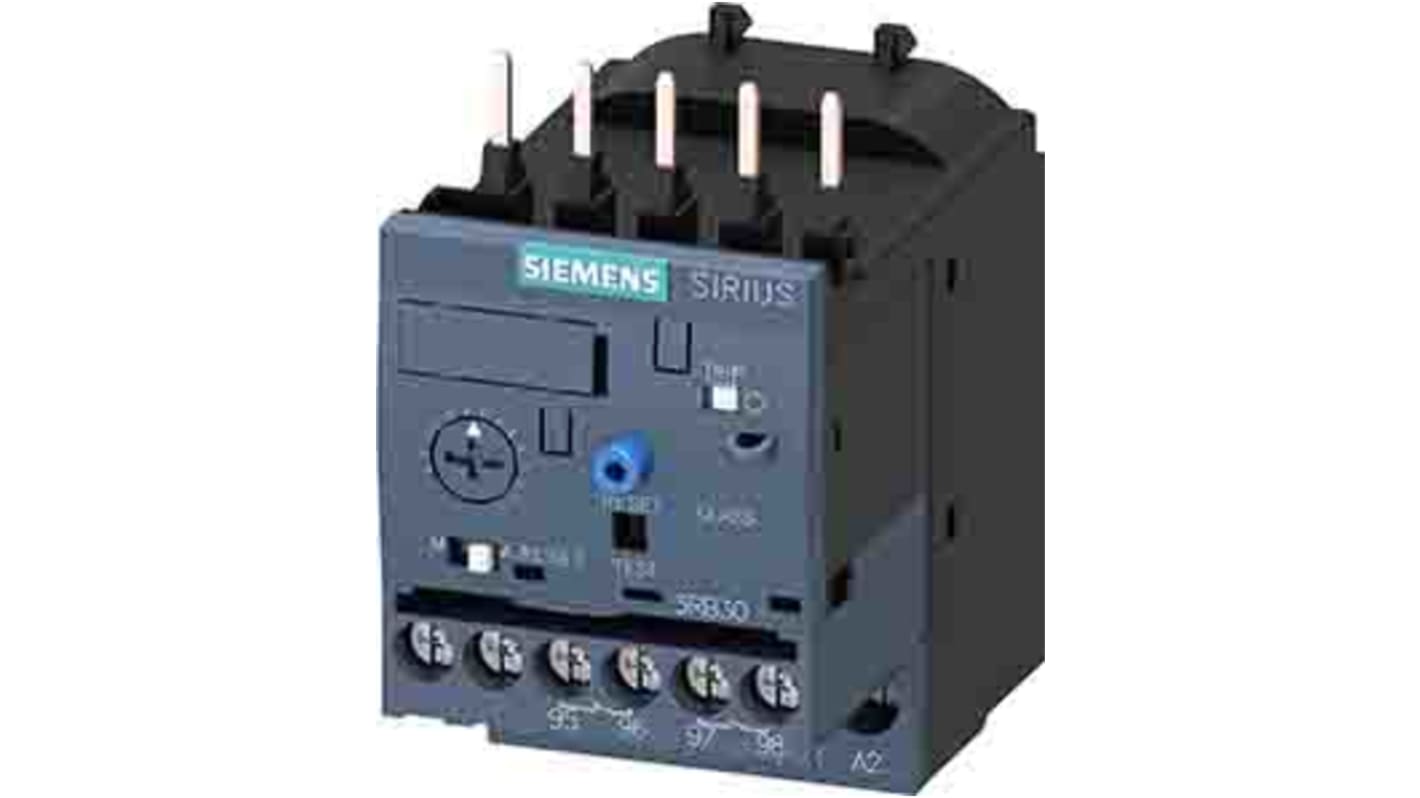

Siemens, 3RB3 Overload Relay 1 NO/1 NC, 0.1A, 0.4 A F.L.C, 400mA Contact Rating 3
- N° de stock RS:
- 211-3656
- Référence fabricant:
- 3RB3016-1RB0
- Fabricant:
- Siemens
Sous-total (1 unité)*
118,17 €
(TVA exclue)
142,99 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 24 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 118,17 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 211-3656
- Référence fabricant:
- 3RB3016-1RB0
- Fabricant:
- Siemens
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Siemens | |
| Product Type | Overload Relay | |
| FLC Motor Rating | 0.1, 0.4A | |
| Relay Contact Current | 400mA | |
| Mount Type | Direct | |
| Series | 3RB3 | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP20 | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 0.1 → 0.4 A | |
| Number of Auxiliary Contacts | 2 | |
| Maximum Operating Temperature | 60°C | |
| Length | 79mm | |
| Contact Voltage | 690V | |
| Standards/Approvals | CCC approved, CE Approved, CSA Approved, EAC Approved, IEC 60068-2-27, IEC 60529, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 81346-2, UL Approved | |
| Depth | 73mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Siemens | ||
Product Type Overload Relay | ||
FLC Motor Rating 0.1, 0.4A | ||
Relay Contact Current 400mA | ||
Mount Type Direct | ||
Series 3RB3 | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP20 | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 0.1 → 0.4 A | ||
Number of Auxiliary Contacts 2 | ||
Maximum Operating Temperature 60°C | ||
Length 79mm | ||
Contact Voltage 690V | ||
Standards/Approvals CCC approved, CE Approved, CSA Approved, EAC Approved, IEC 60068-2-27, IEC 60529, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 81346-2, UL Approved | ||
Depth 73mm | ||
- Pays d'origine :
- CZ
The Siemens SIRIUS 3RB series is a manual-automatic reset solid-state overload relay for inverse-time delayed protection of loads with normal and heavy starting against excessive temperature rises due to overload, phase unbalance or phase failure. It has a size S00. It can be mounted with contactor mounting. The type of electrical connection for main circuit and for auxiliary circuit is through screw-type terminal. Due to the wide current setting ranges and various tripping characteristics, complete series of motors are covered with just a few types. It has low heat loss which makes it energy-efficient and help to reduce the temperature rise in the control cabinet.
Ambient operating temperature is -25 to +60 °C
Operating frequency is 50 to 60 Hz
Trip class is CLASS 10E
