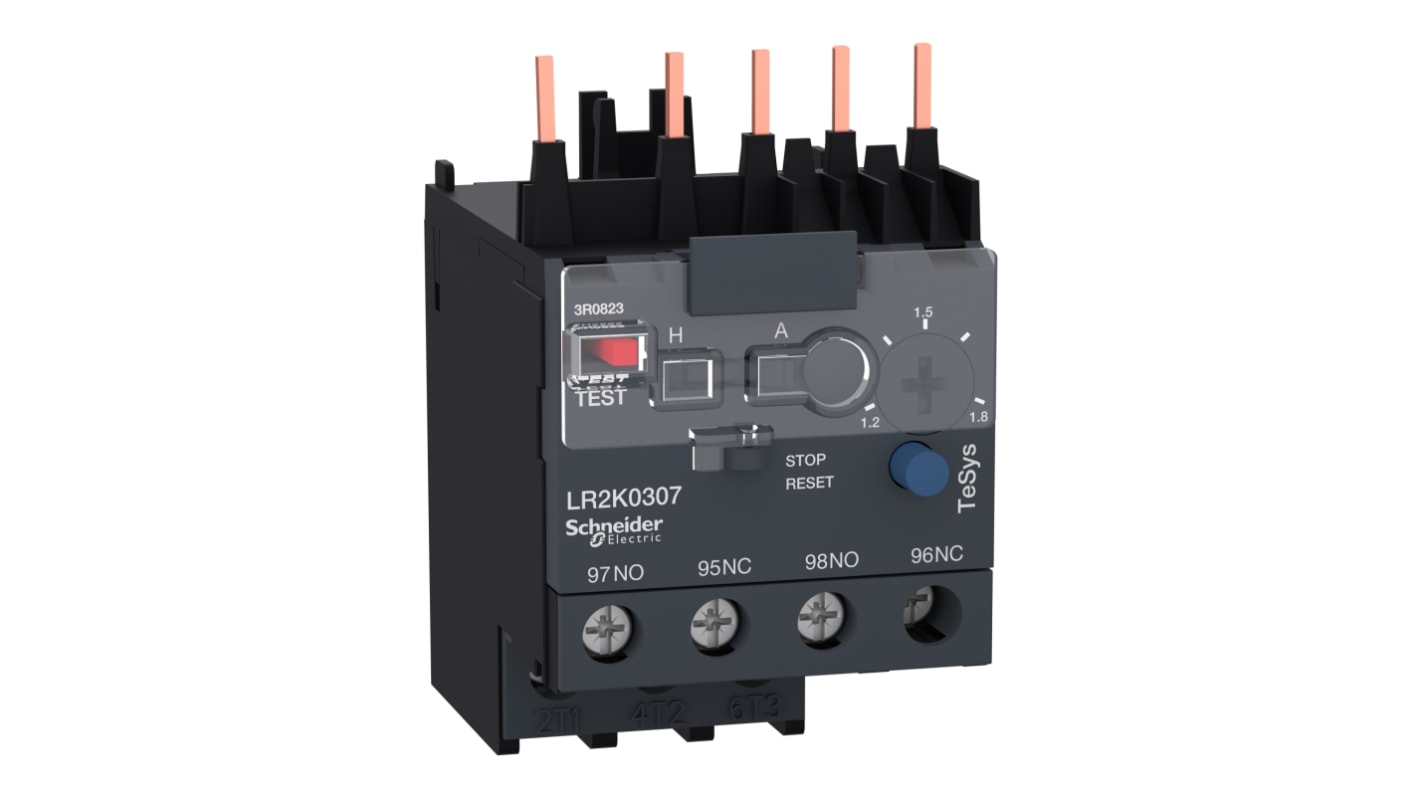

Schneider Electric, TeSyS LR Thermal Overload Relay 1 NO/1 NC, Trip Dial: 1.2 → 1.8 A, 1.2A, 1.8 A F.L.C, 1.8A Contact
- N° de stock RS:
- 758-945
- Numéro d'article Distrelec:
- 301-12-063
- Référence fabricant:
- LR2K0307
- Fabricant:
- Schneider Electric
Bénéficiez d'une remise sur les achats en gros
Ajoutez 10 de plus pour économiser 21,50 €
Consulter les options de prix de grosSous-total (1 unité)*
52,54 €
(TVA exclue)
63,57 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 10 unité(s) expédiée(s) à partir du 12 novembre 2026
- Plus 63 unité(s) expédiée(s) à partir du 12 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 1 - 9 | 52,54 € | - |
| 10 - 14 | 50,39 € | 21,50 € |
| 15 + | 48,23 € | 64,65 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 758-945
- Numéro d'article Distrelec:
- 301-12-063
- Référence fabricant:
- LR2K0307
- Fabricant:
- Schneider Electric
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 1.2A, 1.8A | |
| Relay Contact Current | 1.8A | |
| Mount Type | DIN Rail | |
| Series | TeSyS LR | |
| Power Rating | 100W | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Automatic & Manual | |
| IP Rating | IP2X | |
| Minimum Operating Temperature | -20°C | |
| Number of Auxiliary Contacts | 2 | |
| Width | 45mm | |
| Adjustable Current Range | 1.2 → 1.8 A | |
| Maximum Operating Temperature | 55°C | |
| Length | 116mm | |
| Contact Voltage | 690V ac | |
| Standards/Approvals | CSA/IEC 60947, NFC 63-650, UKCA, VDE 0660, BS 4941, UL | |
| Depth | 65mm | |
| Control Voltage | 250V dc, 690V dc | |
| Sélectionner tout | ||
|---|---|---|
Marque Schneider Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 1.2A, 1.8A | ||
Relay Contact Current 1.8A | ||
Mount Type DIN Rail | ||
Series TeSyS LR | ||
Power Rating 100W | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Automatic & Manual | ||
IP Rating IP2X | ||
Minimum Operating Temperature -20°C | ||
Number of Auxiliary Contacts 2 | ||
Width 45mm | ||
Adjustable Current Range 1.2 → 1.8 A | ||
Maximum Operating Temperature 55°C | ||
Length 116mm | ||
Contact Voltage 690V ac | ||
Standards/Approvals CSA/IEC 60947, NFC 63-650, UKCA, VDE 0660, BS 4941, UL | ||
Depth 65mm | ||
Control Voltage 250V dc, 690V dc | ||
Statut RoHS : Exempté
- Pays d'origine :
- CZ
Schneider Electric LR2K Series Thermal Overload Relay, 1.8A Contact Current Rating, 100W - LR2K0307
This thermal overload relay is designed for motor protection, capable of handling motor ratings from 1.2A to 1.8A. With a compact size of 45mm in width, 65mm in depth, and 116mm in length, it easily fits underneath contactors. The device ensures safety through its automatic and manual reset features, making it suitable for various industrial applications.
Features & Benefits
• Automatic and manual reset options enhance usability
• Compatible with multiple contactor types for flexibility
• 3P configuration supports three-phase systems
• Integrated phase failure sensitivity for added safety
• High insulation voltage rating protects circuits under stress
• Supports screw clamp terminals for secure connections
Applications
• Used for motor overload protection in industrial environments
• Ideal for applications in automation and electrical systems
• Suitable for environments with operating temperatures from -20°C to +55°C
Can it be used with solid and flexible cables?
Yes, it supports both solid and flexible cable connections.
Will it provide indication when tripped?
Yes, it includes a yellow trip indicator for visibility.
Is it suitable for high voltage systems?
Yes, it supports operational voltage up to 690V.
Can the reset method be altered?
Yes, it allows for both manual and automatic resets.
Does it comply with international standards?
Yes, it conforms to IEC 60947 and other global standards.
