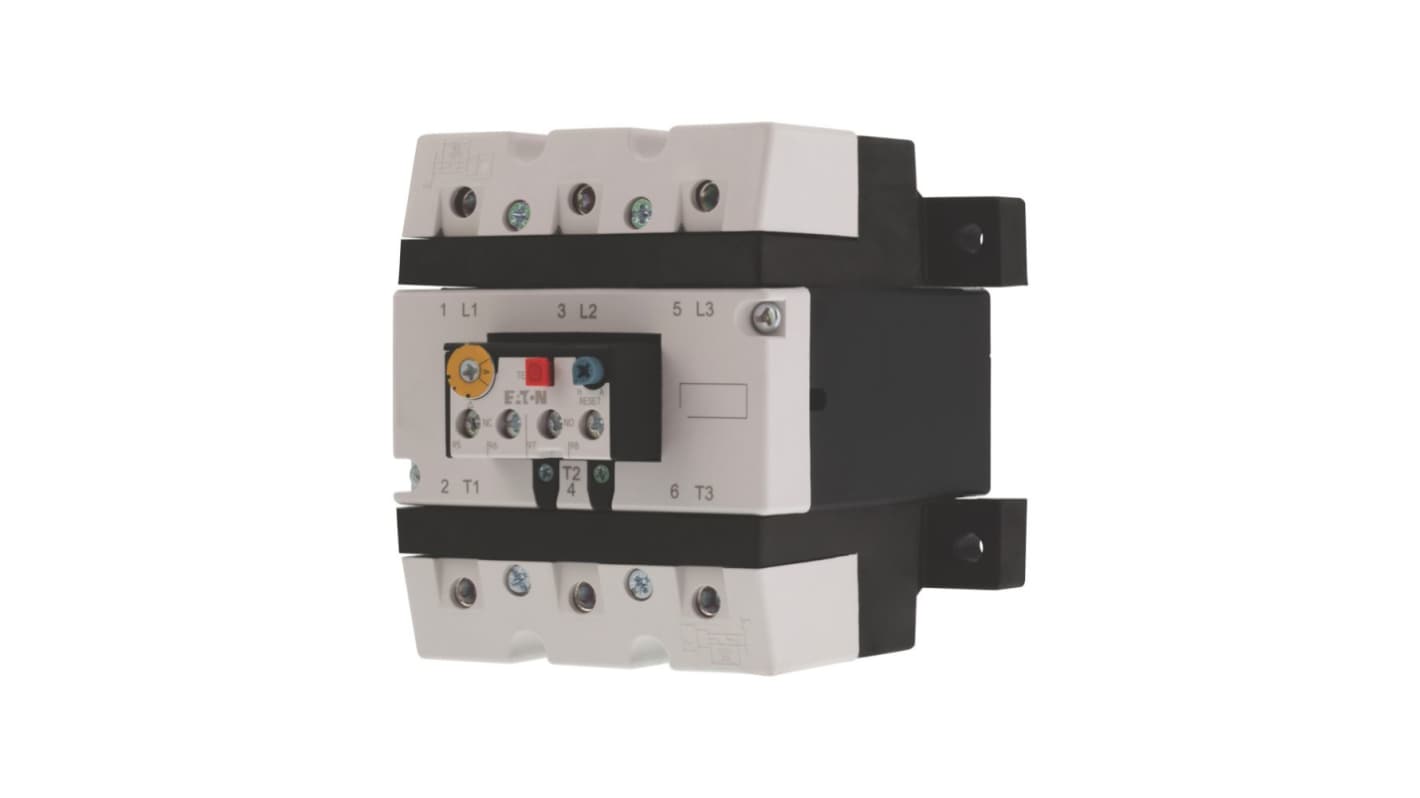

Eaton, ZB Overload Relay 1 NO/1 NC, 6A Contact Rating, 1000V 1P
- N° de stock RS:
- 258-724
- Référence fabricant:
- 278469 ZB150-70/KK
- Fabricant:
- Eaton
Sous-total (1 unité)*
234,00 €
(TVA exclue)
283,14 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Stocké-e par le fabricant
- Prêt à être expédié à partir du 25 septembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 234,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 258-724
- Référence fabricant:
- 278469 ZB150-70/KK
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Product Type | Overload Relay | |
| Relay Contact Current | 6A | |
| Series | ZB | |
| Pole and Throw Configuration | 1P | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| IP Rating | IP00 | |
| Reset Method | Push Button | |
| Width | 118mm | |
| Minimum Operating Temperature | -25°C | |
| Adjustable Current Range | 50 → 70 A | |
| Number of Auxiliary Contacts | 2 | |
| Length | 134mm | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | IEC/EN 60947-4-1 UL 60947-4-1 VDE 0660 CSA-C22.2 No. 60947-4-1-14 CSA Class No.:3211-03 CSA 012528 IEC/EN 60947 CE UL E29184 UL NKCR CSA UL | |
| Depth | 121mm | |
| Control Voltage | 1000V | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Product Type Overload Relay | ||
Relay Contact Current 6A | ||
Series ZB | ||
Pole and Throw Configuration 1P | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
IP Rating IP00 | ||
Reset Method Push Button | ||
Width 118mm | ||
Minimum Operating Temperature -25°C | ||
Adjustable Current Range 50 → 70 A | ||
Number of Auxiliary Contacts 2 | ||
Length 134mm | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals IEC/EN 60947-4-1 UL 60947-4-1 VDE 0660 CSA-C22.2 No. 60947-4-1-14 CSA Class No.:3211-03 CSA 012528 IEC/EN 60947 CE UL E29184 UL NKCR CSA UL | ||
Depth 121mm | ||
Control Voltage 1000V | ||
- Pays d'origine :
- DE
The Eaton thermal overload relay, designed for robust and reliable motor protection, delivers top-tier performance for various industrial applications. With advanced technology, it ensures effective overload protection while allowing for precise current adjustments. Built to meet stringent safety standards, the relay is a trusted choice for electrical engineers and technicians seeking excellence in their systems. Its compact design allows for separate mounting, ensuring versatility in installations without compromising on performance. This product not only enhances operational safety but also optimises the lifecycle of connected equipment by preventing unnecessary downtime through meticulous overload management.
Features a reset pushbutton for manual or automatic operation
Incorporates phase-failure sensitivity for enhanced protection
Offers a test/off button for quick system checks
Utilises a trip-free release mechanism for reliable operation
Accommodates multiple terminal capacities for adaptable wiring options
Engineered with a high degree of protection against environmental factors
Supports a broad range of ambient operating temperatures for flexible use
Certified to meet international standards ensuring compliance and safety
Provides a variety of auxiliary contact options for comprehensive functionality
