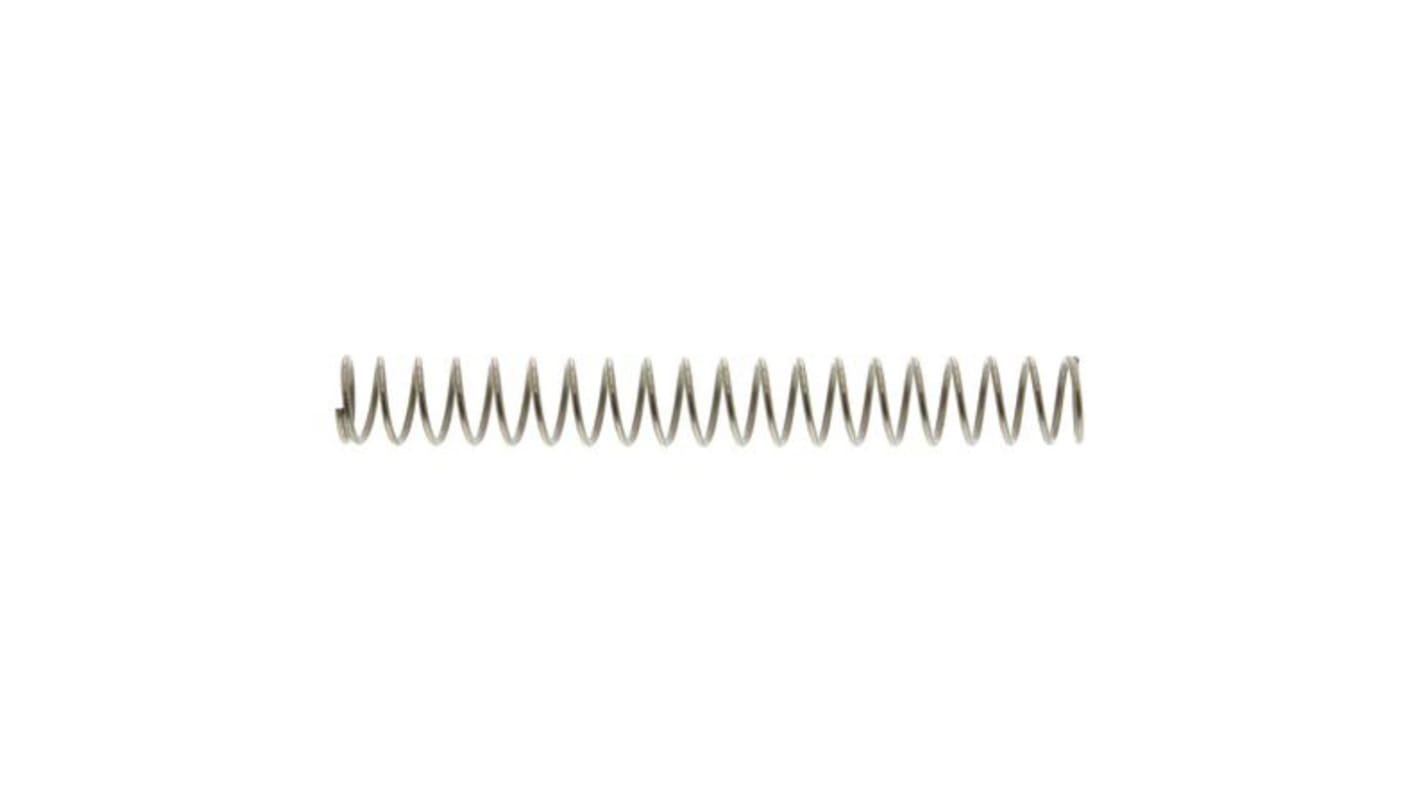

RS PRO Stainless Steel Compression Spring, 35.5mm x 4.4mm, 0.18N/mm

Voir la catégorie

Sous-total (1 paquet de 10 unités)*

5,92 €

(TVA exclue)

7,16 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
En stock
  • 330 unité(s) prête(s) à être expédiée(s)
  • Plus 560 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
le paquet*
10 +0,592 €5,92 €

*Prix donné à titre indicatif

N° de stock RS:
821-302
Fabricant:
RS PRO
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

RS PRO

Outside Diameter

4.4mm

Wire Diameter

0.4mm

Free Length

35.5mm

Minimum Working Length

11.4mm

Load at Minimum Working Length

4.37N

Material

Stainless Steel

Spring Rate

0.18N/mm

Ends

Closed (Square)/Unground

Pays d'origine :
GB

RS PRO Stainless Steel Compression Springs


RS PRO range of compression springs manufactured from stainless steel which come in various sizes and lengths and with a closed not ground end type. Compression springs are very popular as they can store a large amount of energy in a small space making them ideal for a great range of uses.

These RS PRO compression springs also referred to as coil springs have varying degrees of stiffness which is also known as spring rate.

Coiled springs are designed so they can push back to the springs original height when they are compressed. These springs are used to keep components from meeting.

RS PRO have a great range of compression springs with wire diameters from 0.2 mm to 2.2 mm and spring rates from 0.06 N/mm to 22.56 N/mm.

Features and Benefits:


Coil spring design for strength and elasticity
Stainless steel material - good corrosion and rust resistance
Material to DIN 17224 No.1, 4310 or BS2056 EN58A
Ends are squared and unground
Appearance: brown/bronze
Made with a right hand helix
Spring can be directly put on the rod products or put into the tube products

Typical Applications:


Compression springs are a very popular spring and can be used in a number of different industries. This type of spring can be used in
Ball point pens
Vehicles
Mobile phones
Valves
Electrical switches

Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

The load at minimum working length is the load required to compress the spring to that length. All dimensions and forces to conform to DIN 2095 (grade 2).
