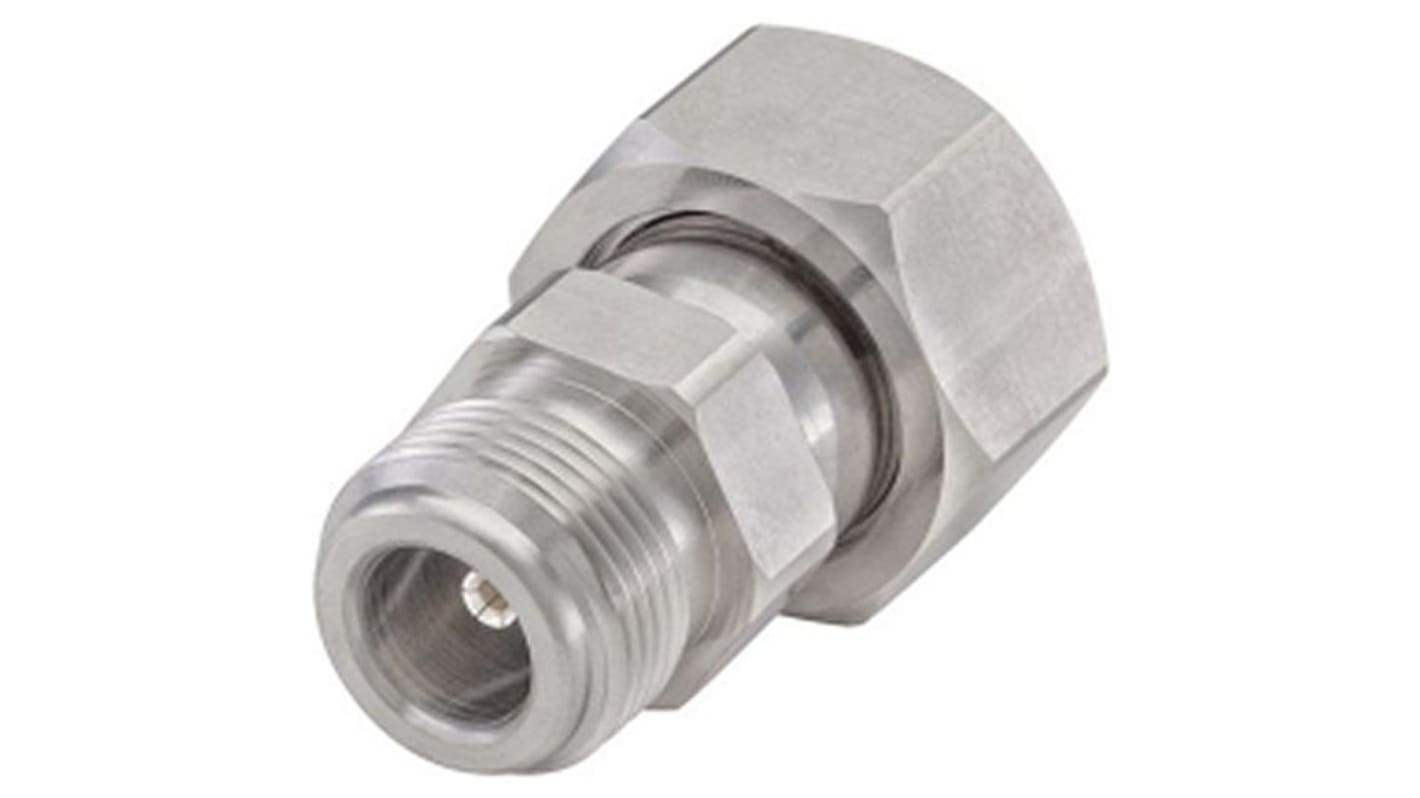

Rosenberger Straight 50 Ω Coaxial Adapter 12GHz Female Male
- N° de stock RS:
- 136-7729
- Numéro d'article Distrelec:
- 304-21-990
- Référence fabricant:
- 53K164-S00N1
- Fabricant:
- Rosenberger
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
60,59 €
(TVA exclue)
73,31 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 114 unité(s) prête(s) à être expédiée(s)
- Plus 50 unité(s) expédiée(s) à partir du 18 novembre 2026
- Plus 150 unité(s) expédiée(s) à partir du 09 décembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 60,59 € |
| 5 - 9 | 54,53 € |
| 10 - 19 | 49,56 € |
| 20 - 49 | 45,44 € |
| 50 + | 42,90 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 136-7729
- Numéro d'article Distrelec:
- 304-21-990
- Référence fabricant:
- 53K164-S00N1
- Fabricant:
- Rosenberger
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Rosenberger | |
| Product Type | Coaxial Adapter | |
| Adapter Type | N Jack to 4.3-10 Plug | |
| Converts From Type | Type N | |
| Converts to Type | 4.3-10 | |
| Impedance | 50Ω | |
| Mount Type | Cable | |
| Orientation | Straight | |
| Polarity | Normal | |
| Operating Frequency | 12GHz | |
| Contact Plating | Silver over White Bronze | |
| Body Plating | White Bronze | |
| Converts to Gender - Contact | Male | |
| Converts From Gender - Connector | Female | |
| Converts From Gender - Contact | Female | |
| Coupling Style | Threaded | |
| Converts to Gender - Connector | Male | |
| Cable Type | Coaxial | |
| Contact Material | Brass (Outer Contact), Beryllium Copper (Centre Contact) | |
| Series | N | |
| Standards/Approvals | No | |
| Length | 36.2mm | |
| Sélectionner tout | ||
|---|---|---|
Marque Rosenberger | ||
Product Type Coaxial Adapter | ||
Adapter Type N Jack to 4.3-10 Plug | ||
Converts From Type Type N | ||
Converts to Type 4.3-10 | ||
Impedance 50Ω | ||
Mount Type Cable | ||
Orientation Straight | ||
Polarity Normal | ||
Operating Frequency 12GHz | ||
Contact Plating Silver over White Bronze | ||
Body Plating White Bronze | ||
Converts to Gender - Contact Male | ||
Converts From Gender - Connector Female | ||
Converts From Gender - Contact Female | ||
Coupling Style Threaded | ||
Converts to Gender - Connector Male | ||
Cable Type Coaxial | ||
Contact Material Brass (Outer Contact), Beryllium Copper (Centre Contact) | ||
Series N | ||
Standards/Approvals No | ||
Length 36.2mm | ||
- Pays d'origine :
- DE
Rosenberger 4.3-10 RF Coaxial Cable Adapters
4.3- 10 RF coaxial cable adapters with a compact, lightweight design and interface according to IEC 61169-54. The footprint of these 4.3- 10 adapters is 40% smaller than 7-16 connectors making them ideal for use in applications where space is limited. These 4.3-10 coaxial cable adapters have a high electrical performance and a low PIM (Passive Intermodulation) independent of torque. The electrical and mechanical planes of these RF coaxial cable adapters have been separated resulting in a low coupling torque for easy connection. The body of these coaxial cable adapters has a white bronze plating that provides protection against oxidization.;These RF coaxial cable adapters are available with In-Series or Inter-Series configurations and enable the connection of different RF interfaces.
Features and Benefits
• Interface according to IEC 61169-54
• Low PIM and high electrical performance
• Compact and lightweight design
• Small foot print
• Low coupling torque
• Easy installation
• Outstanding insertion/return loss
• White bronze plated body for protection against oxidization
Product Application Information
These 4.3-10 RF coaxial cable connectors are designed to meet the increasing performance needs of mobile communications applications. Their compact design means that they are able to support the ongoing space reduction requirements of infrastructure equipment
Rosenberger 4.2-10 RF Coaxial Connectors
