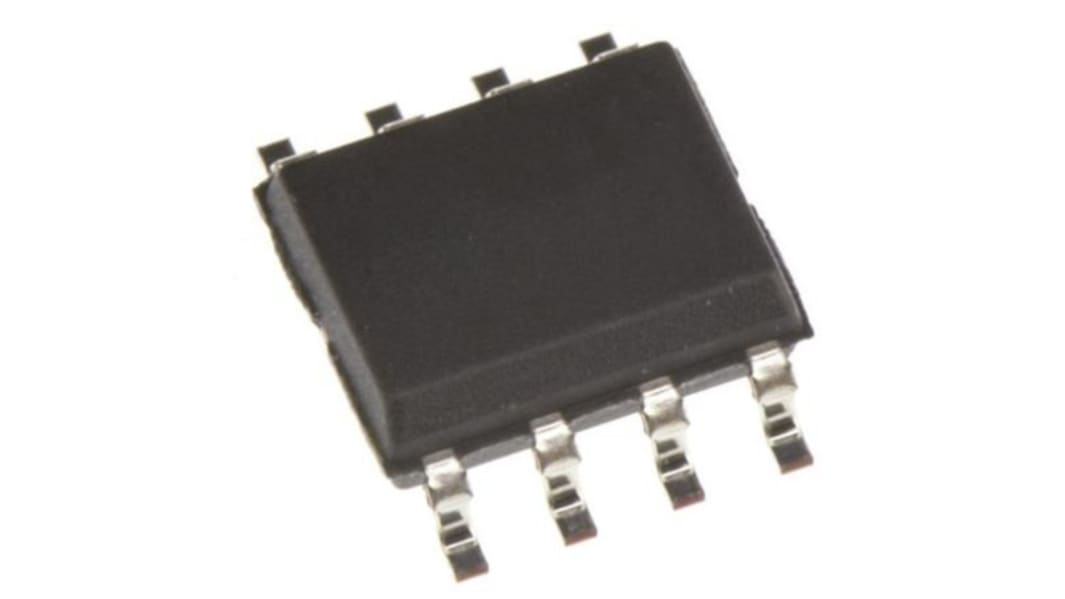

Renesas Electronics 512MLF Clock Buffer 8-Pin SOIC
- N° de stock RS:
- 217-7838
- Référence fabricant:
- 512MLF
- Fabricant:
- Renesas Electronics
Offre groupée disponible
Sous-total (1 paquet de 5 unités)*
21,03 €
(TVA exclue)
25,445 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 5 | 4,206 € | 21,03 € |
| 10 - 20 | 3,782 € | 18,91 € |
| 25 - 45 | 3,568 € | 17,84 € |
| 50 - 95 | 3,492 € | 17,46 € |
| 100 + | 3,08 € | 15,40 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 217-7838
- Référence fabricant:
- 512MLF
- Fabricant:
- Renesas Electronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Renesas Electronics | |
| Product Type | Clock Buffer | |
| Maximum Input Frequency | 50MHz | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Pin Count | 8 | |
| Number of Outputs | 5 | |
| Minimum Supply Voltage | 3.3V | |
| Maximum Supply Voltage | 5V | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Width | 4 mm | |
| Series | 512MLF | |
| Standards/Approvals | No | |
| Height | 1.75mm | |
| Length | 5mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Renesas Electronics | ||
Product Type Clock Buffer | ||
Maximum Input Frequency 50MHz | ||
Mount Type Surface | ||
Package Type SOIC | ||
Pin Count 8 | ||
Number of Outputs 5 | ||
Minimum Supply Voltage 3.3V | ||
Maximum Supply Voltage 5V | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Width 4 mm | ||
Series 512MLF | ||
Standards/Approvals No | ||
Height 1.75mm | ||
Length 5mm | ||
Automotive Standard No | ||
The Renesas Electronics IDT512 is the most cost effective way to generate a high quality, high frequency clock output and a reference clock from a lower frequency crystal or clock input, and is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked-Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 200 MHz. With a reference output, this chip plus an inexpensive crystal can replace two oscillators.
Input crystal frequency of 5 - 27 MHz
Input clock frequency of 2 - 50 MHz
Output clock frequencies up to 200 MHz
Compatible with all popular CPUs
Duty cycle of 45/55 up to 200 MHz
Mask option for 9 selectable frequencies
Operating voltages of 3.0 to 5.5 V
Industrial temperature version available
Advanced, low power CMOS process
