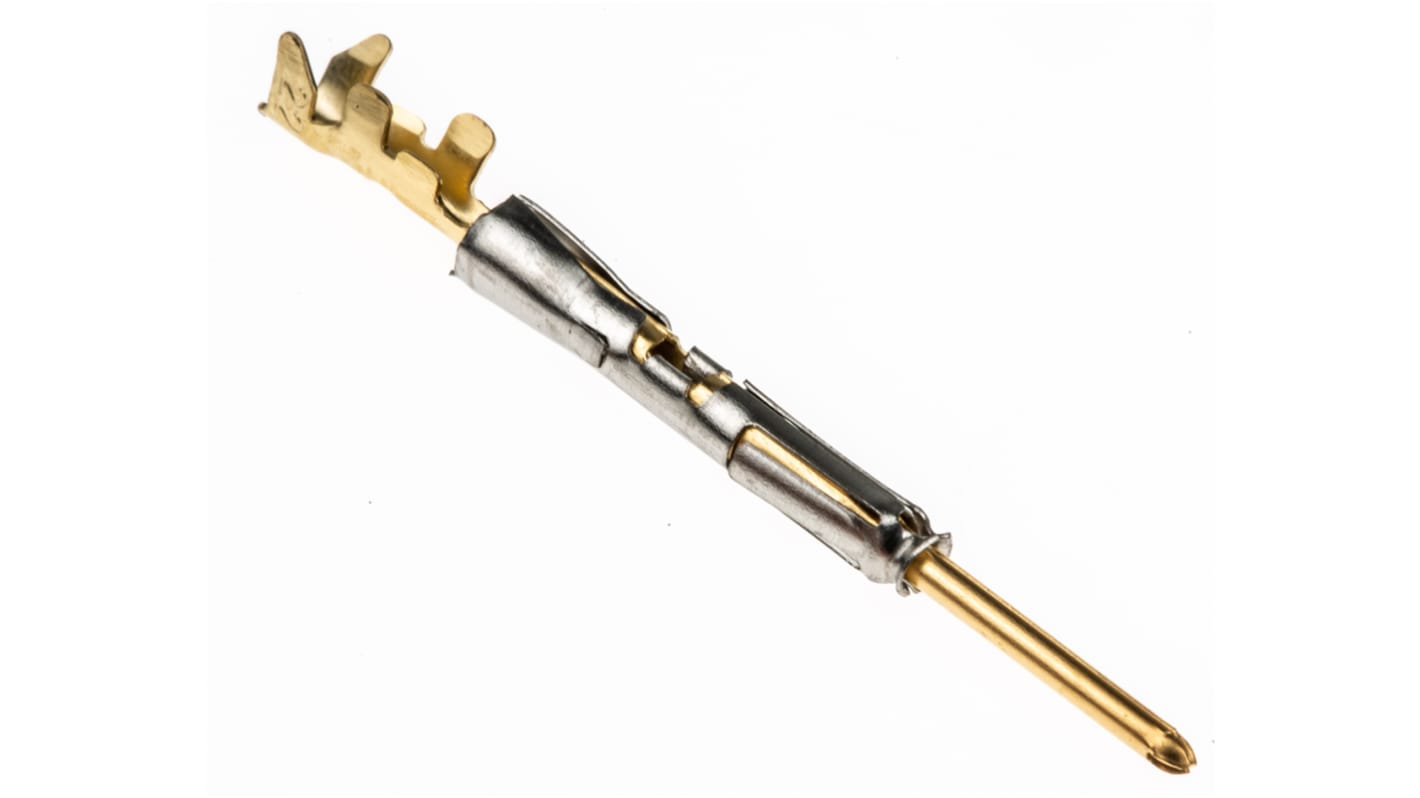

Souriau Sunbank by Eaton Male Crimp Circular Connector Contact, Contact Size 20 AWG, Wire Size 20AWG, 22 AWG
- N° de stock RS:
- 233-2703
- Numéro d'article Distrelec:
- 304-40-812
- Référence fabricant:
- SM20WL3S26
- Fabricant:
- Souriau Sunbank by Eaton
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 50 unités)*
62,60 €
(TVA exclue)
75,75 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 500 unité(s) prête(s) à être expédiée(s)
- Plus 1 900 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 50 - 200 | 1,252 € | 62,60 € |
| 250 - 1200 | 1,148 € | 57,40 € |
| 1250 - 2450 | 1,046 € | 52,30 € |
| 2500 - 4950 | 0,942 € | 47,10 € |
| 5000 + | 0,838 € | 41,90 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 233-2703
- Numéro d'article Distrelec:
- 304-40-812
- Référence fabricant:
- SM20WL3S26
- Fabricant:
- Souriau Sunbank by Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Souriau Sunbank by Eaton | |
| Product Type | Circular Connector Contact | |
| Gender | Male | |
| Contact Size | 20 AWG | |
| Current | 13A | |
| Wire Size | 20AWG, 22AWG | |
| Series | SEALOK | |
| For Use With | Plastic Sealok Connector | |
| Contact Type | Machined | |
| Length | 28.5mm | |
| Contact Plating | Gold over Nickel | |
| Voltage | 750V | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | 105°C | |
| Maximum Contact Resistance | 5mΩ | |
| Standards/Approvals | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Souriau Sunbank by Eaton | ||
Product Type Circular Connector Contact | ||
Gender Male | ||
Contact Size 20 AWG | ||
Current 13A | ||
Wire Size 20AWG, 22AWG | ||
Series SEALOK | ||
For Use With Plastic Sealok Connector | ||
Contact Type Machined | ||
Length 28.5mm | ||
Contact Plating Gold over Nickel | ||
Voltage 750V | ||
Termination Type Crimp | ||
Minimum Operating Temperature -40°C | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature 105°C | ||
Maximum Contact Resistance 5mΩ | ||
Standards/Approvals No | ||
Crimp Contacts
High quality stamped pins and sockets made from copper alloy and plated gold over nickel in contact area. Cable insulation range for 26//24 awg contacts is 0.89-1.57mm diameter, and for 22//20 awg contacts 1.17-2.08mm.
Sealok - Plastic
Intermateable, interchangeable and technically comparable with MIL-C-26482 series 1 connectors, the Sealok range offers a cheaper alternative to traditional metal types. Ideal for industrial application, these connectors have a metal bayonet coupling ring for security and durability and have a built-in interfacial seal to meet IP65 sealing requirements. Available in 6, 10, 19 and 26 way, in pin or socket configurations for cable or chassis mount. Available in standard shell sizes. Two styles of backshell are also offered.
