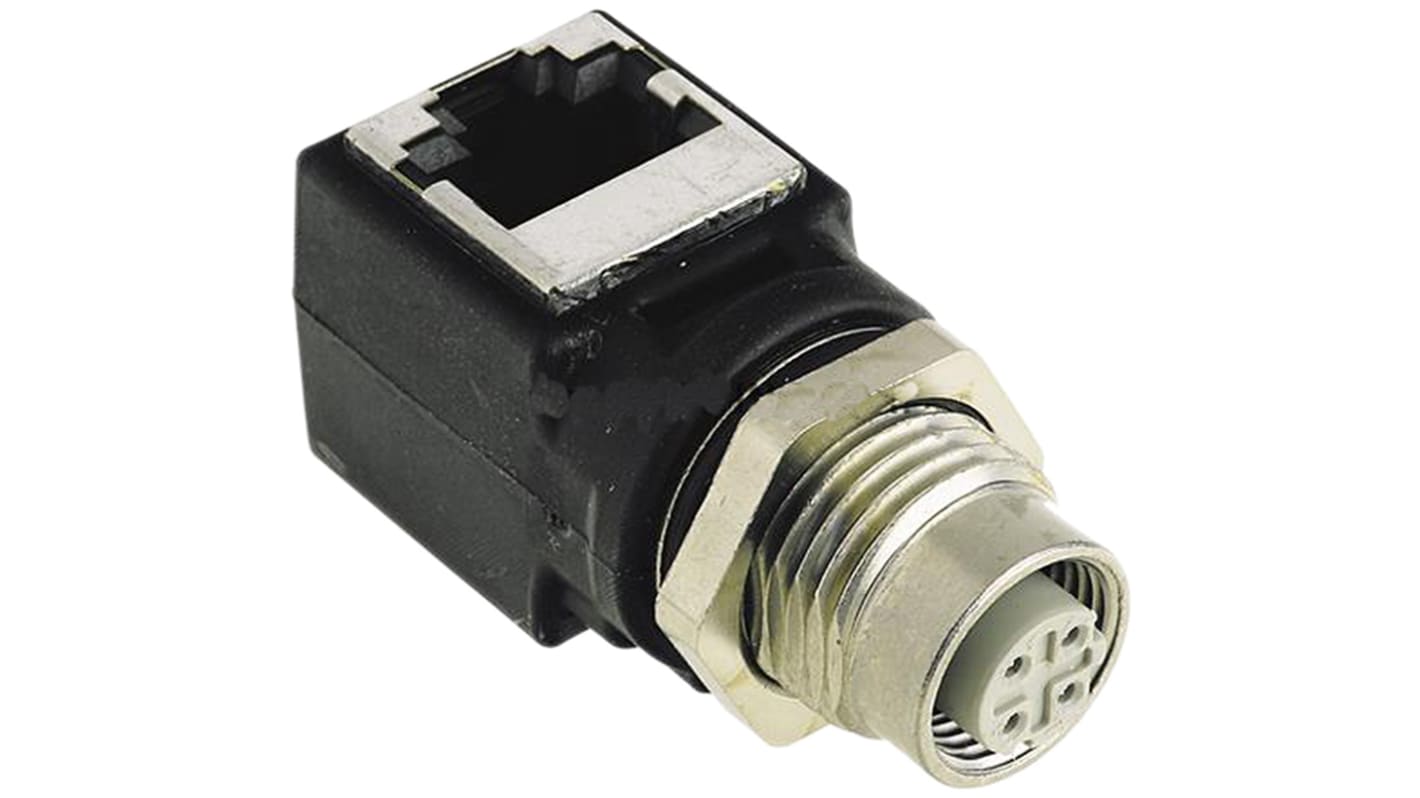

HARTING Right Angle Circular Connector Adapter 4 M12 Female 8 RJ45 Female
- N° de stock RS:
- 913-9185
- Référence fabricant:
- 21033814401
- Fabricant:
- HARTING
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
47,27 €
(TVA exclue)
57,20 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 58 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 47,27 € |
| 5 - 24 | 44,92 € |
| 25 + | 42,55 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 913-9185
- Référence fabricant:
- 21033814401
- Fabricant:
- HARTING
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | HARTING | |
| Product Type | Circular Connector Adapter | |
| Connector Size A | M12 | |
| Current | 4A | |
| Contact Gender A | Female | |
| Connector Gender A | Female | |
| Contact Gender B | Female | |
| Connector Gender B | Female | |
| Connector Size B | RJ45 | |
| Number of Contacts A | 4 | |
| Number of Ports A | 1 | |
| Number of Ports B | 1 | |
| Number of Contacts B | 8 | |
| Minimum Operating Temperature | -40°C | |
| IP Rating | IP67, IP65 | |
| Maximum Operating Temperature | 85°C | |
| Series | Circular Connectors M12 | |
| Voltage | 48V | |
| Standards/Approvals | No | |
| Orientation | Right Angle | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Length | 45.7mm | |
| Sélectionner tout | ||
|---|---|---|
Marque HARTING | ||
Product Type Circular Connector Adapter | ||
Connector Size A M12 | ||
Current 4A | ||
Contact Gender A Female | ||
Connector Gender A Female | ||
Contact Gender B Female | ||
Connector Gender B Female | ||
Connector Size B RJ45 | ||
Number of Contacts A 4 | ||
Number of Ports A 1 | ||
Number of Ports B 1 | ||
Number of Contacts B 8 | ||
Minimum Operating Temperature -40°C | ||
IP Rating IP67, IP65 | ||
Maximum Operating Temperature 85°C | ||
Series Circular Connectors M12 | ||
Voltage 48V | ||
Standards/Approvals No | ||
Orientation Right Angle | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Length 45.7mm | ||
Harting Circular Connectors M12 Series Circular Connector adaptor, M12 Connector size, RJ45 Connector size - 21033814401
This circular connector adaptor converts between an M12 Interface and an RJ45 connection, providing a Compact right‑angle link for industrial signal and data routing. It is intended for use in harsh environments where a Compact, sealed transition is required and supports low-voltage systems up to 48V.
Features & Benefits
• Gold over nickel contacts improve conductivity and corrosion resistance
• Female-to-female contact arrangement allows inline coupling of devices
• Rated for IP67 and IP65 protection for wet and dusty environments
• Handles 4A current for low-power signal transmission
• Operates from -40°C to +85°C for wide temperature exposure
• Female-to-female contact arrangement allows inline coupling of devices
• Rated for IP67 and IP65 protection for wet and dusty environments
• Handles 4A current for low-power signal transmission
• Operates from -40°C to +85°C for wide temperature exposure
**Applications**
• Suitable for industrial Ethernet installations requiring an M12 to RJ45 adaptor IP67
• Ideal for factory automation panels with limited rear clearance
• Used with sensor networks needing a female M12 to female RJ45 right angle
• Can be used for fieldbus segments operating at 48V
• Suitable for maintenance kits for IP65/IP67 waterproof connector adaptor replacements
• Ideal for factory automation panels with limited rear clearance
• Used with sensor networks needing a female M12 to female RJ45 right angle
• Can be used for fieldbus segments operating at 48V
• Suitable for maintenance kits for IP65/IP67 waterproof connector adaptor replacements
What materials are used for the electrical contacts?
Contacts are MADE from a copper alloy and finished with a gold plating over nickel to ensure low contact resistance and enhanced durability in corrosive atmospheres.
How does the connector cope with ingress and cleaning processes?
The mating interfaces are sealed to IP67 with continued IP65 classification under specific conditions, permitting temporary immersion and protection during high‑pressure washdowns.
What orientation and physical form factor should I expect when fitting into tight assemblies?
The adaptor has a right‑angle orientation with an overall length of 45.7mm, enabling connections where axial space is restricted.
Which current and voltage ranges are suitable for this adaptor?
It is rated for currents up to 4A and for systems operating at voltages up to 48V, making it appropriate for low‑power industrial signalling.
