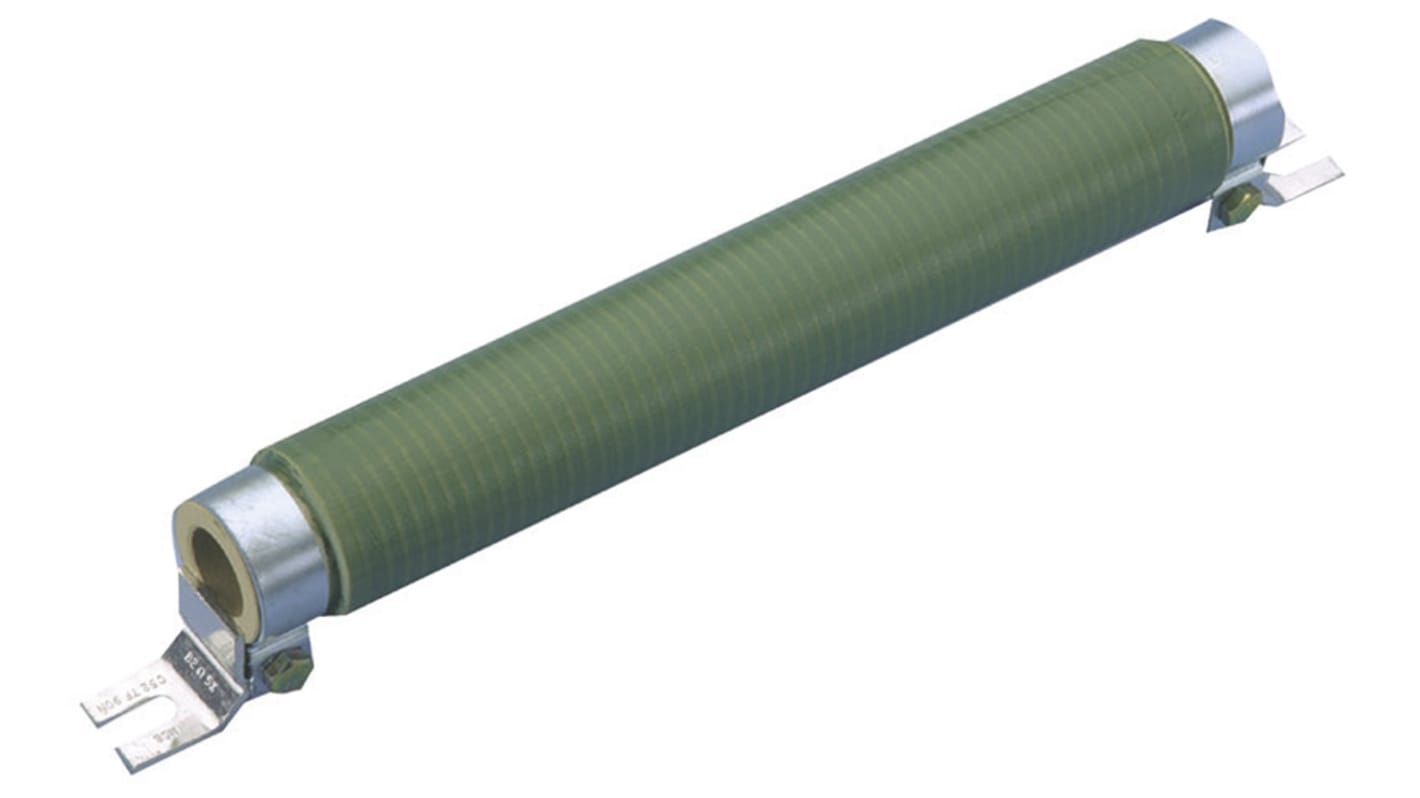

MCB C52TF1001JB, 1 kΩ 900 W Ceramic Chassis Mount Resistor ±5 % (±10 % for Rn < 3.3 Ω))
- N° de stock RS:
- 167-8667
- Référence fabricant:
- C52TF1001JB
- Fabricant:
- MCB
Indisponible
RS n'aura plus ce produit en stock.
- N° de stock RS:
- 167-8667
- Référence fabricant:
- C52TF1001JB
- Fabricant:
- MCB
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | MCB | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 1kΩ | |
| Power Rating | 900W | |
| Series | C52T | |
| Package/Case | Tubular | |
| Temperature Coefficient | 75 ppm/°C | |
| Tolerance | ±5 % (±10 % for Rn < 3.3 Ω)) | |
| Automotive Standard | No | |
| Technology | Ceramic | |
| Termination Style | TF or TN Terminal | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 450°C | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque MCB | ||
Product Type Chassis Mount Resistor | ||
Resistance 1kΩ | ||
Power Rating 900W | ||
Series C52T | ||
Package/Case Tubular | ||
Temperature Coefficient 75 ppm/°C | ||
Tolerance ±5 % (±10 % for Rn < 3.3 Ω)) | ||
Automotive Standard No | ||
Technology Ceramic | ||
Termination Style TF or TN Terminal | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 450°C | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- FR
Reinforced Power resistor - C52T Series 900W
Reinforced winding power resistors
Very high dissipation, energy absorption and overloads
Wide temperature range: -55°C to +450°C
Suitable for use in energy generation and transportation applications in the following functions:-Braking; Capacitor discharge; Capacitor pre-charge; chopper circuits; crowbar Circuits; Inrush limiting circuits; ballast resistors; load resistors
