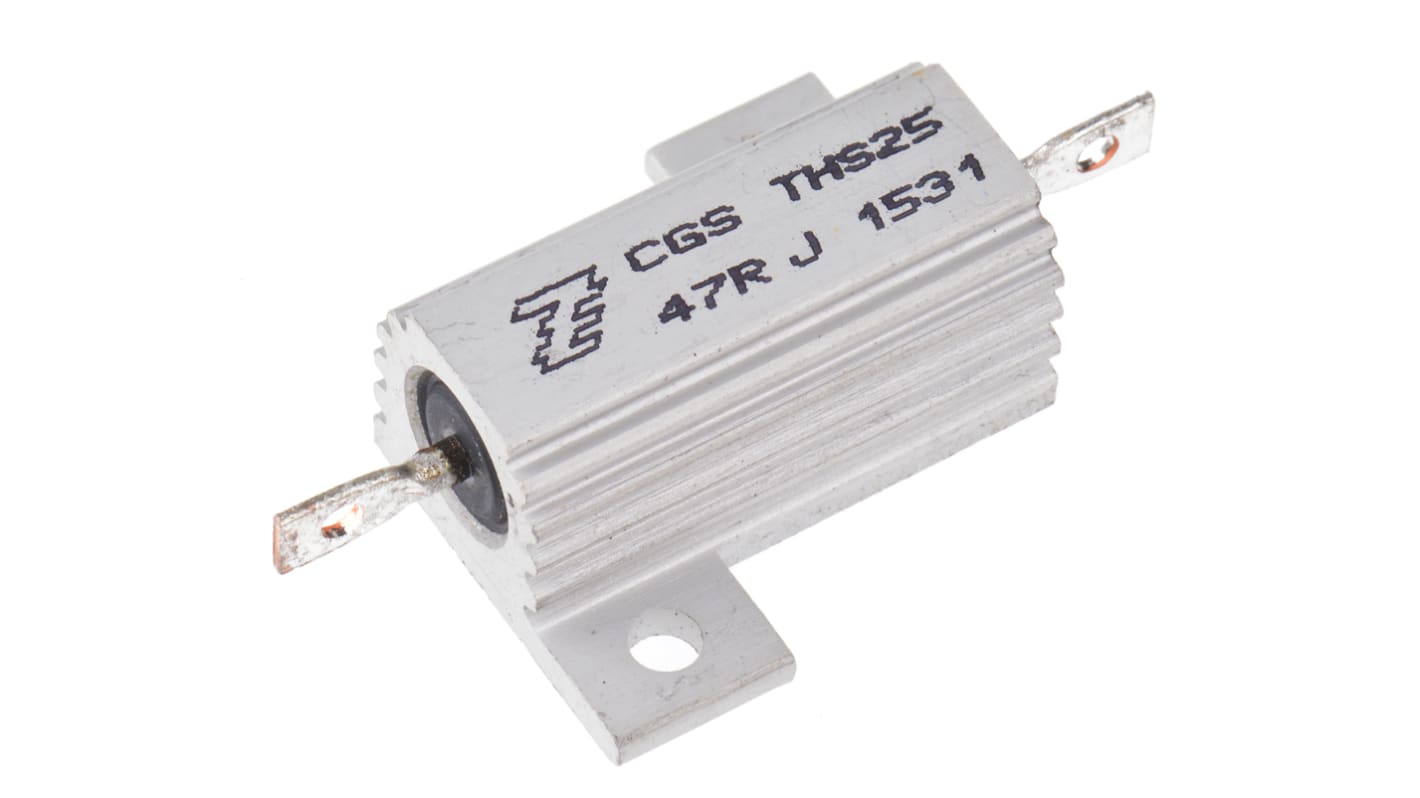

TE Connectivity, 47 Ω 25 W Wirewound Chassis Mount Resistor ±5 %

Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
164-4355
Numéro d'article Distrelec:
304-47-771
Référence fabricant:
THS2547RJ
Fabricant:
TE Connectivity
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

TE Connectivity

Resistance

47Ω

Product Type

Chassis Mount Resistor

Power Rating

25W

Series

THS25

Packaging

Loose Piece Tray

Package/Case

Aluminium

Tolerance

±5 %

Temperature Coefficient

±50 ppm/°C

Technology

Wirewound

Automotive Standard

No

Termination Style

Solder Lug

Overall Length

51mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

250°C

Overall Width

28mm

Standards/Approvals

RoHS

Overall Height

15mm

Pays d'origine :
IN

25W Aluminium housed wirewound power resistors - THS25 Series


TE Connectivity THS series power resistors encapsulated in a silver aluminium housing and designed for heatsink mounting. The THS series power resistors are high quality, extremely stable and wire wound resistors capable of dissipating high power in a limited space with relatively low surface temperature through the aluminium housing to a specified heatsink.

Applications for the Tyco THS series include vehicle braking and balancing resistors, capacitor charging and discharging, crowbar, filters and general electrical machinery.
