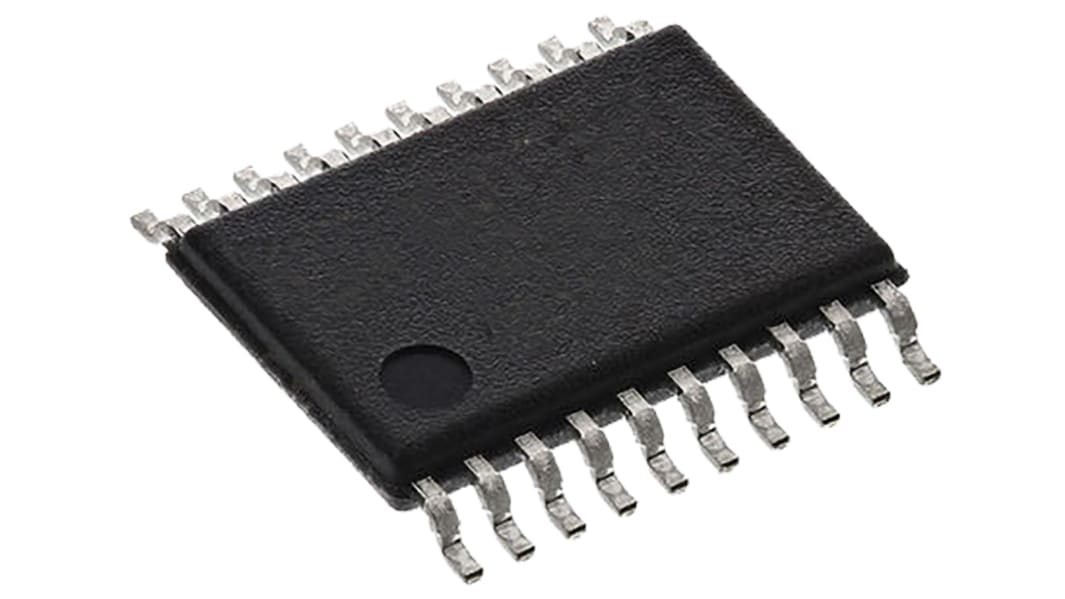

onsemi 74AC245MTC Bus Transceiver, 16-Bit Non-Inverting TTL, 20-Pin TSSOP
- N° de stock RS:
- 802-1143
- Référence fabricant:
- 74AC245MTC
- Fabricant:
- onsemi
Offre groupée disponible
Sous-total (1 tube de 73 unités)*
39,128 €
(TVA exclue)
47,377 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 75,00 €
Temporairement en rupture de stock
- Expédition à partir du 28 avril 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le tube* |
|---|---|---|
| 73 - 73 | 0,536 € | 39,13 € |
| 146 - 292 | 0,504 € | 36,79 € |
| 365 + | 0,483 € | 35,26 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 802-1143
- Référence fabricant:
- 74AC245MTC
- Fabricant:
- onsemi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | onsemi | |
| Logic Family | AC | |
| Product Type | Bus Transceiver | |
| Logic Function | Bus Transceiver | |
| Number of Channels | 16 | |
| Polarity | Non-Inverting | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Minimum Supply Voltage | 2V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 6V | |
| Input Level | TTL | |
| Output Level | TTL | |
| Maximum Propagation Delay Time @ CL | 7ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | -24mA | |
| Maximum Operating Temperature | 85°C | |
| Series | 74AC | |
| Standards/Approvals | No | |
| Width | 4.4 mm | |
| Maximum Low Level Output Current | 24mA | |
| Length | 6.5mm | |
| Height | 0.9mm | |
| Output Type | 3 State | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque onsemi | ||
Logic Family AC | ||
Product Type Bus Transceiver | ||
Logic Function Bus Transceiver | ||
Number of Channels 16 | ||
Polarity Non-Inverting | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Minimum Supply Voltage 2V | ||
Pin Count 20 | ||
Maximum Supply Voltage 6V | ||
Input Level TTL | ||
Output Level TTL | ||
Maximum Propagation Delay Time @ CL 7ns | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current -24mA | ||
Maximum Operating Temperature 85°C | ||
Series 74AC | ||
Standards/Approvals No | ||
Width 4.4 mm | ||
Maximum Low Level Output Current 24mA | ||
Length 6.5mm | ||
Height 0.9mm | ||
Output Type 3 State | ||
Automotive Standard No | ||
74AC Family, Fairchild Semiconductor
Advanced CMOS Logic
Operating Voltage: 1.5 to 5.5 and 2 to 6
Compatibility: Input CMOS, Output CMOS
74AC Family
