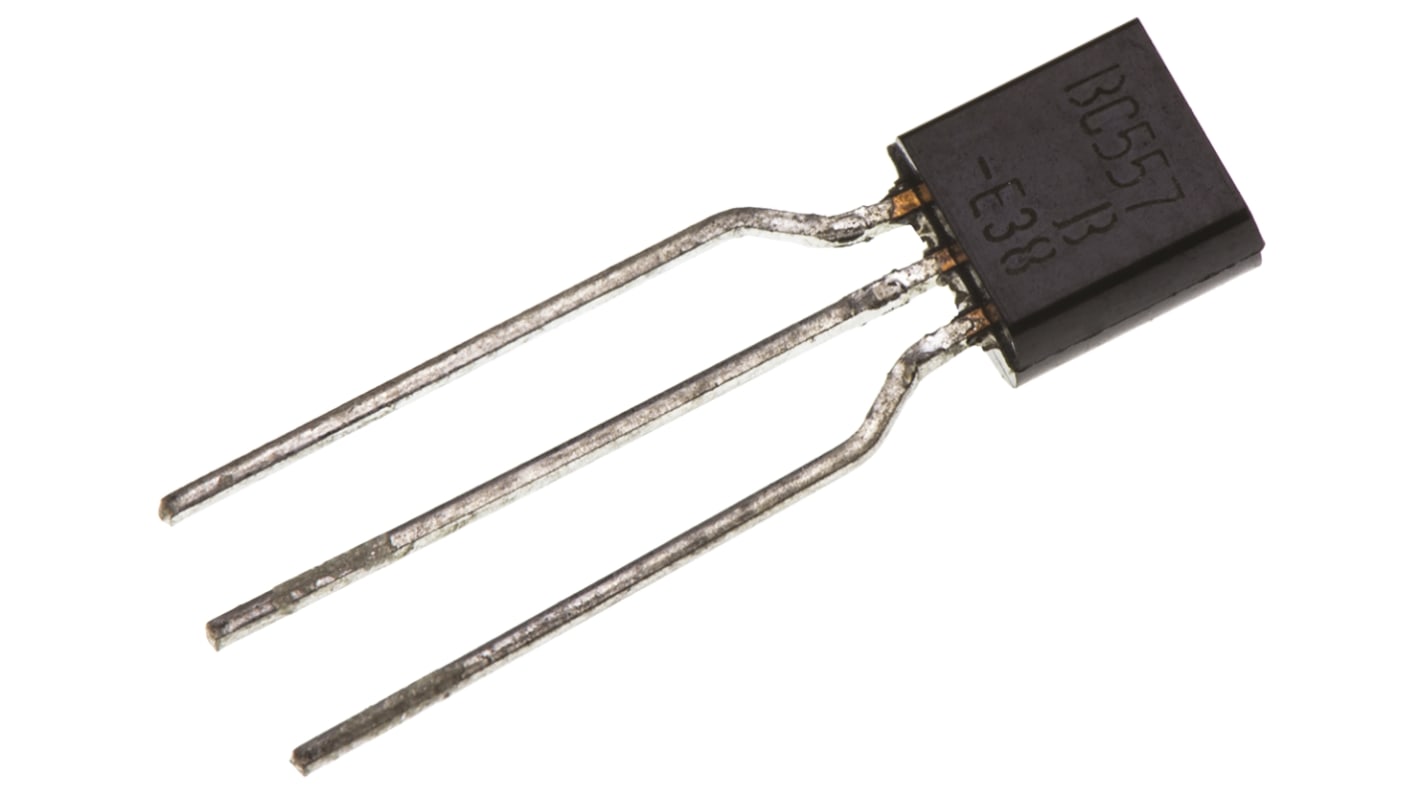

onsemi BC557BTA Transistor, -100 mA PNP, -45 V, 3-Pin TO-92
- N° de stock RS:
- 761-3505
- Référence fabricant:
- BC557BTA
- Fabricant:
- onsemi
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 100 unités)*
9,70 €
(TVA exclue)
11,70 €
(TVA incluse)
Informations sur le stock actuellement non accessibles - Veuillez vérifier plus tard
Unité | Prix par unité | le paquet* |
|---|---|---|
| 100 - 400 | 0,097 € | 9,70 € |
| 500 - 900 | 0,083 € | 8,30 € |
| 1000 + | 0,072 € | 7,20 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 761-3505
- Référence fabricant:
- BC557BTA
- Fabricant:
- onsemi
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | onsemi | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -100mA | |
| Maximum Collector Emitter Voltage Vceo | -45V | |
| Package Type | TO-92 | |
| Mount Type | Through Hole | |
| Transistor Configuration | Silicon Transistor | |
| Maximum Collector Base Voltage VCBO | -50V | |
| Minimum DC Current Gain hFE | 110 | |
| Minimum Operating Temperature | -55°C | |
| Maximum Emitter Base Voltage VEBO | -5V | |
| Maximum Power Dissipation Pd | 500mW | |
| Transistor Polarity | PNP | |
| Maximum Transition Frequency ft | 10MHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Length | 5.2mm | |
| Height | 18.03mm | |
| Series | BC557B | |
| Standards/Approvals | No | |
| Width | 4.19mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque onsemi | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -100mA | ||
Maximum Collector Emitter Voltage Vceo -45V | ||
Package Type TO-92 | ||
Mount Type Through Hole | ||
Transistor Configuration Silicon Transistor | ||
Maximum Collector Base Voltage VCBO -50V | ||
Minimum DC Current Gain hFE 110 | ||
Minimum Operating Temperature -55°C | ||
Maximum Emitter Base Voltage VEBO -5V | ||
Maximum Power Dissipation Pd 500mW | ||
Transistor Polarity PNP | ||
Maximum Transition Frequency ft 10MHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Length 5.2mm | ||
Height 18.03mm | ||
Series BC557B | ||
Standards/Approvals No | ||
Width 4.19mm | ||
Automotive Standard No | ||
- Pays d'origine :
- CN
Small Signal PNP Transistors, 40 to 50V, Fairchild Semiconductor
Bipolar Transistors, Fairchild Semiconductor
Bipolar Junction Transistors (BJT) broad range provides complete solutions for various circuit application needs. Innovative packages are designed for minimal size, highest reliability and maximum thermal performance.
