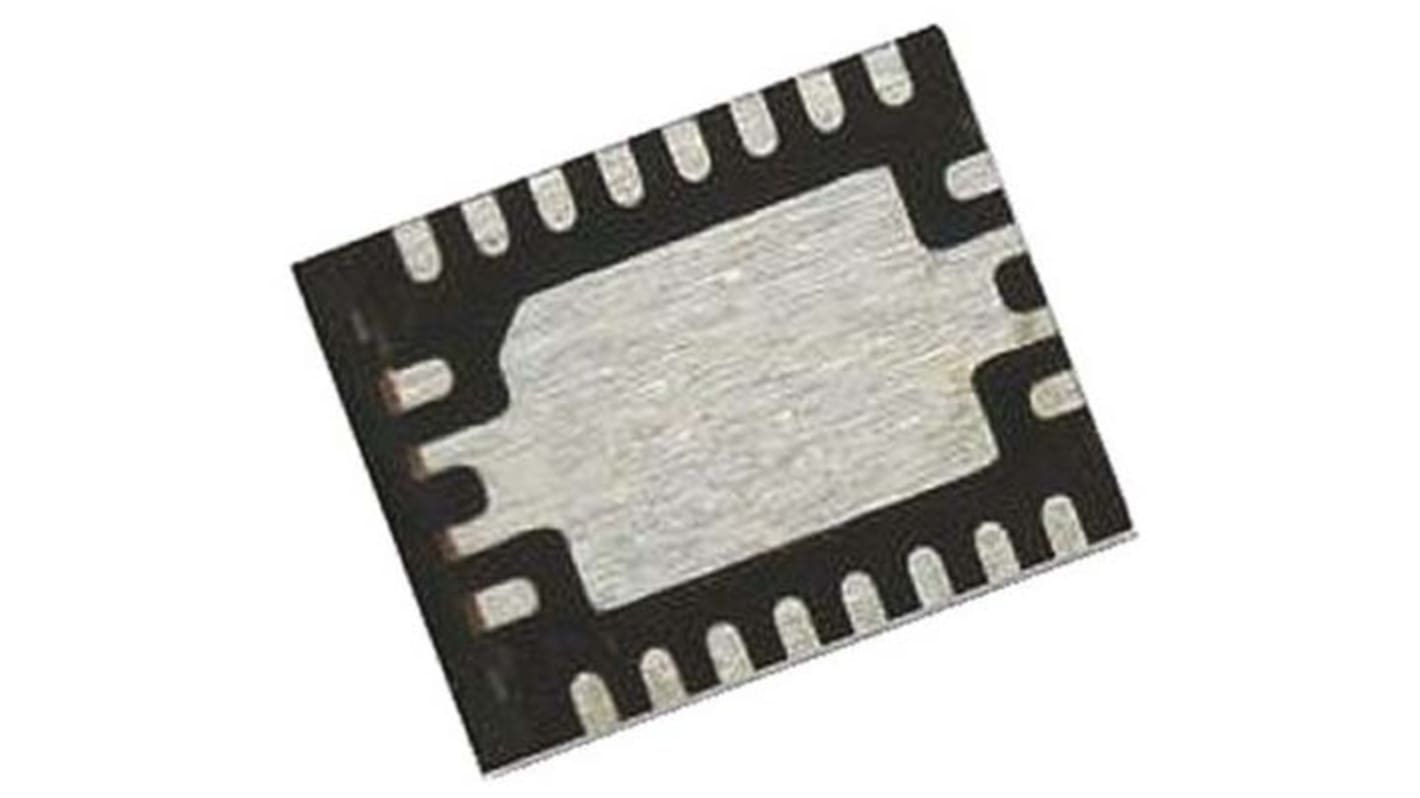

Texas Instruments BQ51013BRHLT, Battery Charge Controller IC, 4 V to 10 V Input 5.06 V Output 1.5 A, VQFN 20-Pin
- N° de stock RS:
- 817-5916
- Référence fabricant:
- BQ51013BRHLT
- Fabricant:
- Texas Instruments
Sous-total (1 unité)*
3,47 €
(TVA exclue)
4,20 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 687 unité(s) expédiée(s) à partir du 04 mai 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 3,47 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 817-5916
- Référence fabricant:
- BQ51013BRHLT
- Fabricant:
- Texas Instruments
Spécifications
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Texas Instruments | |
| Sub Type | Battery Charge Controller IC | |
| Product Type | Battery Charge Controller IC | |
| Mount Type | Surface | |
| Package Type | VQFN | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 4V | |
| Output Current | 1.5A | |
| Maximum Operating Temperature | 150°C | |
| Maximum Supply Voltage | 10V | |
| Series | BQ51013B | |
| Minimum Operating Temperature | -40°C | |
| Height | 0.95mm | |
| Length | 4.65mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque Texas Instruments | ||
Sub Type Battery Charge Controller IC | ||
Product Type Battery Charge Controller IC | ||
Mount Type Surface | ||
Package Type VQFN | ||
Pin Count 20 | ||
Minimum Supply Voltage 4V | ||
Output Current 1.5A | ||
Maximum Operating Temperature 150°C | ||
Maximum Supply Voltage 10V | ||
Series BQ51013B | ||
Minimum Operating Temperature -40°C | ||
Height 0.95mm | ||
Length 4.65mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Qi (WPC V1.1) Compliant Wireless Power Supply, Texas Instruments
Qi is an Interface standard developed by the Wireless Power Consortium (WPC) for inductive electrical power transfer over distances of up to 4 cm.
A Qi-compliant wireless power system consists of a charging pad and receiver. Power transfers from transmitter to receiver via coupled inductors. Coils in both the charging pad and the receiver are magnetically coupled when the two devices establish contact.
The convenience and safety of standards-compliant wireless power systems continues to grow in market demand.
Qi is a specification of the inductive power standard
Wireless Power Transfer System
Wireless Power Transmitters & Receivers, Texas Instruments
