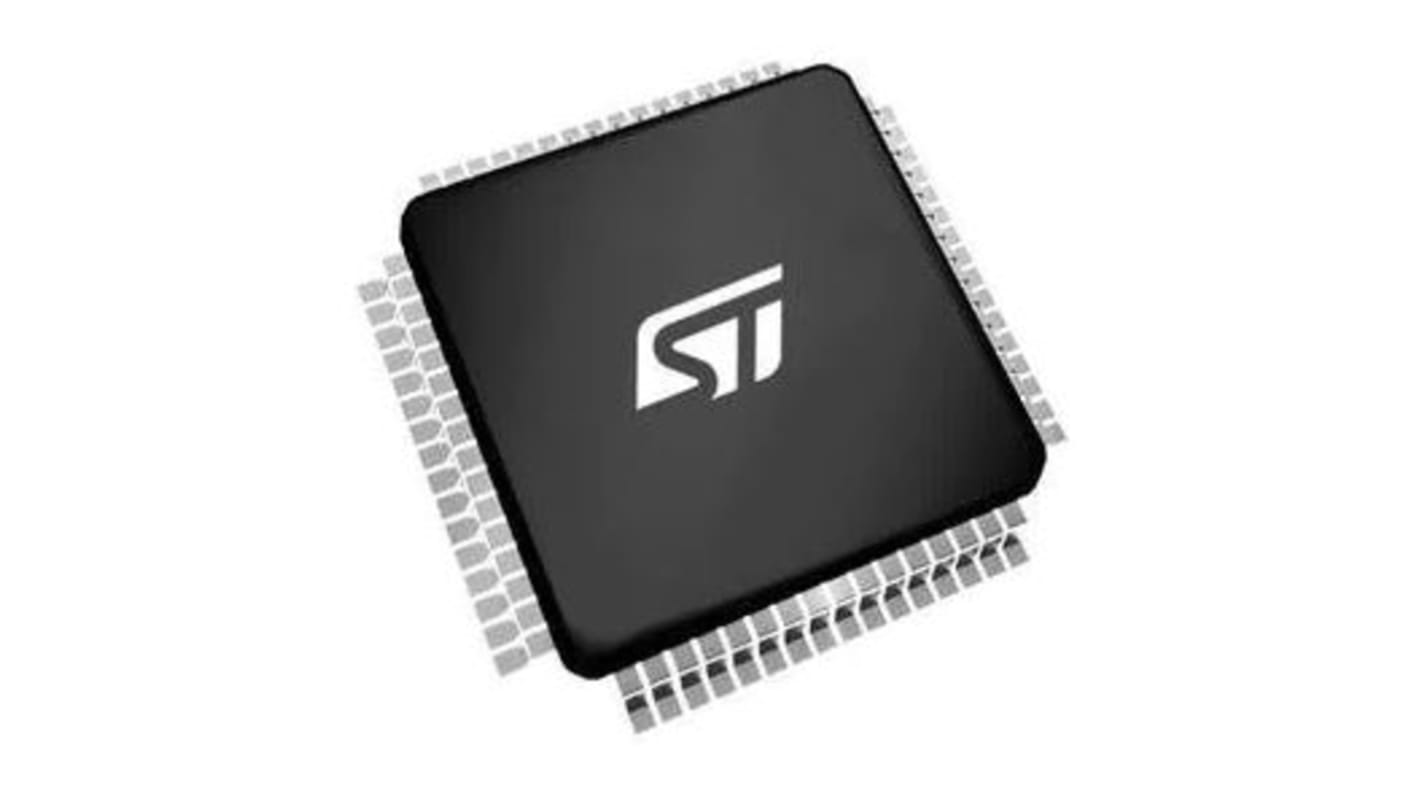

STMicroelectronics L9963E-TR, Battery Charge Controller IC, 48 V to 48V Input 5.4V Output 200 mA, TQFP 64-Pin
- N° de stock RS:
- 219-4219
- Référence fabricant:
- L9963E-TR
- Fabricant:
- STMicroelectronics
Bénéficiez d'une remise sur les achats en gros
Ajoutez 10 de plus pour économiser 13,80 €
Consulter les options de prix de grosSous-total (1 unité)*
9,66 €
(TVA exclue)
11,69 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 11 novembre 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 1 - 9 | 9,66 € | - |
| 10 - 24 | 8,28 € | 13,80 € |
| 25 - 99 | 8,18 € | 37,00 € |
| 100 - 249 | 8,08 € | 158,00 € |
| 250 + | 7,98 € | 420,00 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 219-4219
- Référence fabricant:
- L9963E-TR
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Sub Type | Battery Charge Controller IC | |
| Product Type | Battery Charge Controller IC | |
| Mount Type | Surface | |
| Package Type | TQFP | |
| Pin Count | 64 | |
| Minimum Supply Voltage | 48V | |
| Output Current | 200mA | |
| Maximum Operating Temperature | 105°C | |
| Maximum Supply Voltage | 48V | |
| Series | L9963E | |
| Standards/Approvals | No | |
| Minimum Operating Temperature | -40°C | |
| Length | 10mm | |
| Automotive Standard | AEC-Q100 | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Sub Type Battery Charge Controller IC | ||
Product Type Battery Charge Controller IC | ||
Mount Type Surface | ||
Package Type TQFP | ||
Pin Count 64 | ||
Minimum Supply Voltage 48V | ||
Output Current 200mA | ||
Maximum Operating Temperature 105°C | ||
Maximum Supply Voltage 48V | ||
Series L9963E | ||
Standards/Approvals No | ||
Minimum Operating Temperature -40°C | ||
Length 10mm | ||
Automotive Standard AEC-Q100 | ||
The STMicroelectronics L9963E is a Li-ion battery monitoring and protecting chip for high-reliability automotive applications and energy storage systems. Up to 14 stacked battery cells can be monitored to meet the requirements of 48 V and higher voltage systems. Each cell voltage is measured with high accuracy, as well as the current for the on-chip coulomb counting. The device can monitor up to 7 NTCs. The information is transmitted through SPI communication or isolated interface.
AEC-Q100 qualified
Measures 4 to 14 cells in series, with 0 μs desynchronization delay between samples. Supports also Busbar connection without altering cell results
Coulomb counter supporting pack overcurrent detection in both ignition on and off states. Fully synchronized current and voltage samples
