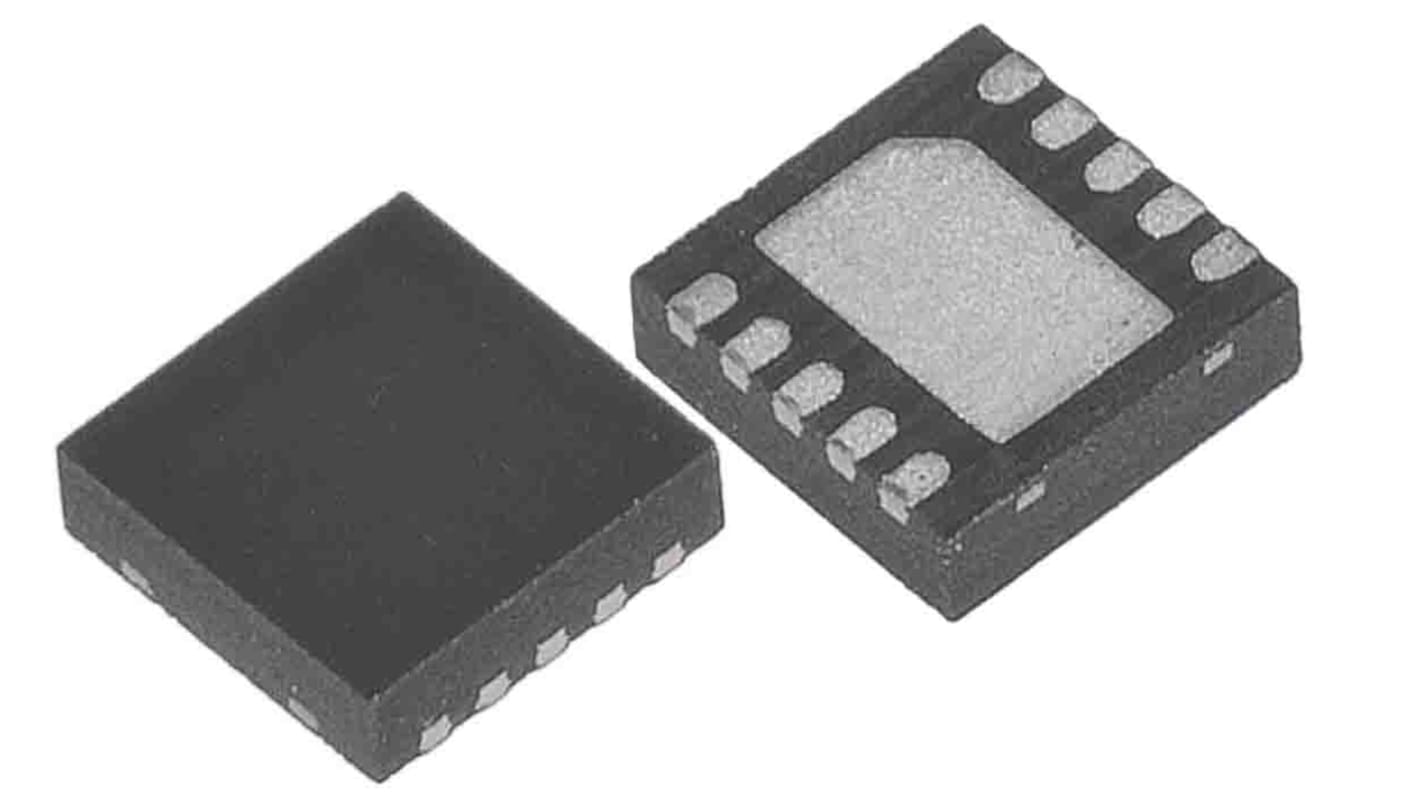

STMicroelectronics STC3115AIQT, Battery Charge Controller IC, 2.7 V to 4.5V Input, DFN 10-Pin
- N° de stock RS:
- 189-2089
- Référence fabricant:
- STC3115AIQT
- Fabricant:
- STMicroelectronics
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 paquet de 5 unités)*
10,08 €
(TVA exclue)
12,195 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
Temporairement en rupture de stock
- Expédition à partir du 28 janvier 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | le paquet* |
|---|---|---|
| 5 - 45 | 2,016 € | 10,08 € |
| 50 - 245 | 1,966 € | 9,83 € |
| 250 - 495 | 1,92 € | 9,60 € |
| 500 + | 1,796 € | 8,98 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 189-2089
- Référence fabricant:
- STC3115AIQT
- Fabricant:
- STMicroelectronics
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | STMicroelectronics | |
| Sub Type | Battery Charge Controller IC | |
| Product Type | Battery Charge Controller IC | |
| Mount Type | Surface | |
| Package Type | DFN | |
| Pin Count | 10 | |
| Minimum Supply Voltage | 2.7V | |
| Maximum Operating Temperature | 85°C | |
| Maximum Supply Voltage | 4.5V | |
| Length | 3.1mm | |
| Series | STC3115 | |
| Standards/Approvals | No | |
| Minimum Operating Temperature | -40°C | |
| Height | 0.55mm | |
| Automotive Standard | No | |
| Sélectionner tout | ||
|---|---|---|
Marque STMicroelectronics | ||
Sub Type Battery Charge Controller IC | ||
Product Type Battery Charge Controller IC | ||
Mount Type Surface | ||
Package Type DFN | ||
Pin Count 10 | ||
Minimum Supply Voltage 2.7V | ||
Maximum Operating Temperature 85°C | ||
Maximum Supply Voltage 4.5V | ||
Length 3.1mm | ||
Series STC3115 | ||
Standards/Approvals No | ||
Minimum Operating Temperature -40°C | ||
Height 0.55mm | ||
Automotive Standard No | ||
The STC3115 includes the hardware functions required to implement a low-cost gas gauge for battery monitoring. The STC3115 uses current sensing, Coulomb counting and accurate measurements of the battery voltage to estimate the state-of-charge (SOC) of the battery. An internal temperature sensor simplifies implementation of temperature compensation. An alarm output signals a low SOC condition and can also indicate low battery voltage. The alarm threshold levels are programmable. The STC3115 offers advanced features to ensure high performance gas gauging in all application conditions.
OptimGauge™ algorithm
0.25% accuracy battery voltage monitoring
Coulomb counter and voltage-mode gas gauge operations
Robust initial open-circuit-voltage (OCV) measurement at power-up
Programmable low battery alarm
Internal temperature sensor
Battery swap detection
Low power: 45 μA in power-saving mode, 2 μA max. in standby mode
Micro-sized packages:
1.4 x 2.0 mm 10-bump CSP package
2.0 x 3.0 mm DFN10 package
