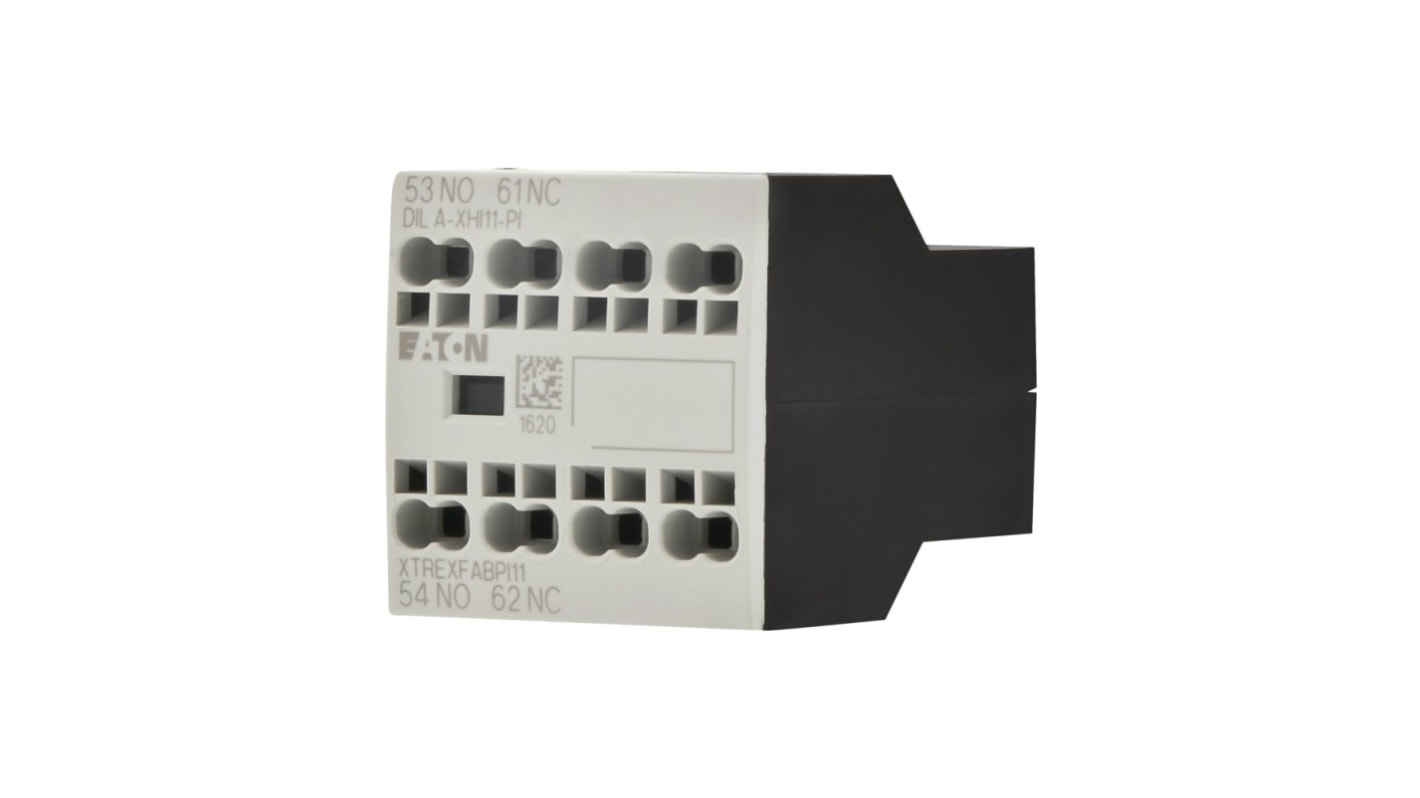

Eaton Auxiliary Contact, 2 Contact, 1 NO/1 NC, DILA, Side, 16 A, 199314 DILA-XHI11-PI
- N° de stock RS:
- 240-2854
- Référence fabricant:
- 199314 DILA-XHI11-PI
- Fabricant:
- Eaton
Sous-total (1 unité)*
9,51 €
(TVA exclue)
11,51 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 24 unité(s) prête(s) à être expédiée(s)
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 + | 9,51 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 240-2854
- Référence fabricant:
- 199314 DILA-XHI11-PI
- Fabricant:
- Eaton
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Eaton | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact | |
| Normal State Configuration | 1 NO/1 NC | |
| Series | DILA | |
| Mount Type | Side | |
| Contact Current | 16A | |
| Terminal Type | Push-in | |
| Pole and Throw Configuration | 2P | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Sélectionner tout | ||
|---|---|---|
Marque Eaton | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact | ||
Normal State Configuration 1 NO/1 NC | ||
Series DILA | ||
Mount Type Side | ||
Contact Current 16A | ||
Terminal Type Push-in | ||
Pole and Throw Configuration 2P | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
- Pays d'origine :
- RO
Eaton Moeller Series Auxiliary Contact, Side Mounted, 2 Contacts - 199314 DILA-XHI11-PI
This auxiliary contact module by Eaton with a 16A contact rating and a 1NC 1NO configuration is designed for standard applications. It features interlocked opposing contacts, making it suitable for a wide range of uses.
Features & Benefits
• Interlocked opposing contacts for enhanced safety
• Front fixing mounting style for easy installation
• Push-in terminals for convenient wiring
• Rated operational current of 16A for reliable performance
Applications
• Compatible with DILA and DILM series products
Can it be used with other Eaton contactors?
Yes, it is compatible with various Eaton Moeller series products.
Will it fit in a tight space?
The side-mounted design makes it suitable for compact installations.
Is it easy to install?
The front fixing mounting style allows for quick and convenient installation.
Note
Eaton formerly known as Moeller
