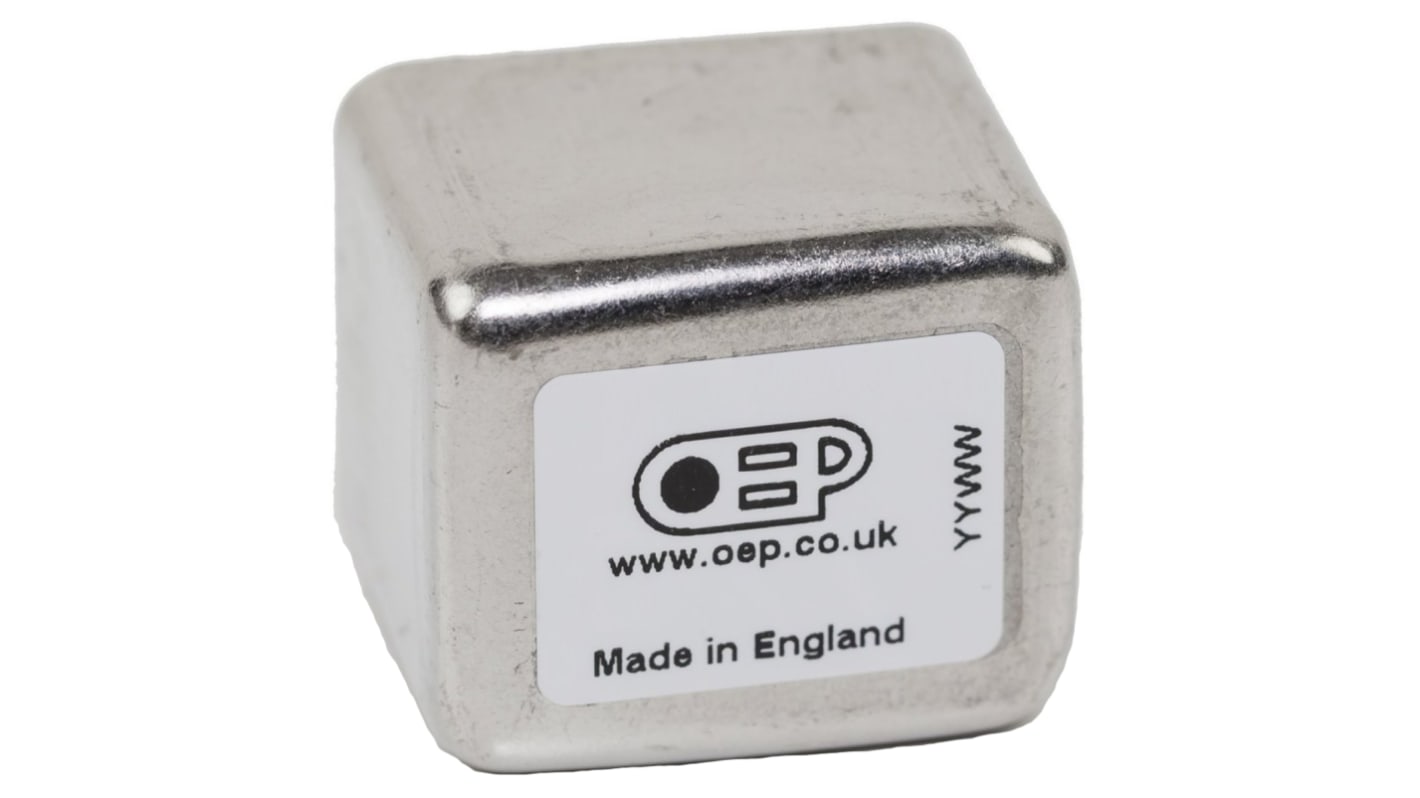

OEP Through Hole Audio Transformer 10kΩ
- N° de stock RS:
- 123-7202
- Référence fabricant:
- A187A14C
- Fabricant:
- OEP
Bénéficiez d'une remise sur les achats en gros
Ajoutez 10 de plus pour économiser 88,30 €
Consulter les options de prix de grosSous-total (1 unité)*
88,25 €
(TVA exclue)
106,78 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- Plus 5 unité(s) expédiée(s) à partir du 06 novembre 2026
- Plus 10 unité(s) expédiée(s) à partir du 11 novembre 2026
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité | Économie |
|---|---|---|
| 1 - 9 | 88,25 € | - |
| 10 + | 79,42 € | 88,30 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 123-7202
- Référence fabricant:
- A187A14C
- Fabricant:
- OEP
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | OEP | |
| Primary Impedance | 600Ω | |
| Product Type | Audio Transformer | |
| Secondary Impedance | 10kΩ | |
| Primary DC Resistance | 38Ω | |
| Secondary DC Resistance | 1085Ω | |
| Mount Type | Through Hole | |
| Termination Type | PC Pin | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Depth | 24mm | |
| Length | 29.4mm | |
| Weight | 56g | |
| Standards/Approvals | No | |
| Width | 25mm | |
| Series | A187A14C | |
| Minimum Operating Frequency | 20Hz | |
| Maximum Operating Frequency | 40kHz | |
| Construction | Mu-Metal Screening Can | |
| Turns Ratio | 1+1:8 | |
| Isolation Voltage | 500V | |
| Sélectionner tout | ||
|---|---|---|
Marque OEP | ||
Primary Impedance 600Ω | ||
Product Type Audio Transformer | ||
Secondary Impedance 10kΩ | ||
Primary DC Resistance 38Ω | ||
Secondary DC Resistance 1085Ω | ||
Mount Type Through Hole | ||
Termination Type PC Pin | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Depth 24mm | ||
Length 29.4mm | ||
Weight 56g | ||
Standards/Approvals No | ||
Width 25mm | ||
Series A187A14C | ||
Minimum Operating Frequency 20Hz | ||
Maximum Operating Frequency 40kHz | ||
Construction Mu-Metal Screening Can | ||
Turns Ratio 1+1:8 | ||
Isolation Voltage 500V | ||
- Pays d'origine :
- GB
OEP A187A14C Microphone Transformers
A187A14C microphone transformers from OEP are ideal for signal splitting and impedance matching. They are encapsulated in a mumetal can and constructed with multiple electrostatic screens. These audio transformers provide dual primary impedance for matching 150 Ω to 15 kΩ.
750 mH primary inductance at 1 kHz, 0.1v
44 pF interwinding capacitance at 20 kHz (primary 1 to screens)
64 pF interwinding capacitance at 20 kHz (primary 2 to screens)
109 pF interwinding capacitance at 20khz (secondary to screens)
12 pF interwinding capacitance at 20 kHz (primaries to secondary when primaries are in series)
Note
Do not pass DC through windings
