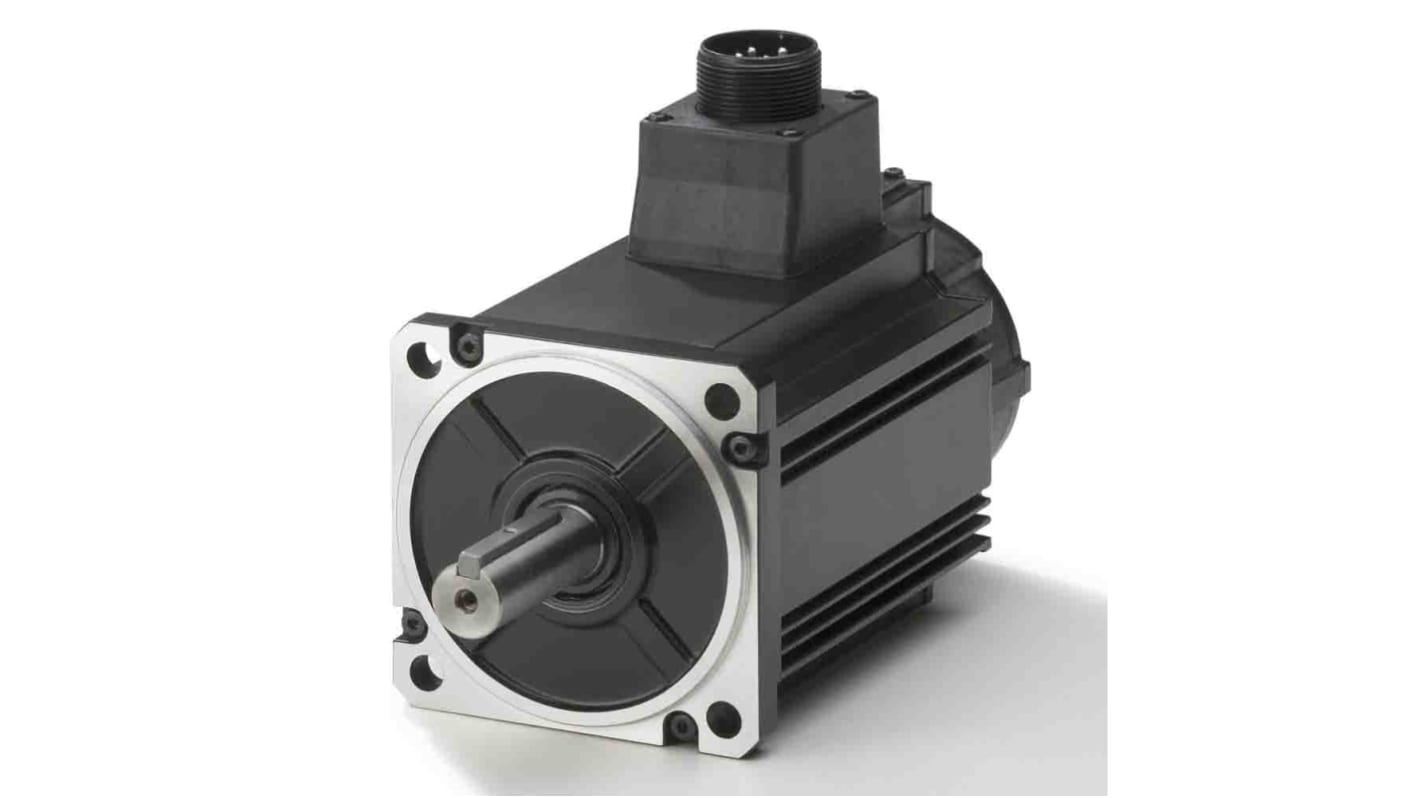

Omron Accurax G5 AC Motor, 1 kW, 1 Phase, 230V, Screw Mounting

Sous-total (1 unité)*

1 734,17 €

(TVA exclue)

2 098,35 €

(TVA incluse)

Add to Basket
sélectionner ou taper la quantité
Temporairement en rupture de stock
  • Expédition à partir du 05 mars 2027
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité
Prix par unité
1 +1 734,17 €

*Prix donné à titre indicatif

N° de stock RS:
215-8302
Référence fabricant:
R88M-K1K020T-S2
Fabricant:
Omron
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Omron

Power Rating

1kW

Product Type

AC Motor

Sub Type

High Inertia Type Servo Motor

Supply Voltage

230V

Number of Phases

1

Output Speed

2000rpm

Mount Type

Screw

Material

Steel

Shaft Diameter

22mm

Shaft Length

49mm

Width

130mm

Length

193mm

Depth

181mm

Standards/Approvals

RoHS

Maximum Output Torque

4.77Nm

Series

Accurax G5

The Omron Accurax G5 servomotors include IP67 protection and connectors on the motor body. It use 10 pole motors and 20 bit encoder results in 40% reduction in motor cogging. The servomotors are 25% lighter and 15% smaller due to patented new stator design PAC-Clamp, 40% iron loss reduction and 15% smaller encoder. Accurax G5 series AC servo motor for accurate motion control has absolute encoder of 17 bit straight shaft with key and tap without brake. It has 4.77 Nm rated torque, 2000 rpm speed and 1 kW power capacity.

Standard and high inertia servo motor models

Peak torque 300% of rated torque during 3 seconds

or more depending on model

High resolution serial encoder provided by 20 bits

encoder

Ultra-light and compact size motor

Low speed ripple and low torque ripple due to low

torque cogging

Various shaft, brake and seal options
