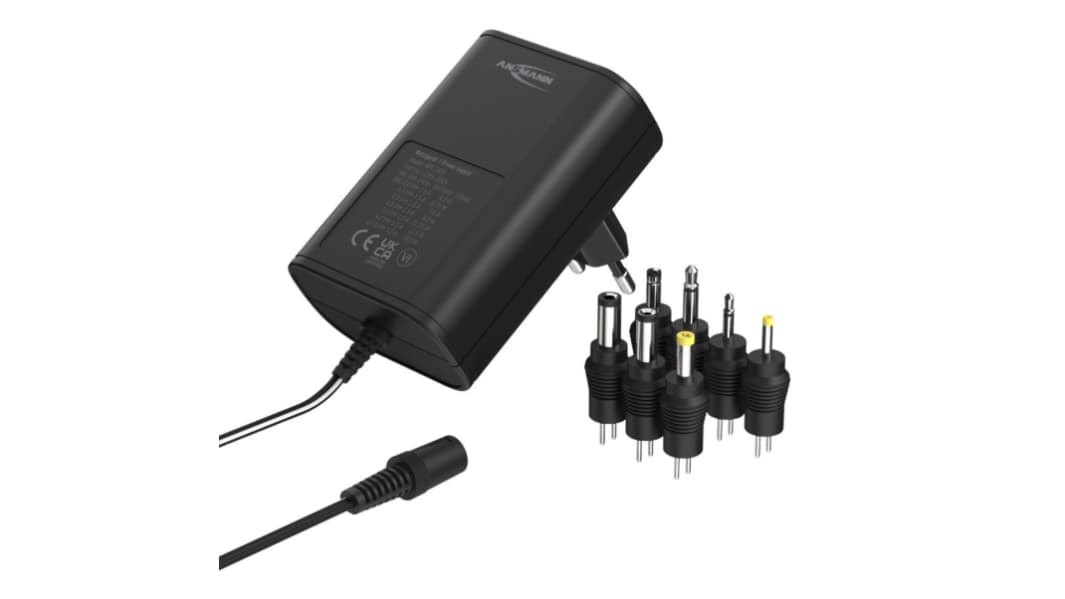

Ansmann Interchangeable AC/DC Adapter AC/DC Adapter Type C 18 W 12V dc, 3 V dc, 4.5 V dc, 5 V dc, 6 V dc, 7.5 V dc, 9 V
- N° de stock RS:
- 735-0743
- Numéro d'article Distrelec:
- 304-01-596
- Référence fabricant:
- 5111253
- Fabricant:
- Ansmann
Offre groupée disponible
Consulter les options de prix de grosSous-total (1 unité)*
24,56 €
(TVA exclue)
29,72 €
(TVA incluse)
Frais de livraison offerts pour toute commande de plus de 90,00 €
En stock
- 76 unité(s) prête(s) à être expédiée(s)
- Plus 206 unité(s) prête(s) à être expédiée(s) d'un autre centre de distribution
Besoin de plus? Cliquez sur " Vérifier les dates de livraison " pour plus de détails
Unité | Prix par unité |
|---|---|
| 1 - 4 | 24,56 € |
| 5 - 9 | 23,84 € |
| 10 - 24 | 23,10 € |
| 25 - 49 | 22,34 € |
| 50 + | 21,61 € |
*Prix donné à titre indicatif
- N° de stock RS:
- 735-0743
- Numéro d'article Distrelec:
- 304-01-596
- Référence fabricant:
- 5111253
- Fabricant:
- Ansmann
Spécifications
Documentation technique
Législations et de normes
Détails du produit
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout | Attribut | Valeur |
|---|---|---|
| Marque | Ansmann | |
| Product Type | AC/DC Adapter | |
| Sub Type | AC/DC Adapter | |
| Plug Type | Type C | |
| Output Voltage | 12V dc, 3V dc, 4.5V dc, 5V dc, 6V dc, 7.5V dc, 9V dc | |
| Output Connector Type | Interchangeable | |
| Power | 18W | |
| Cable Length | 1.8m | |
| Number of Outputs | 1 | |
| Input Connector Type | EU Plug | |
| Regulated/Unregulated | Regulated | |
| Minimum Operating Temperature | 0°C | |
| Adapter Current | 1.5A | |
| Maximum Operating Temperature | 25°C | |
| Length | 79.5mm | |
| Width | 54.5mm | |
| Depth | 32.5mm | |
| Standards/Approvals | CE | |
| Maximum Input Voltage | 240V ac | |
| Load Regulation | ±10 % | |
| Minimum Input Voltage | 100V ac | |
| Energy Efficiency Level | V | |
| Sélectionner tout | ||
|---|---|---|
Marque Ansmann | ||
Product Type AC/DC Adapter | ||
Sub Type AC/DC Adapter | ||
Plug Type Type C | ||
Output Voltage 12V dc, 3V dc, 4.5V dc, 5V dc, 6V dc, 7.5V dc, 9V dc | ||
Output Connector Type Interchangeable | ||
Power 18W | ||
Cable Length 1.8m | ||
Number of Outputs 1 | ||
Input Connector Type EU Plug | ||
Regulated/Unregulated Regulated | ||
Minimum Operating Temperature 0°C | ||
Adapter Current 1.5A | ||
Maximum Operating Temperature 25°C | ||
Length 79.5mm | ||
Width 54.5mm | ||
Depth 32.5mm | ||
Standards/Approvals CE | ||
Maximum Input Voltage 240V ac | ||
Load Regulation ±10 % | ||
Minimum Input Voltage 100V ac | ||
Energy Efficiency Level V | ||
- Pays d'origine :
- CN
Ansmann AC/DC Adaptor, Type C Plug, 100V AC/110V AC/115V AC/120V AC/127V AC/220V AC/230V AC/240V AC Input Voltage - 5111253
This AC/DC adaptor offers a flexible power supply solution, especially beneficial for users in automation, electronics, and similar fields. It includes an interchangeable output connector and accommodates various voltage options, making it suitable for a wide range of applications. The compact design and energy-efficient nature of this plug-in adaptor ensure a dependable method to power devices with different voltage requirements.
Features & Benefits
• Outputs adjustable from 3V to 12V for versatility
• Interchangeable output connector increases compatibility
• EU plug design caters to many users
• Energy efficiency compliant for minimal power loss
• 1.5A output current meets the needs of various devices
• Durable construction with a maximum operating temperature of +25°C
Applications
• Suitable for devices requiring adjustable DC voltages
• Powers various electronic and mechanical tools
• Fits in automation and control systems
• Useful in testing and prototyping setups
• Employed in educational contexts for teaching electronics
What determines the output voltage selection?
The output voltage is adjustable to match the requirements of the connected device, enabling precise voltage alignment.
How can the interchangeable connectors be fitted?
Select the required connector and align it with the output port, ensuring a secure fit for optimal performance.
Is this adaptor compatible with devices from different regions?
Yes, it supports a wide input voltage range from 100V to 240V, making it suitable for international use.
What safety features are included?
It includes short-circuit protection to enhance safety during operation and protect connected devices.
Can it be used continuously for extended periods?
Yes, it is designed for long-term use with a mean time between failures of approximately 70,000 hours, ensuring durability.
