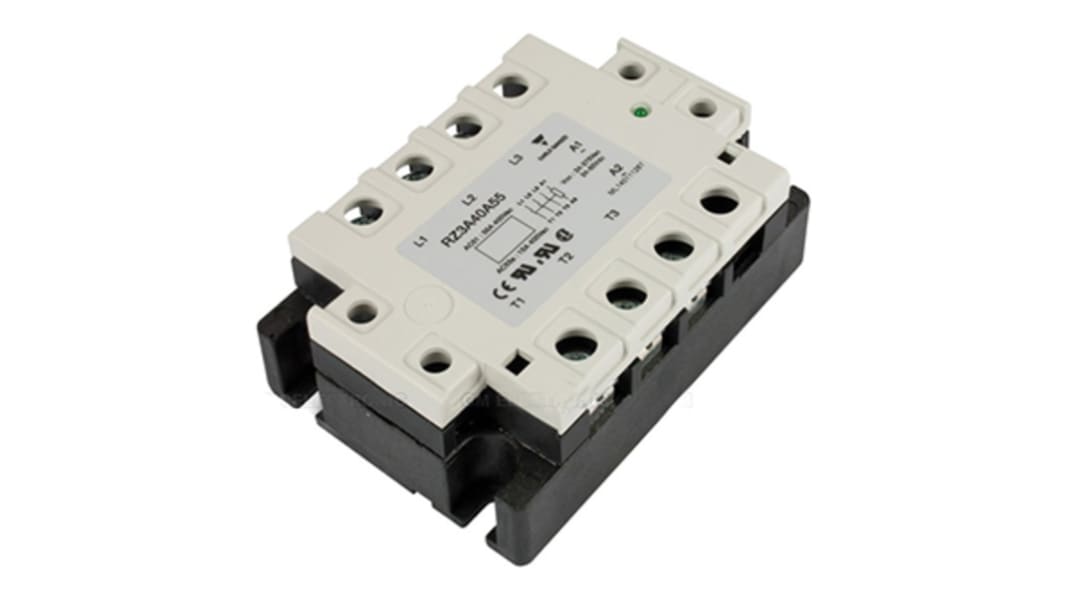

Carlo Gavazzi RZ Series Solid State Relay, 55 A Load, Panel Mount, 440 V ac Load, 50 V dc, 275 V ac Control
- N° de stock RS:
- 859-3226
- Référence fabricant:
- RZ3A40A55
- Fabricant:
- Carlo Gavazzi
6 En stock, livraison sous 1 jour(s) (stock Europe)
9 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
289,04 €
(TVA exclue)
349,74 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 289,04 € |
| 5 - 11 | 280,08 € |
| 12 + | 271,12 € |
- N° de stock RS:
- 859-3226
- Référence fabricant:
- RZ3A40A55
- Fabricant:
- Carlo Gavazzi
Documentation technique
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- MT
Détails du produit
Carlo Gavazzi Zero-Switching Solid State Relay
Solid State relays with integral heatsink offer the user an excellent alternative to convensional relays. Comes equipped with an IP20 touch-safe cover can be easily detached to accomodate Ring Terminal connections and then be added back onto the relay. Integrated cooling fans are supplied with higher-rated relays, such as 75&90A variants
Easily mountable onto DIN rail
Zero-switching suitable for use with Resistive loads and motors
Integrated Snubber network
LED status indication
AC and/or DC control voltage to ensure your application is covered
70A maximum output current
Zero-switching suitable for use with Resistive loads and motors
Integrated Snubber network
LED status indication
AC and/or DC control voltage to ensure your application is covered
70A maximum output current
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Spécifications
Attribut | Valeur |
|---|---|
| Maximum Load Current | 55 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 440 V ac |
| Minimum Load Voltage | 24 V ac |
| Minimum Control Voltage | 24V ac/dc |
| Maximum Control Voltage | 50 V dc, 275 V ac |
| Switching Type | AC |
| Control Voltage Range | 24 → 275 V ac, 24 → 50 V dc |
| Minimum Load Current | 250 mA |
| Number of Poles | 3 |
| Terminal Type | Screw |
| Relay Type | Three Phase |
| Series | RZ |
| Load Voltage Range | 24 → 440V ac |
| Maximum Turn On Time | 1 s |
| Dimensions | 73.5 x 103 x 41mm |
| Operating Temperature Range | -30 → +80°C |
| Length | 73.5mm |
| Maximum Operating Temperature | +80°C |
| Depth | 103mm |
| Off State Leakage Current | 3 mA |
| Height | 41mm |
| Minimum Operating Temperature | -30°C |
| Special Features | IP 10 Back Of Hand Protection |
