TCST2300 Vishay, Through Hole Slotted Optical Switch, Phototransistor Output
- N° de stock RS:
- 919-0177
- Référence fabricant:
- TCST2300
- Fabricant:
- Vishay
1700 En stock pour livraison sous 1 jour(s)
Ajouté
Prix L'unité (dans un tube de 85)
1,336 €
(TVA exclue)
1,617 €
(TVA incluse)
| Unité | Prix par unité | le tube* |
| 85 - 85 | 1,336 € | 113,56 € |
| 170 - 340 | 1,309 € | 111,265 € |
| 425 - 765 | 0,935 € | 79,475 € |
| 850 + | 0,802 € | 68,17 € |
| *prix conseillé | ||
- N° de stock RS:
- 919-0177
- Référence fabricant:
- TCST2300
- Fabricant:
- Vishay
Documentation technique
Législations et de normes
- Pays d'origine :
- PH
Détails du produit

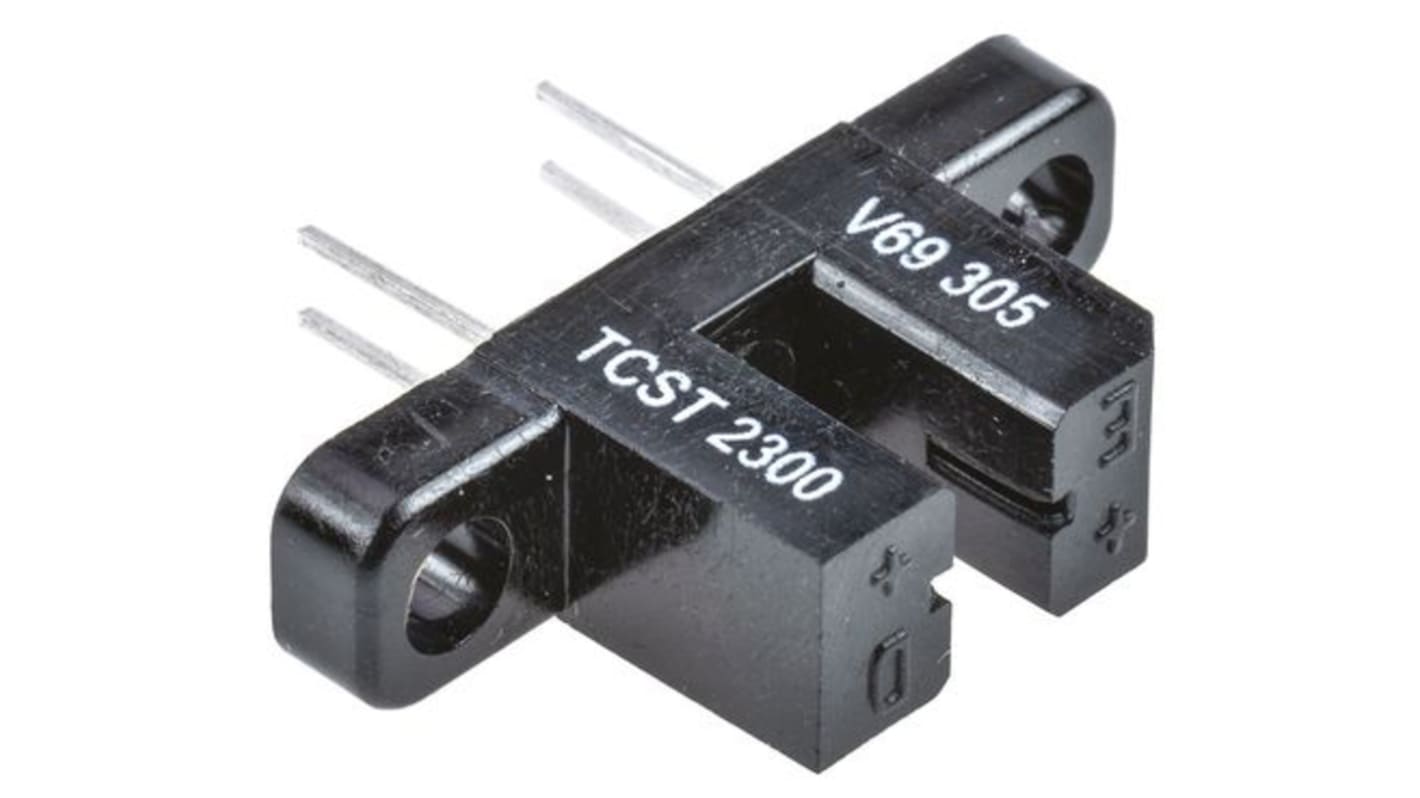

Miniature Slotted Optical Switch, Vishay
The TCST2103, TCST2202, and TCST2300 are transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light. These part numbers include options for aperture width.
Features:
• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released
Applications:
• Optical switch
• Photo interrupter
• Counter
• Encoder
• Photo interrupter
• Counter
• Encoder
Slotted Optical Switches, Vishay
Spécifications
Attribut | Valeur |
|---|---|
| Output Device | Phototransistor |
| Number of Channels | 1 |
| Typical Rise Time | 10 μ |
| Typical Fall Time | 8µs |
| Mounting Type | Through Hole |
| Number of Pins | 4 |
| Dimensions | 24.5 x 6.3 x 11.1mm |
| Height | 11.1mm |
| Length | 24.5mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -55°C |
| Slot Width | 3.1mm |
| Width | 6.3mm |
| Operating Temperature Range | -55 → +85°C |
