TCUT1630X01 Vishay, Surface Mount Slotted Optical Switch, Phototransistor Output
- N° de stock RS:
- 174-2512
- Référence fabricant:
- TCUT1630X01
- Fabricant:
- Vishay
En cours d'approvisionnement - expédition le 25/11/2024, livraison sous 4 jour(s)
Ajouté
Prix L'unité (sur une bobine de 1100)
1,24 €
(TVA exclue)
1,50 €
(TVA incluse)
| Unité | Prix par unité | la bobine* |
| 1100 + | 1,24 € | 1 364,00 € |
| *prix conseillé | ||
- N° de stock RS:
- 174-2512
- Référence fabricant:
- TCUT1630X01
- Fabricant:
- Vishay
Documentation technique
Législations et de normes
- Pays d'origine :
- PH
Détails du produit

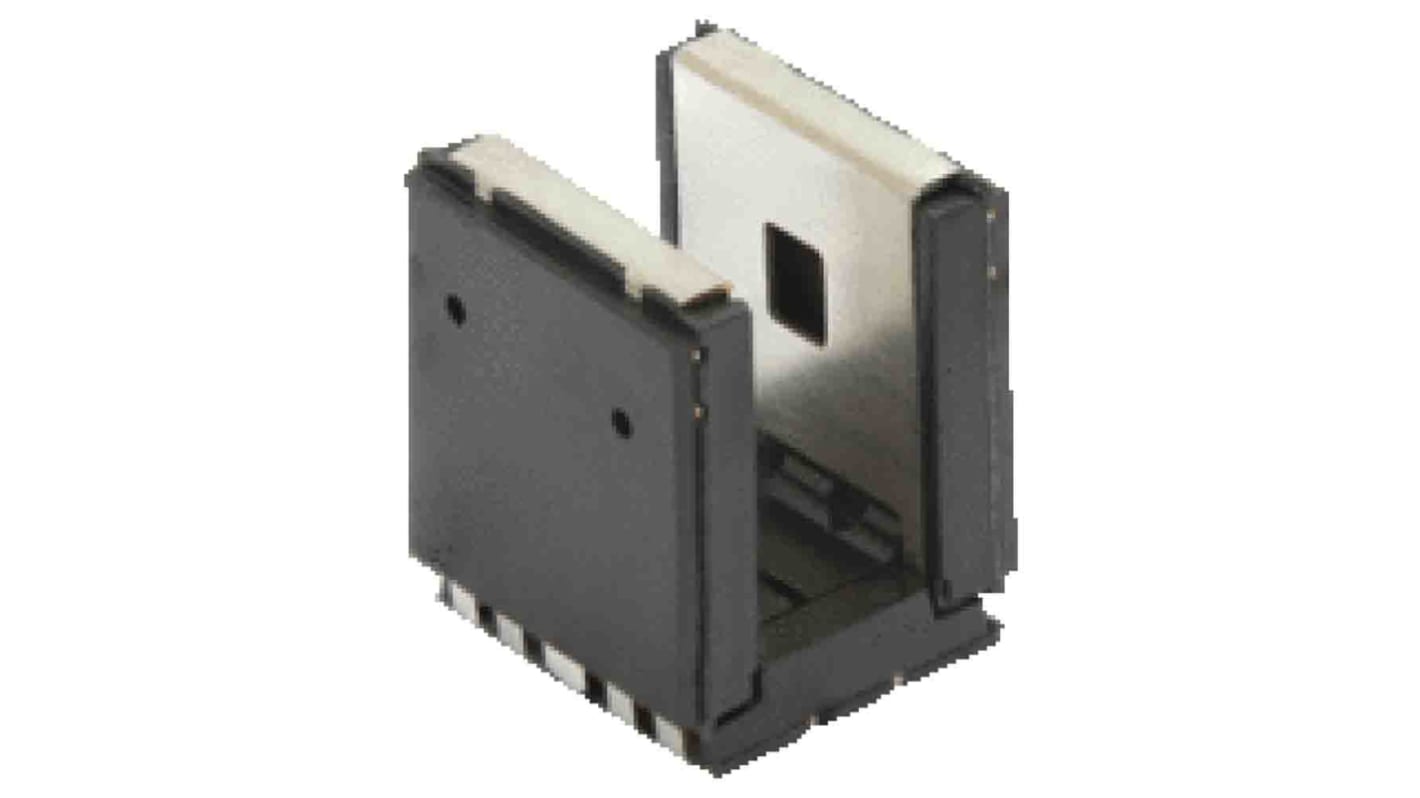

The TCUT1630X01 is a compact transmissive sensor that includes an infrared emitter and three phototransistor detectors, located face-to-face in a surface-mount package. The tall dome design supports an additional transistor and additional mechanical room for vertical signal encoding.
Package type: surface-mount
Detector type: phototransistor
Dimensions (L x W x H in mm): 5.5 x 5.85 x 7
Gap (in mm): 3
Aperture (in mm): 0.3
Typical output current under test: IC = 1.3 mA
Emitter wavelength: 950 nm
Lead (Pb)-free soldering released
Moisture sensitivity level (MSL): 1
Applications
Automotive optical sensors
Accurate position sensor for encoder
Sensor for motion, speed, and direction
Sensor for “turn and push” encoding
Detector type: phototransistor
Dimensions (L x W x H in mm): 5.5 x 5.85 x 7
Gap (in mm): 3
Aperture (in mm): 0.3
Typical output current under test: IC = 1.3 mA
Emitter wavelength: 950 nm
Lead (Pb)-free soldering released
Moisture sensitivity level (MSL): 1
Applications
Automotive optical sensors
Accurate position sensor for encoder
Sensor for motion, speed, and direction
Sensor for “turn and push” encoding
Spécifications
Attribut | Valeur |
|---|---|
| Output Device | Phototransistor |
| Number of Channels | 3 |
| Typical Rise Time | 9µs |
| Typical Fall Time | 16µs |
| Mounting Type | Surface Mount |
| Package Type | SMD |
| Number of Pins | 10 |
| Dimensions | 5.7 x 5.9 x 7.1mm |
| Height | 7.1mm |
| Length | 5.7mm |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -40°C |
| Slot Width | 3mm |
| Width | 5.9mm |
| Automotive Standard | AEC-Q101 |
| Operating Temperature Range | -40 → +105°C |
