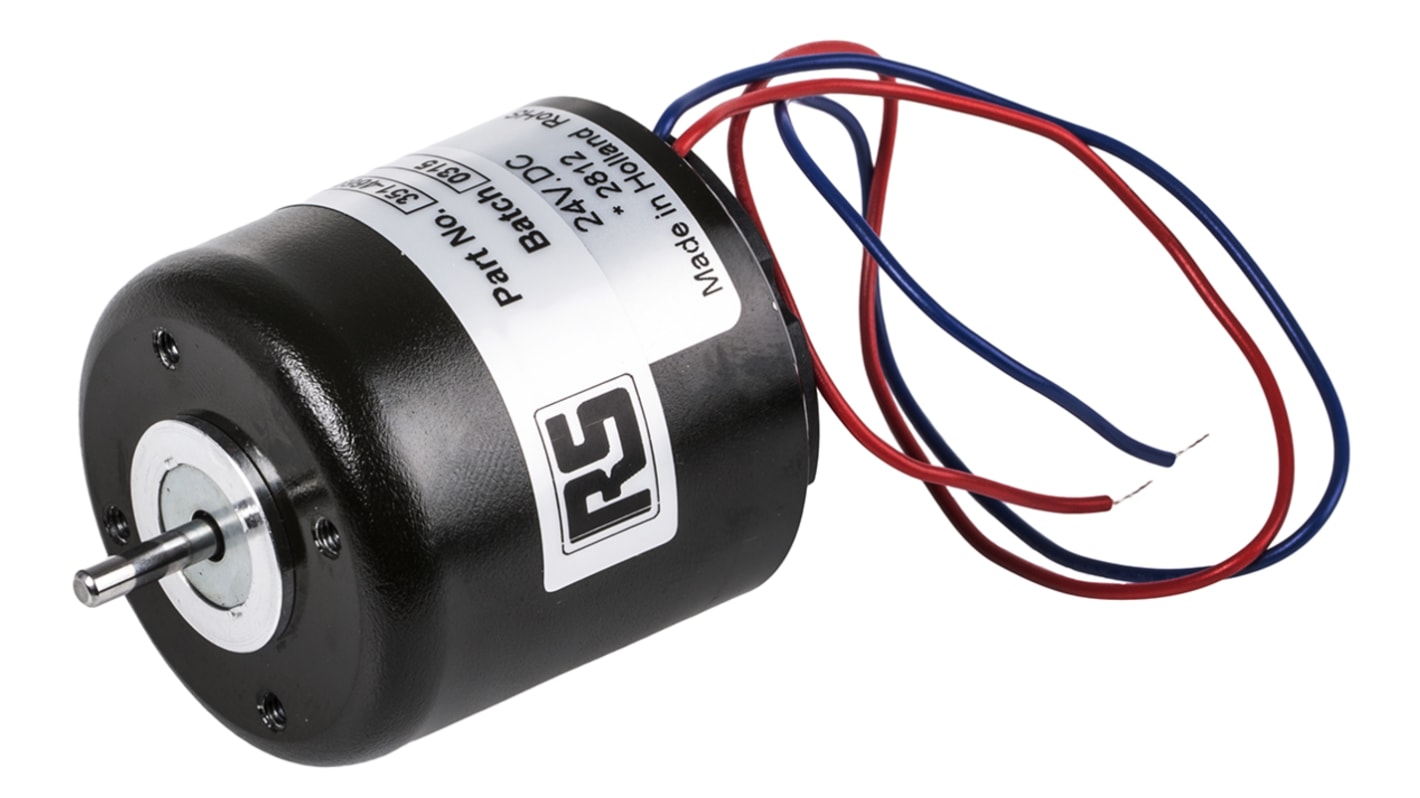

McLennan Servo Supplies 24 V 12 W Servo Motor, 4000 rpm, 13.5 Ncm Max Output Torque, 3mm Shaft Diameter
- N° de stock RS:
- 351-4669
- Référence fabricant:
- 9904 120 15211
- Fabricant:
- McLennan Servo Supplies
En cours d'approvisionnement - expédition le 25/06/2024, livraison sous 4 jour(s)
Ajouté
Prix la pièce
145,14 €
(TVA exclue)
175,62 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 2 | 145,14 € |
| 3 - 4 | 140,79 € |
| 5 + | 136,45 € |
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
- N° de stock RS:
- 351-4669
- Référence fabricant:
- 9904 120 15211
- Fabricant:
- McLennan Servo Supplies
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- NL
Détails du produit
40mm Servo Motor, MR Series
This ironless rotor servo motor provides all the essential features, necessary to achieve high performance servo operation, at an economic price.
Skewed coreless design for low inertia
High peak torque for rapid acceleration, deceleration and reversal
Precious metal commutation which provides accurate motor control
Smooth operation, free from cogging over a wide speed range
Low inertia characteristics ensures a rapid response in servo applications
May be fitted with an optional ovoid gearbox for increased torque and for output speed reduction
High peak torque for rapid acceleration, deceleration and reversal
Precious metal commutation which provides accurate motor control
Smooth operation, free from cogging over a wide speed range
Low inertia characteristics ensures a rapid response in servo applications
May be fitted with an optional ovoid gearbox for increased torque and for output speed reduction
Mclennan Servo Supplies
Spécifications
Attribut | Valeur |
|---|---|
| Maximum Output Torque | 13.5 Ncm |
| Supply Voltage | 24 V |
| Output Speed | 4000 rpm |
| Power Rating | 12 W |
| Stall Torque | 2.6Ncm |
| Shaft Diameter | 3mm |
| Length | 39.9mm |
| Width | 40mm |
