Okdo Bulk ROCK 5 Model B 8 GB Single Board Computer- Box of 50

N° de stock RS:: 250-2785
Référence fabricant:: RS119-D8P1-B
Fabricant:: Okdo

Okdo Bulk ROCK 5 Model B 8 GB Single Board Computer- Box of 50

Offre groupée disponible

Price L'unité (en boîte de 50)**

137,45 €

(TVA exclue)

166,31 €

(TVA incluse)

450 En stock pour livraison sous 4 jour(s)*

* Les dates de livraison peuvent varier selon la quantité choisie et l'adresse de livraison.

FRAIS de livraison offerts pour toute commande de plus de 75,00 €

Vérifier le stock en temps réel

Unité	Prix par unité	La Boite**
50 - 100	137,45 €	6 872,50 €
150 - 200	133,202 €	6 660,10 €
250 +	128,01 €	6 400,50 €

**Prix donné à titre indicatif

N° de stock RS:: 250-2785
Référence fabricant:: RS119-D8P1-B
Fabricant:: Okdo

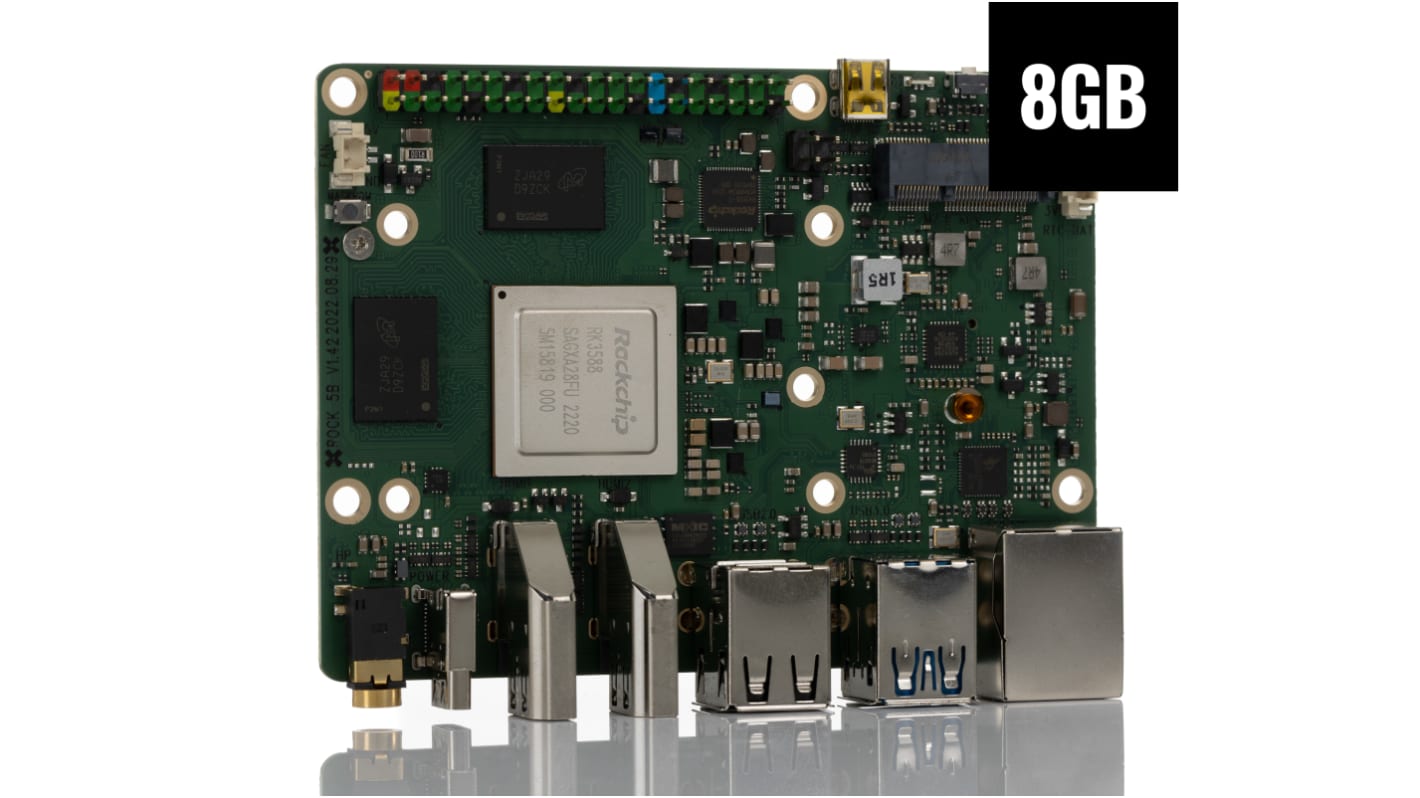

Join the SBC evolution with the ROCK 5B board from OKdo, our sister IoT specialist emerging technology company. The ROCK 5B truly takes performance to a new level with the super powerful Rockchip RK3588 SoC, packed with some incredible class-leading features, such as 8K displays (yes 8K!) and Android support, capable to run even the most demanding multimedia and industrial applications. With a Quad Arm Cortex A76 CPU, Quad Arm DynamIQ Cortex A55 and an Arm Mali G610MC4 GPU, the ROCK 5B is a robust and high-performing single board computer that incorporates an onboard stereo audio jack, on/Off power button, dual HDMI ports supporting displays up to 8Kp60 resolution, a fan connector and an eMMC socket.

What makes the ROCK 5B SBC incredible?

Reliable hardware - robust performance based on the Rockchip RK3588 SoC, Arm DynamIQ Quad Cortex - A76 @ 2.2/2.4GHz, Quad Cortex - A55 @ 1.8GHz CPU, Arm Mali - G610MC4 GPU and 8GB 64bit LPDDR4 RAM.

Incredible 8K display support - the Arm Mali G610MC4 graphics processing unit (GPU) allows the ROCK 5B to support the most advanced multimedia applications, including games, videos, and signage, supporting dual displays up to 8Kp60 and 4Kp60 resolution.

Power On/Off button - allows safe shutdowns with no risk of corrupting storage.

Compatible with several operating systems - including Android 12, Debian/Ubuntu Linux, the full implementation of the Arm architecture v8 instructions set, and others.

Extensive storage capacity – features 8GB RAM and a high-speed eMMC socket for eMMC modules which can be used for OS and data storage.

40-pin GPIO expansion header - supports a wide range of interface options.

PWM fan connector – with this onboard fan connector and 2 heatsink mounting holes, the ROCK 5B will stand anything, no matter how high-performance your application may be.

Technical specifications

SoC: Rockchip RK3588

Processor: Arm DynamIQ (Quad Cortex - A76 @ 2.2/2.4GHz, Quad Cortex - A55 @ 1.8GHz)

GPU: Arm Mali G610MC4 GPU, supporting OpenGL® ES1.1, ES2.0, and ES3.2, OpenCL® 1.1, 1.2 and 2.2, Vulkan® 1.1 and 1.2, and embedded high-performance 2D image acceleration module

Memory: 64bit LPDDR4 RAM

Power Requirements: USB Type‑C™ PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A; 5V Power applied to the GPIO PIN 2 & 4. The recommended power source capacity is at least 24W without a M.2 SSD or 36W with a M.2 SSD

HDMI: Dual HDMI ports supporting displays up to 8Kp60 resolution and 4Kp60; Micro-HDMI input port supporting up to 4Kp60 resolution

USB: 2x USB2 HOST ports, 1x USB3 HOST port, 1x USB3 OTG/HOST port

MIPI: 1x 4 lane DSI, 1x 4 lane CSI

Storage: Micro SD / eMMC

UARTS: 2x UART

On/Off Power Button: Yes

Software: Full implementation of the Arm architecture v8 instructions set, Debian/Ubuntu Linux support, Android 12 support, RKNPU2 NPU software stack, Hardware access/control library for Linux/Android

Temperature: Operation temperature: 0∼50 ℃ / Storage temperature: -20∼80 ℃

Let's work together

OKdo has manufacturing capabilities and technical engineering consultants to support long-term stock availability and design longevity. If you would like to collaborate on your next project, let’s design the future together: contact sales@okdo.com

Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.

Sélectionner tout	Attribut	Valeur
	Marque	Okdo
	Product Name	Bulk ROCK 5 Model B 8 GB Single Board Computer- Box of 50
	RAM Size	8 GB
	Model Number	5B
	Port Connections	CSI, DSI, HDMI, M.2, OTG, USB2, USB3
	Video Resolution	8Kp60
	Operating System	Android, Arm Architecture, Debian, Linux

	Sélectionner tout
	Marque Okdo
	Product Name Bulk ROCK 5 Model B 8 GB Single Board Computer- Box of 50
	RAM Size 8 GB
	Model Number 5B
	Port Connections CSI, DSI, HDMI, M.2, OTG, USB2, USB3
	Video Resolution 8Kp60
	Operating System Android, Arm Architecture, Debian, Linux
