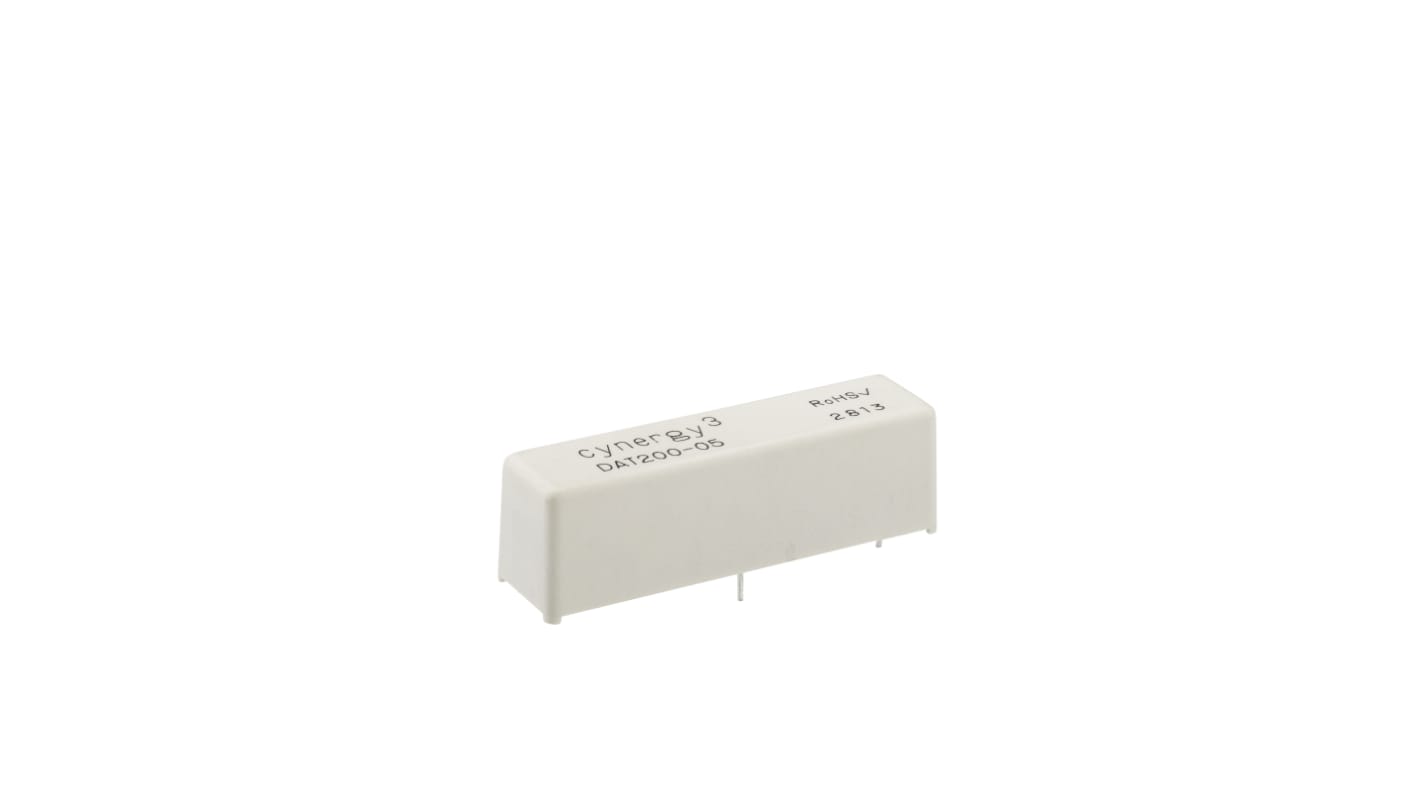

Sensata Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 2500V dc Max, 3 A Max, 28Ω

Voir l’ensemble des Reed Relays
Actuellement indisponible
Nous ne savons pas si cet article sera de nouveau disponible. RS a l'intention de le retirer de son assortiment sous peu.
N° de stock RS:
817-2305
Référence fabricant:
DAT200-05
Fabricant:
Sensata / Cynergy3
Recherchez des produits similaires en sélectionnant un ou plusieurs attributs.
Sélectionner tout

Marque

Sensata / Cynergy3

Contact Configuration

SPST

Coil Voltage

5V dc

Mounting Type

PCB Mount

Maximum Switching Current AC

3 A

Maximum Switching Current DC

3 A

Maximum Switching Voltage AC

2500V ac

Maximum Switching Voltage DC

2500V dc

Coil Resistance

28Ω

Length

60mm

Height

18.5mm

Depth

15.8mm

Dimensions

60 x 15.8 x 18.5mm

Isolation Coil To Contact

17kV

Maximum Switching Power DC

200 W

Operating Time Including Bounce

6ms

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-20°C

Contact Resistance

600 mΩ

Contact Material

Tungsten

Terminal Type

PCB Pin

Operating Temperature Range

-20 → +70°C

Life

1000000 (50 W) operations, 1000000000 (Dry) operations

Pays d'origine :
GB

Sensata Cynergy3 PCB Mount Reed Relay, SPNO, 200W Switching Power - D200 Series - DAT200-05


Use this high-performance relay from Sensata Cynergy3 to control reed switches in your industrial liquid detection systems. This device uses an electromagnet to generate a current when voltage is applied to it. The current produces an electric field that closes the switch's contacts to turn pumps on for automated operation. Thanks to its switching power of up to 200W, this device is suitable for use in heavy-duty industrial applications. Its tungsten contacts are highly conductive and have a low resistance of 600mΩ, helping to ensure a stable connection. This reed relay is an essential component of control systems in water treatment plants.

Features & Benefits


• Designed for direct mounting onto PCBs for a secure and simple connection
• Broad operating temperature range of -20ºC to +70ºC for use in demanding environments
• Fast operating time of 6ms for rapid switching
• Switching voltage of 2500V AC/DC for use in high-power systems

How long will this reed relay last?


This reed relay has a robust lifespan of one billion dry switching operations, making it a long-lasting choice.


Cynergy3 - D200 relay series
