TE Connectivity CFP2 Connector, Cage & Heatsink Female 2-Port 11-Position, 2287075-2
- N° de stock RS:
- 172-0618
- Référence fabricant:
- 2287075-2
- Fabricant:
- TE Connectivity
En cours d'approvisionnement - expédition le 12/08/2024, livraison sous 4 jour(s)
Ajouté
Prix L'unité (en boîte de 12)
112,241 €
(TVA exclue)
135,812 €
(TVA incluse)
| Unité | Prix par unité | La Boite* |
| 12 - 108 | 112,241 € | 1 346,892 € |
| 120 + | 102,11 € | 1 225,32 € |
| *prix conseillé | ||
- N° de stock RS:
- 172-0618
- Référence fabricant:
- 2287075-2
- Fabricant:
- TE Connectivity
Documentation technique
Législations et de normes
Détails du produit

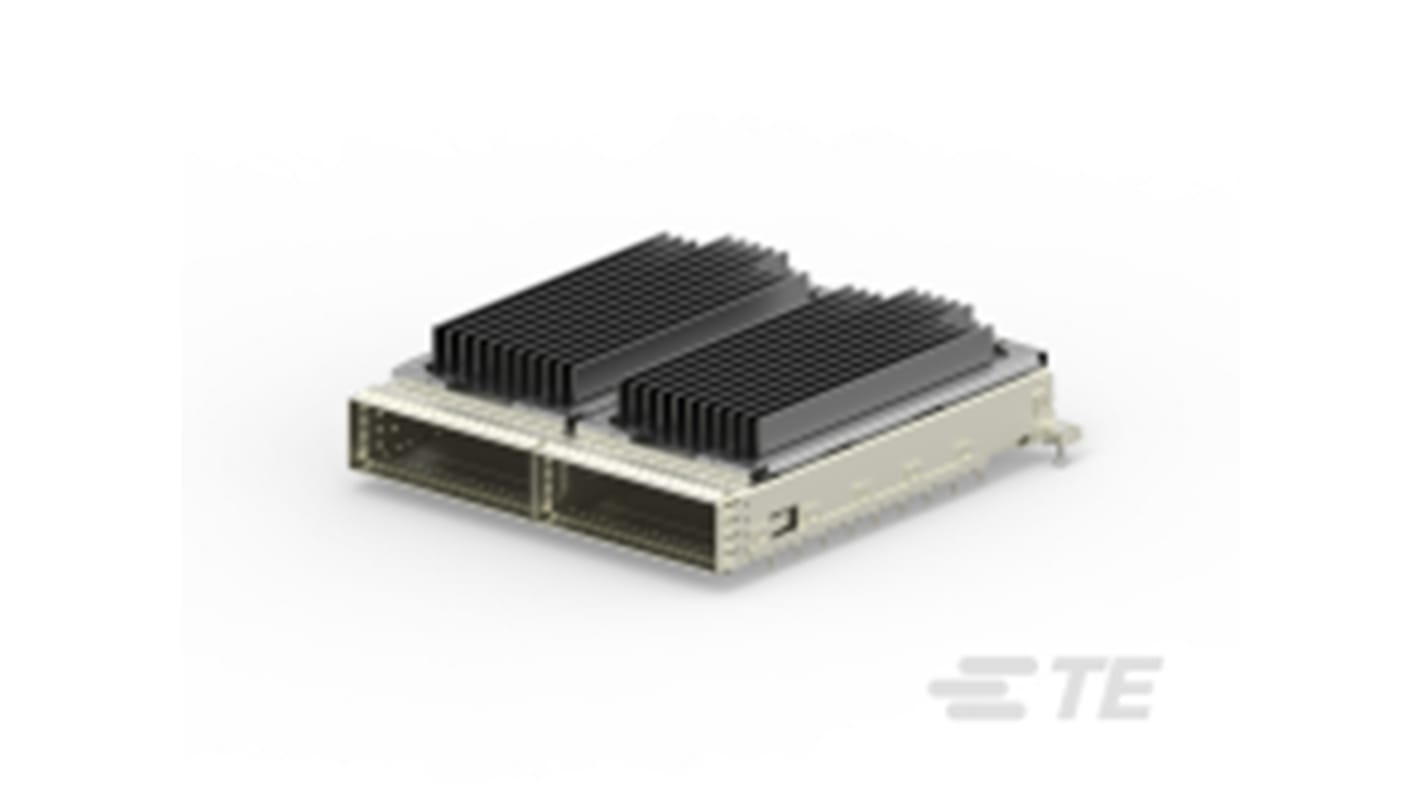

TE Connectivity Network Connector
The TE Connectivity CFP2 is an 11-way 2-port female right angle network connector. It is designed to accelerate data transmission, improve signal integrity and thermal performance of critical systems. The CFP2 series interconnects transfers data 2.8 times faster than current CFP products, achieving 28Gbps per lane for less than 100Gbps Ethernet (and other protocols) in a high density. This connector provides excellent signal integrity and features a ruggedized cage construction for a robust solution and ensures reliable connections.
Features and Benefits
• Pitch size is 0.6mm
• Pluggable I/O connectors
• Press-in termination method
• Voltage rating is 120VAC
• Pluggable I/O connectors
• Press-in termination method
• Voltage rating is 120VAC
Applications
• Carrier networks
• Datacentres
• Large datacentre campus connectivity
• Metro area networks
• Datacentres
• Large datacentre campus connectivity
• Metro area networks
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• BS EN 61340-5-1:2007
Spécifications
Attribut | Valeur |
|---|---|
| Type | Connector, Cage & Heatsink |
| Form Factor | CFP2 |
| Gender | Female |
| Body Orientation | Right Angle |
| Number of Ports | 2 |
| Number of Contacts | 11 |
| Voltage Rating | 120 V |
| Termination Method | Press-In |
| Series | CFP2 |
