- N° de stock RS:
- 137-1430
- Référence fabricant:
- LFC037CTP
- Fabricant:
- VCC
250 En stock, livraison sous 1 jour(s) (stock Europe)
200 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix L'unité (en paquet de 25)
0,382 €
(TVA exclue)
0,462 €
(TVA incluse)
Unité | Prix par unité | le paquet* |
25 - 225 | 0,382 € | 9,55 € |
250 - 600 | 0,298 € | 7,45 € |
625 - 1225 | 0,24 € | 6,00 € |
1250 - 2475 | 0,226 € | 5,65 € |
2500 + | 0,22 € | 5,50 € |
*prix conseillé |
- N° de stock RS:
- 137-1430
- Référence fabricant:
- LFC037CTP
- Fabricant:
- VCC
Documentation technique
Législations et de normes
Détails du produit

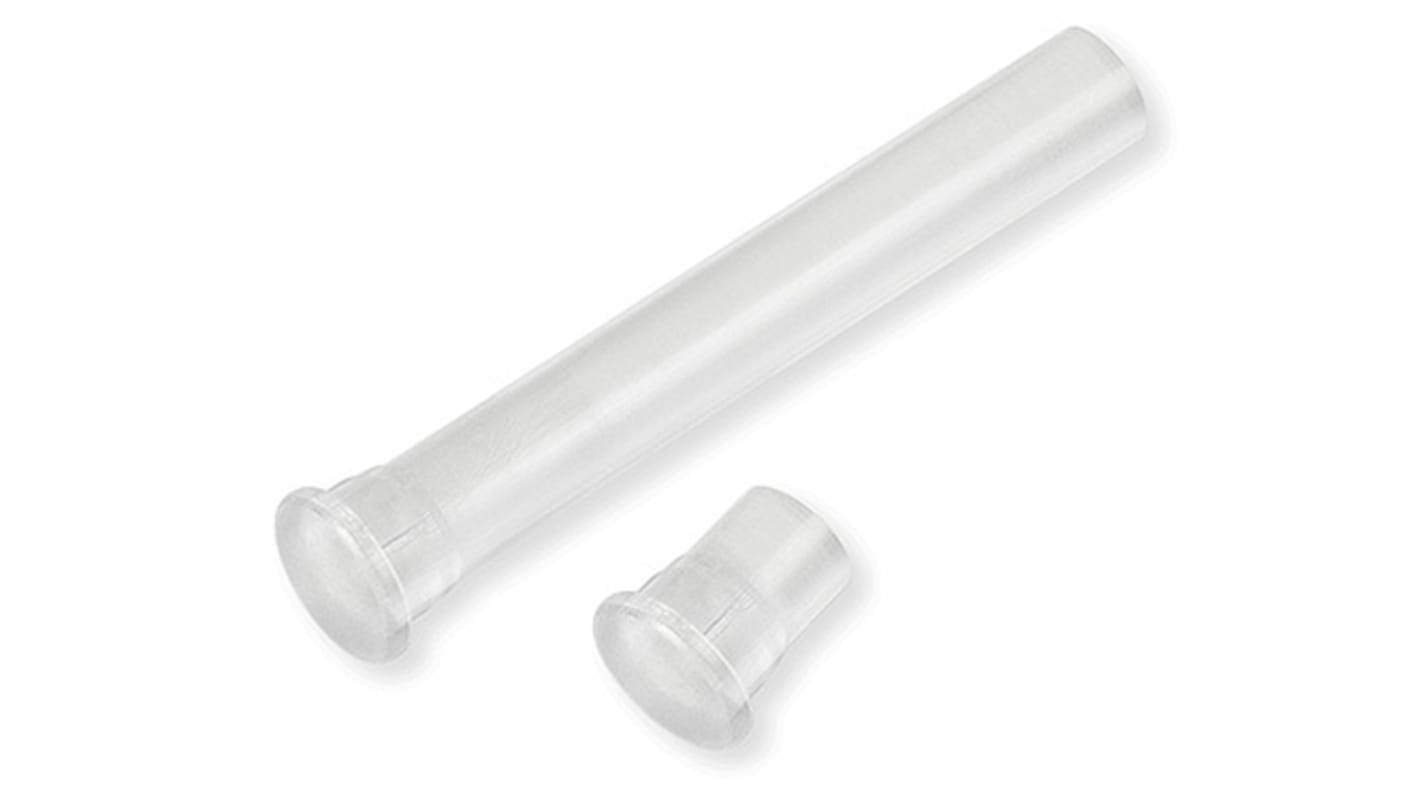

LFC Series Press Fit Low Profile 5mm Light Pipes
The VCC LFC Series of 5mm low profile rigid light pipes feature a diffused round surface to provide uniform brightness and a wide viewing angle of 120°. They are front panel press-fit mounting with crushable ribs that simplify installation. The light pipes are available in a wide variety of lengths to accommodate differing PCB to front panel distances. An optional retainer (RTN125) for high-vibration environments is available for LFB Series of light pipes; see RS 1371-321.
Low profile, flush panel design
For use with SMT or through-hole LEDs
Optical grade polycarbonate for maximum light transmission
Wide range of standard lengths
Wide viewing angle of 120°
Frosted surface diffuses light and provides uniform brightness
For use with SMT or through-hole LEDs
Optical grade polycarbonate for maximum light transmission
Wide range of standard lengths
Wide viewing angle of 120°
Frosted surface diffuses light and provides uniform brightness
LED Light Pipes - VCC
Spécifications
Attribut | Valeur |
---|---|
Flexible/Rigid | Rigid |
Length | 9.5mm |
Orientation | Straight |
Dimensions | 5 (Dia.) x 9.5mm |
Mounting Type | Panel Mount |
LED Colours | Clear |
Lens Shape | Round |
LED Included | Yes |
Lens Colour | Clear |
Inner Diameter | 3.86mm |
Outer Diameter | 5mm |
Series | LFC |
