FTDI Chip RS232 USB A DB-9 Male Converter Cable
- N° de stock RS:
- 216-8424
- Référence fabricant:
- UC232R-10-NE
- Fabricant:
- FTDI Chip
110 En stock pour livraison sous 1 jour(s)
Ajouté
Prix L'unité (en boîte de 10)
34,539 €
(TVA exclue)
41,792 €
(TVA incluse)
| Unité | Prix par unité | La Boite* |
| 10 + | 34,539 € | 345,39 € |
| *prix conseillé | ||
- N° de stock RS:
- 216-8424
- Référence fabricant:
- UC232R-10-NE
- Fabricant:
- FTDI Chip
Documentation technique
Législations et de normes
Détails du produit

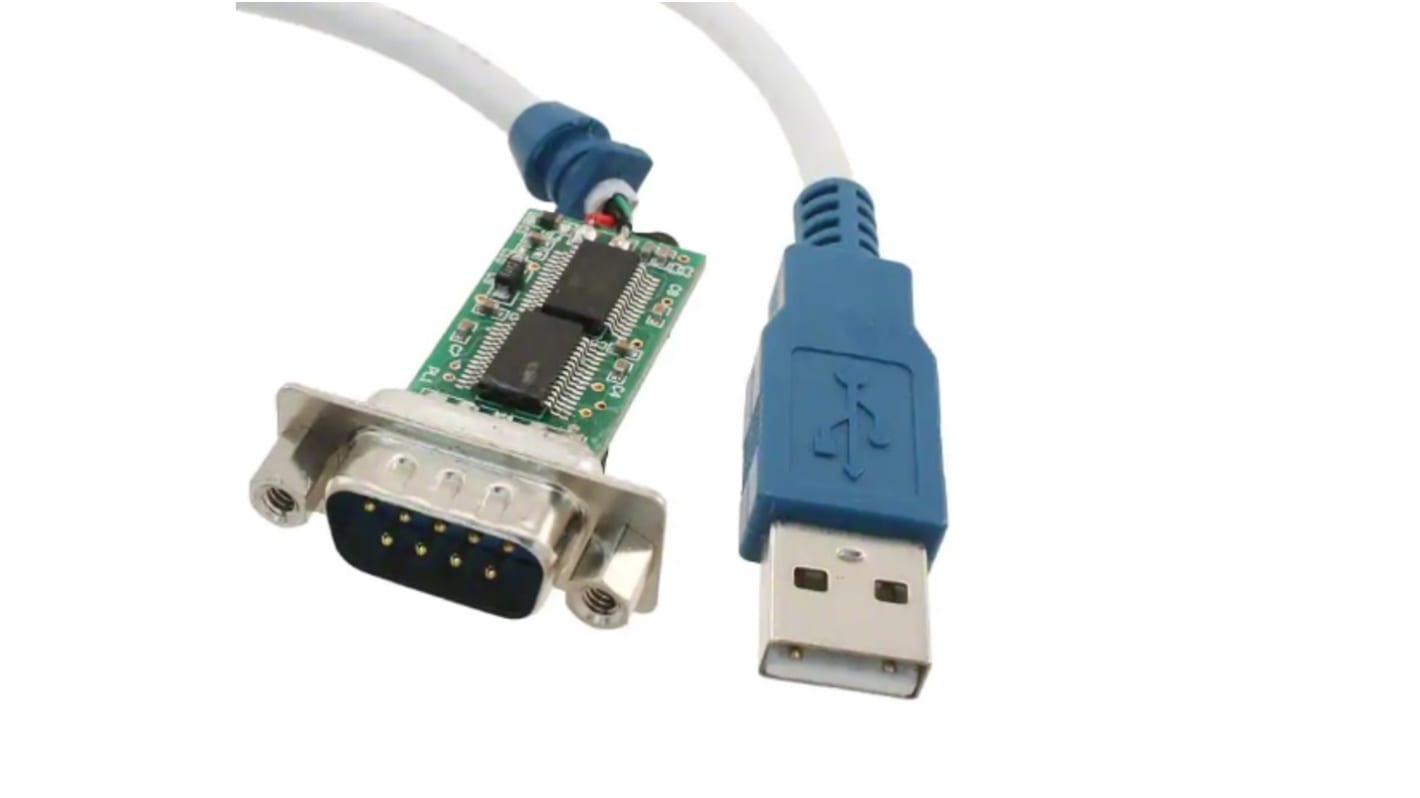

The FTDI Chip UC232R "ChiPi" module is a basic minimum component USB - RS232 converter. Using the FT232R with an RS232 level converter and a few additional components, the UC232R is a CE and FCC approved module that is one of the simplest USB - RS232 solutions around. Using a standard DB9 connector and powered from the USB port, the ChiPi can be used with the VCP drivers to provide a COM port on a PC which is capable of communication rates with RS232 devices from 300 baud up to 230kBaud.
UC232R Converter Cable provides USB to RS232 (DB9) interface
FCC and CE Class B Approval
Full design files available from FTDI website
FT232RL provides single chip USB to
asynchronous serial data transfer interface
FCC and CE Class B Approval
Full design files available from FTDI website
FT232RL provides single chip USB to
asynchronous serial data transfer interface
Spécifications
Attribut | Valeur |
|---|---|
| Bus Type | RS232 |
| Connector A | USB A |
| Connector B | DB-9 |
| Connector B Gender | Male |
| USB Standard | USB 2.0 |
| Maximum Baud Rate | 230kbit/s |
