RS PRO Insulated Crimp Spade Connector, 0.2mm² to 0.5mm², 26AWG to 22AWG, M5 Stud Size Nylon, Yellow
- N° de stock RS:
- 239-4206
- Fabricant:
- RS PRO
700 En stock, livraison sous 1 jour(s) (stock Europe)
5100 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix L'unité (en paquet de 100)
0,053 €
(TVA exclue)
0,064 €
(TVA incluse)
| Unité | Prix par unité | le paquet* |
| 100 - 400 | 0,053 € | 5,30 € |
| 500 - 2400 | 0,044 € | 4,40 € |
| 2500 + | 0,039 € | 3,90 € |
| *prix conseillé | ||
- N° de stock RS:
- 239-4206
- Fabricant:
- RS PRO
Documentation technique
Législations et de normes
- Pays d'origine :
- TW
Détails du produit

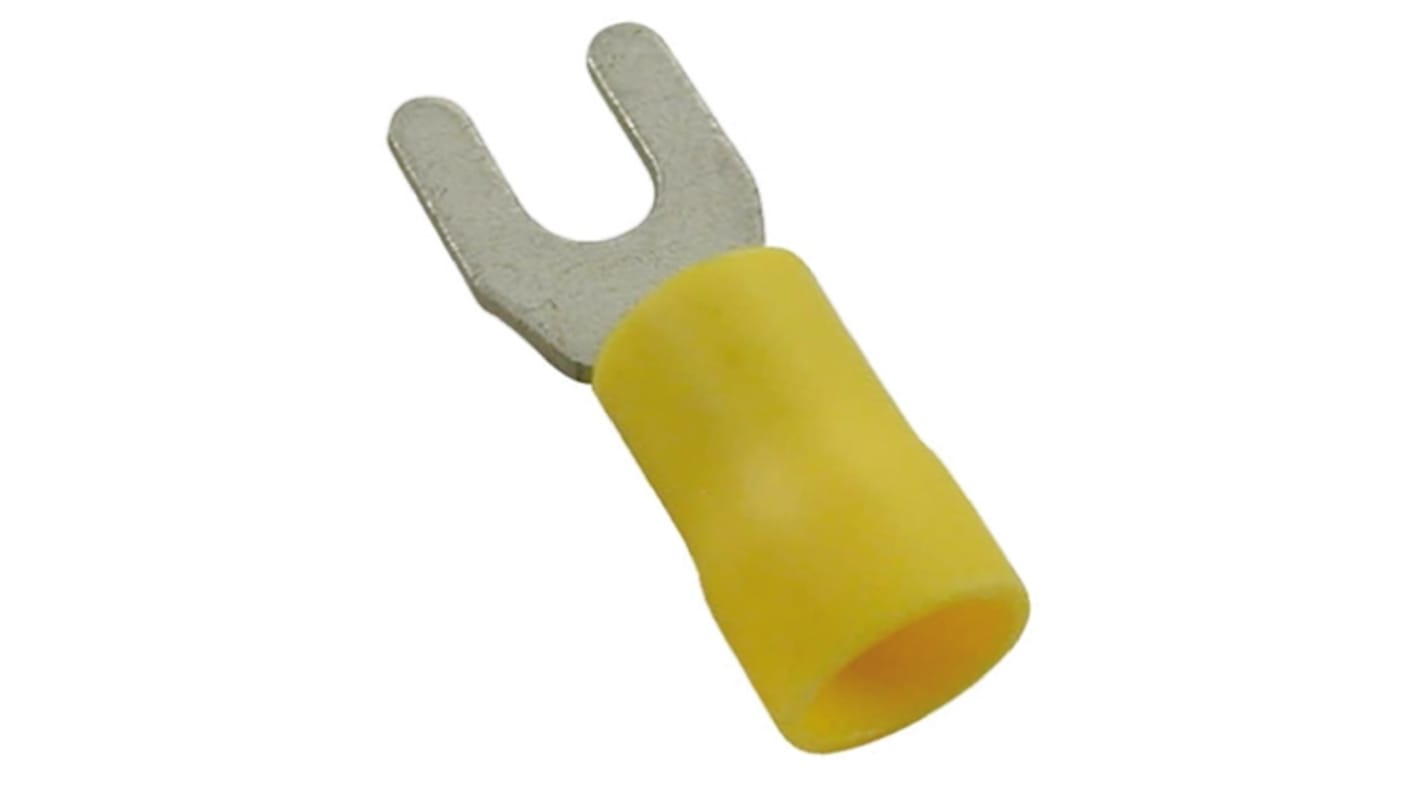

RS PRO Insulated Spade Connectors
These insulated crimp-spade terminals are your go-to solution for effortless wire termination without the hassle of soldering. Designed to connect wires to studs, bus bars, and more, they provide unmatched strength and durability with their copper construction and tin plating. But that's not all - these connectors are also insulated with a non-conductive, corrosion-resistant nylon material for ultimate safety and longevity.
Features and Benefits
- Insulated fork terminals
- Copper with a tin plating
- Colour coded to correspond with wire size
- Strength and durability
- All models are highly reliable and excellent quality
Spécifications
Attribut | Valeur |
|---|---|
| Insulation | Insulated |
| Insulation Material | Nylon |
| Width | 8mm |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Stud Size | M5 |
| Colour | Yellow |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.5mm |
