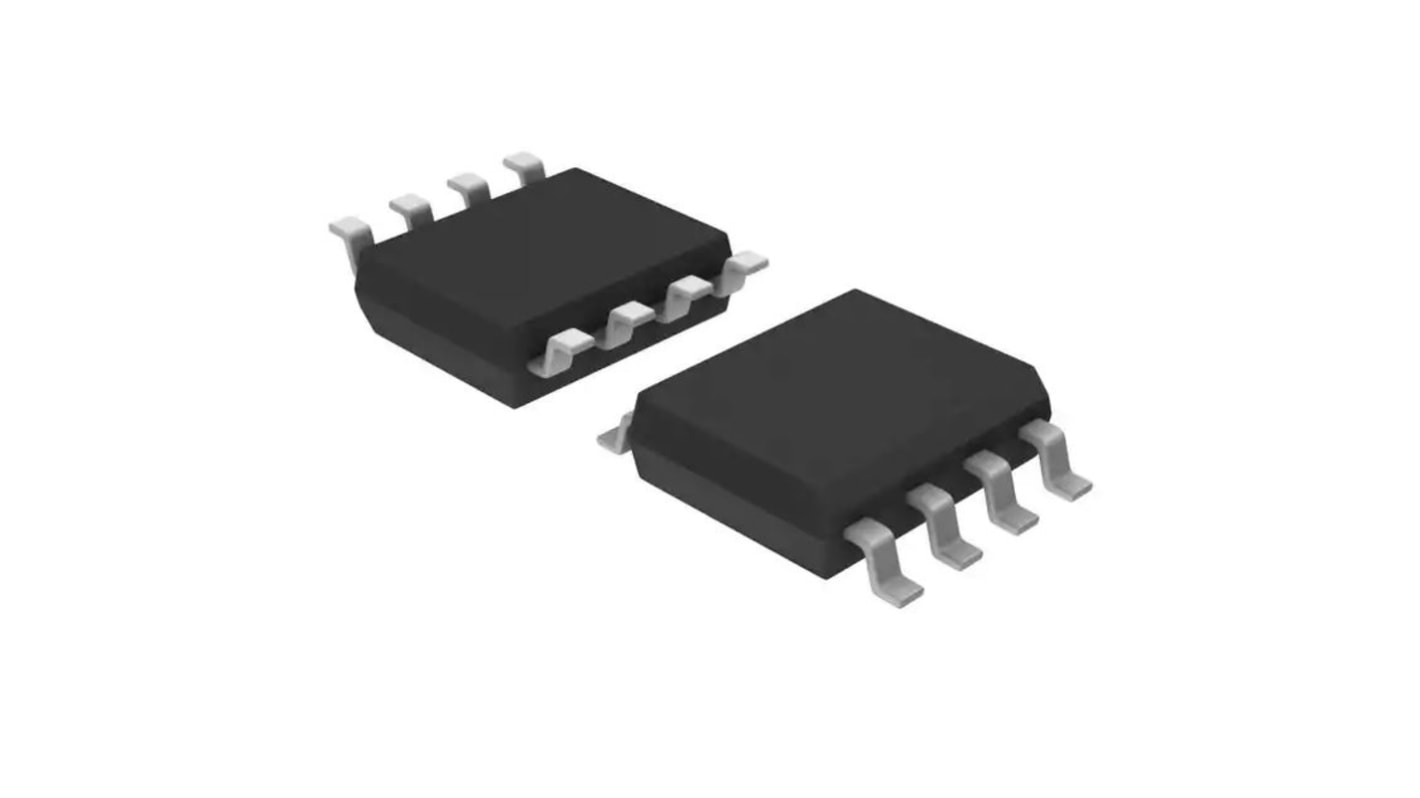

Alliance Memory NOR 2Mbit SPI Flash Memory 8-Pin SOIC, M45PE20-VMN6P
- N° de stock RS:
- 230-6240
- Référence fabricant:
- M45PE20-VMN6P
- Fabricant:
- Alliance Memory
En cours d'approvisionnement - expédition le 11/06/2024, livraison sous 4 jour(s)
Ajouté
Prix L'unité (dans un tube de 2000)
1,168 €
(TVA exclue)
1,413 €
(TVA incluse)
| Unité | Prix par unité | le tube* |
| 2000 + | 1,168 € | 2 336,00 € |
| *prix conseillé | ||
- N° de stock RS:
- 230-6240
- Référence fabricant:
- M45PE20-VMN6P
- Fabricant:
- Alliance Memory
Documentation technique
Législations et de normes
Détails du produit
The Alliance Memory M45PE20 is a 2-Mbit (256 Kbits x8) serial paged flash memory accessed by a high speed SPI-compatible bus. The memory can be written or programmed 1 to 256 bytes at a time, using the page write or page program instruction. The page write instruction consists of an integrated page erase cycle followed by a page program cycle.
SPI bus compatible serial interface
75 MHz clock rate
2.7 V to 3.6 V single supply voltage
2-Mbit, page-erasable flash memory
75 MHz clock rate
2.7 V to 3.6 V single supply voltage
2-Mbit, page-erasable flash memory
Spécifications
Attribut | Valeur |
|---|---|
| Memory Size | 2Mbit |
| Interface Type | SPI |
| Package Type | SOIC |
| Pin Count | 8 |
| Organisation | 256K x 8 |
| Mounting Type | Surface Mount |
| Cell Type | NOR |
| Minimum Operating Supply Voltage | 2.7 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Block Organisation | Symmetrical |
| Length | 5mm |
| Height | 1.25mm |
| Width | 4mm |
| Dimensions | 5 x 4 x 1.25mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Random Access Time | 8ns |
| Maximum Operating Temperature | +85 °C |
| Number of Bits per Word | 8bit |
| Series | M45PE |
| Number of Words | 256kB |
