- N° de stock RS:
- 254-4973
- Référence fabricant:
- 74FCT38072SCMGI
- Fabricant:
- Renesas Electronics
500 En stock pour livraison sous 1 jour(s)
Ajouté
Prix L'unité (en paquet de 5)
2,526 €
(TVA exclue)
3,056 €
(TVA incluse)
Unité | Prix par unité | le paquet* |
5 - 5 | 2,526 € | 12,63 € |
10 - 20 | 2,274 € | 11,37 € |
25 - 45 | 2,228 € | 11,14 € |
50 - 70 | 2,136 € | 10,68 € |
75 + | 2,092 € | 10,46 € |
*prix conseillé |
- N° de stock RS:
- 254-4973
- Référence fabricant:
- 74FCT38072SCMGI
- Fabricant:
- Renesas Electronics
Documentation technique
Législations et de normes
Détails du produit
The Renesas Electronics low skew, single input to two output, clock buffer. It has best in class additive phase Jitter of sub 50 fsec. Renesas makes many non-PLL and PLL based low skew output devices as well as zero delay buffers to synchronize clocks. Contact us for all of your clocking needs.
Low additive phase jitter RMS is 50 fs
Extremely low skew outputs (50 ps)
Low cost clock buffer

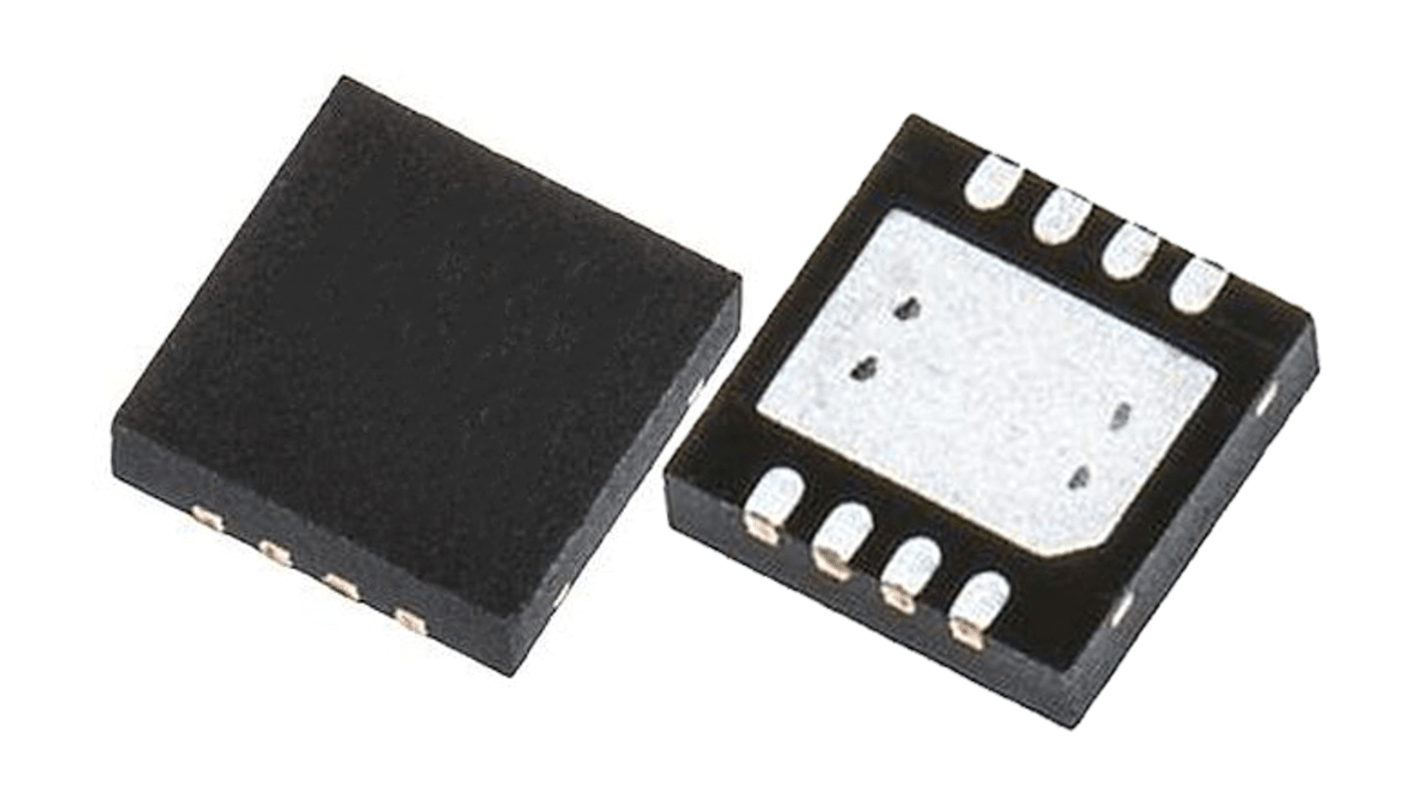

Packaged in 8-pin SOIC and 8-pin DFN, Pb-free
Input/Output clock frequency up to 200 MHz
Low power CMOS technology
Operating voltages of 1.8 V to 3.3 V
Extended temperature range (-40° to +105°C)
Extremely low skew outputs (50 ps)
Low cost clock buffer
Packaged in 8-pin SOIC and 8-pin DFN, Pb-free
Input/Output clock frequency up to 200 MHz
Low power CMOS technology
Operating voltages of 1.8 V to 3.3 V
Extended temperature range (-40° to +105°C)
Spécifications
Attribut | Valeur |
---|---|
Maximum Supply Current | 22 mA |
Maximum Input Frequency | 200MHz |
Mounting Type | Surface Mount |
Package Type | DFN |
Pin Count | 8 |
