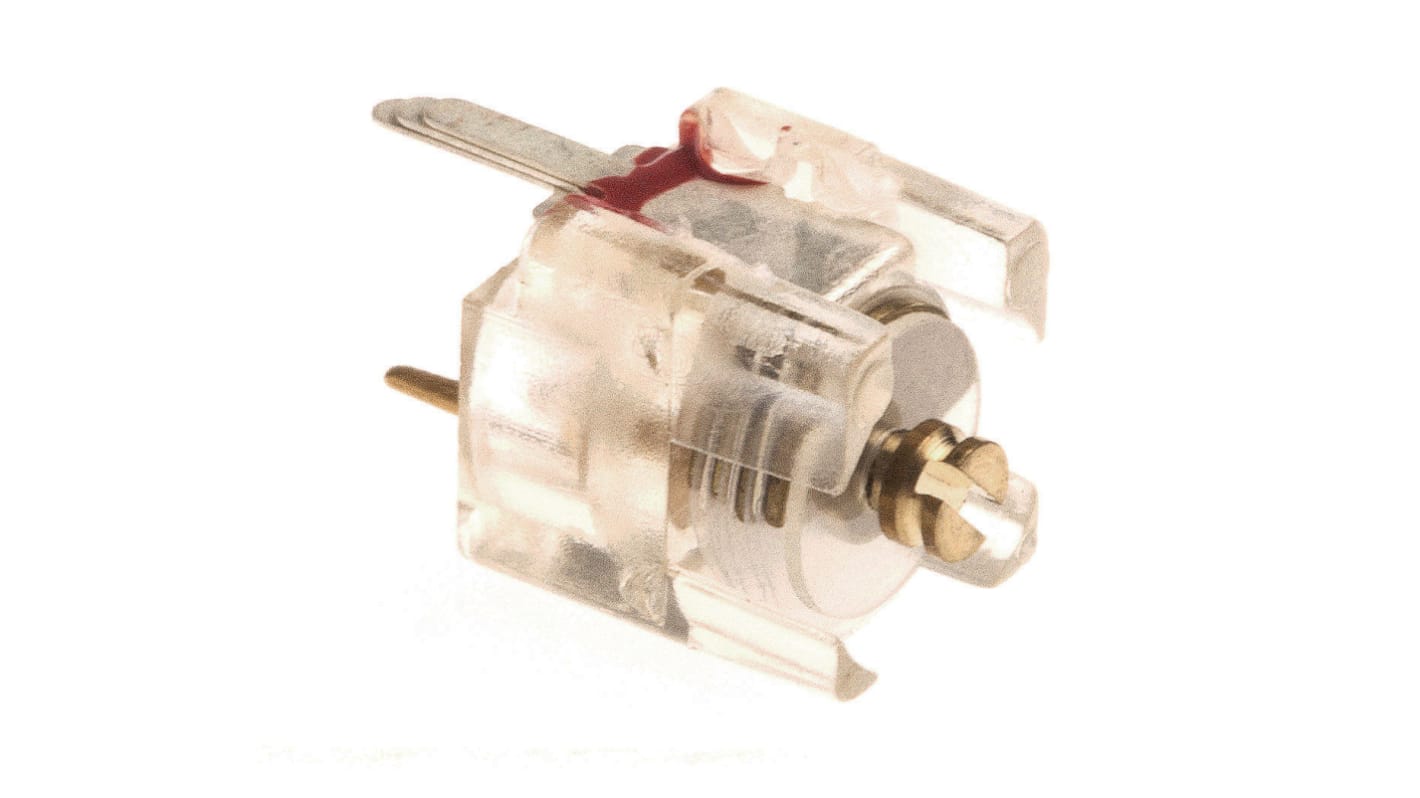

Vishay Variable Trimmer Capacitor 2 → 18pF 300V dc PTFE
- N° de stock RS:
- 380-236
- Référence fabricant:
- BFC280905217
- Fabricant:
- Vishay
Article en cours d'approvisionnement. Merci de bien vouloir nous contacter.
Ajouté
Prix L'unité (en paquet de 5)
10,876 €
(TVA exclue)
13,16 €
(TVA incluse)
| Unité | Prix par unité | le paquet* |
| 5 - 20 | 10,876 € | 54,38 € |
| 25 - 45 | 10,116 € | 50,58 € |
| 50 - 95 | 9,46 € | 47,30 € |
| 100 + | 8,808 € | 44,04 € |
| *prix conseillé | ||
- N° de stock RS:
- 380-236
- Référence fabricant:
- BFC280905217
- Fabricant:
- Vishay
Documentation technique
Législations et de normes
- Pays d'origine :
- CN
Détails du produit
200Vdc 809 series
Features
- High temperature type
- Housing dimensions: 6 mm x 8 mm x 9 mm
- For a basic grid of 2.54 mm
- Top and bottom adjustment
- Round head
- Mounting: Radial
- Housing dimensions: 6 mm x 8 mm x 9 mm
- For a basic grid of 2.54 mm
- Top and bottom adjustment
- Round head
- Mounting: Radial
Applications
- Antennas
- Impedance matching circuits
- Medical
- RF
- For fine adjustment in professional applications
- Impedance matching circuits
- Medical
- RF
- For fine adjustment in professional applications
PTFE Film
High temperature trimmer capacitors
Spécifications
Attribut | Valeur |
|---|---|
| Series | BFC2 |
| Voltage | 300V dc |
| Dielectric | PTFE |
| Package/Case | 0217 |
| Mounting Type | Through Hole |
| Dimensions | 7.4 x 6.7 x 9mm |
| Depth | 6.7mm |
| Height | 9mm |
| Length | 7.4mm |
| Capacitive Range | 2 → 18pF |
| Minimum Capacitance | 2pF |
| Maximum Capacitance | 18pF |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
