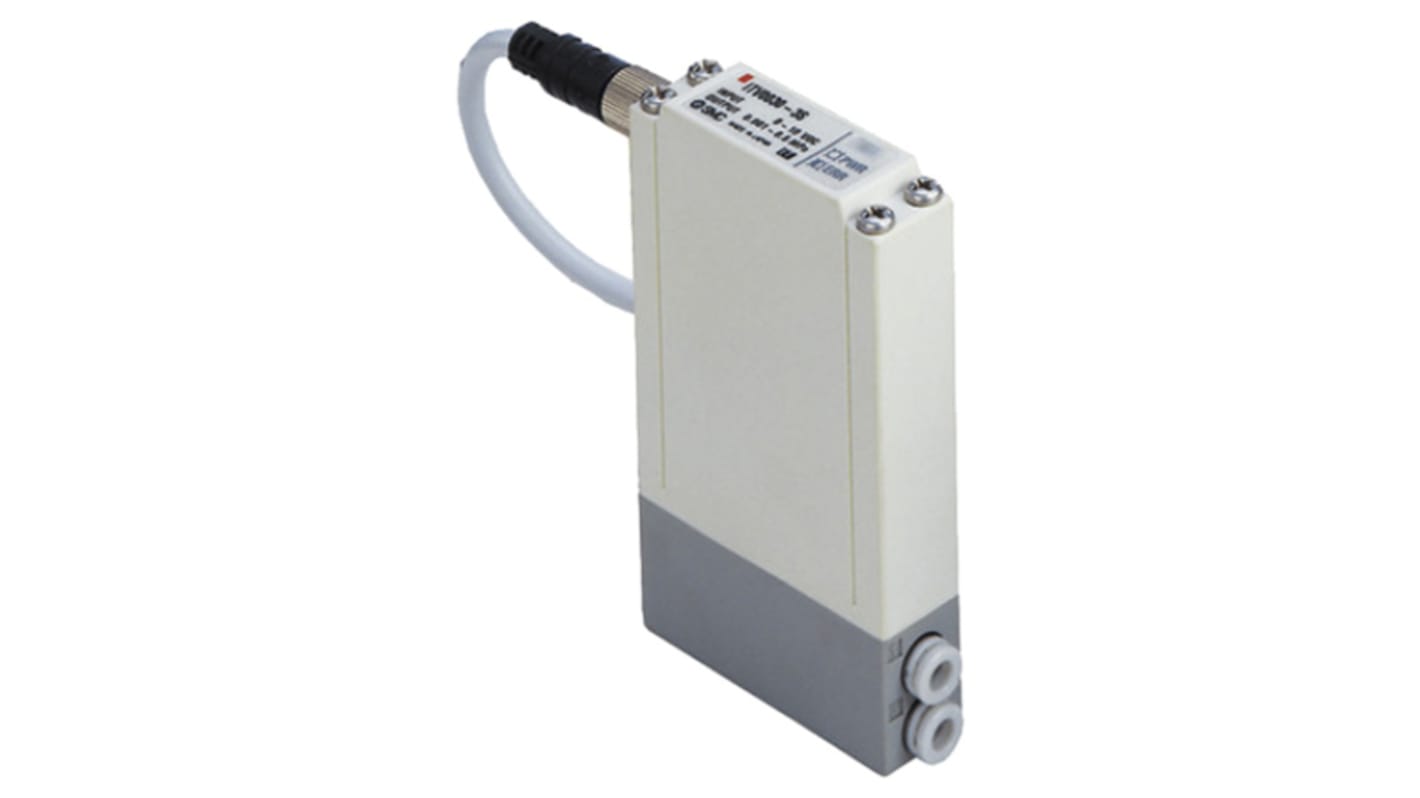

SMC Pneumatic Regulator - 0.001MPa to 0.1MPa, 0.2MPa max. input
- N° de stock RS:
- 873-2516
- Référence fabricant:
- ITV0010-0BS
- Fabricant:
- SMC
En cours d'approvisionnement - expédition le 31/05/2024, livraison sous 4 jour(s)
Ajouté
Prix la pièce
318,18 €
(TVA exclue)
385,00 €
(TVA incluse)
| Unité | Prix par unité |
| 1 + | 318,18 € |
Propositions de remplacement
Ce produit n'est pas disponible actuellement. Découvrez nos produits de remplacement:
- N° de stock RS:
- 873-2516
- Référence fabricant:
- ITV0010-0BS
- Fabricant:
- SMC
Documentation technique
Législations et de normes
Non conforme
- Pays d'origine :
- JP
Détails du produit
Compact Series ITV0000
Compact Series ITV0000 Electro-Pneumatic Pressure Regulators work on the principle that when the input signal rises, the air supply solenoid valve turns on. As a result, part of the supply pressure passes through the air supply solenoid valve, and changes to output pressure. This output pressure then feeds back to the control circuit through the pressure sensor. Pressure corrections within the ITV0000 continue until the output pressure becomes proportional to the input signal, enabling output pressure that is proportional to the input signal.
Spécifications
Attribut | Valeur |
|---|---|
| Maximum Outlet Pressure | 0.1MPa |
| Minimum Outlet Pressure | 0.001MPa |
| Maximum Input Pressure | 0.2MPa |
| Maximum Flow Rate | 6L/min |
| Integral Check Valve | Yes |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Overall Width | 15mm |
| Overall Length | 56mm |
| Overall Height | 86 (For Single Unit) mm, 89 (For Manifold) mm |
| Overall Dimensions | 56 x 15 x 86 (For Single Unit) mm, 56 x 15 x 89 (For Manifold) mm |
