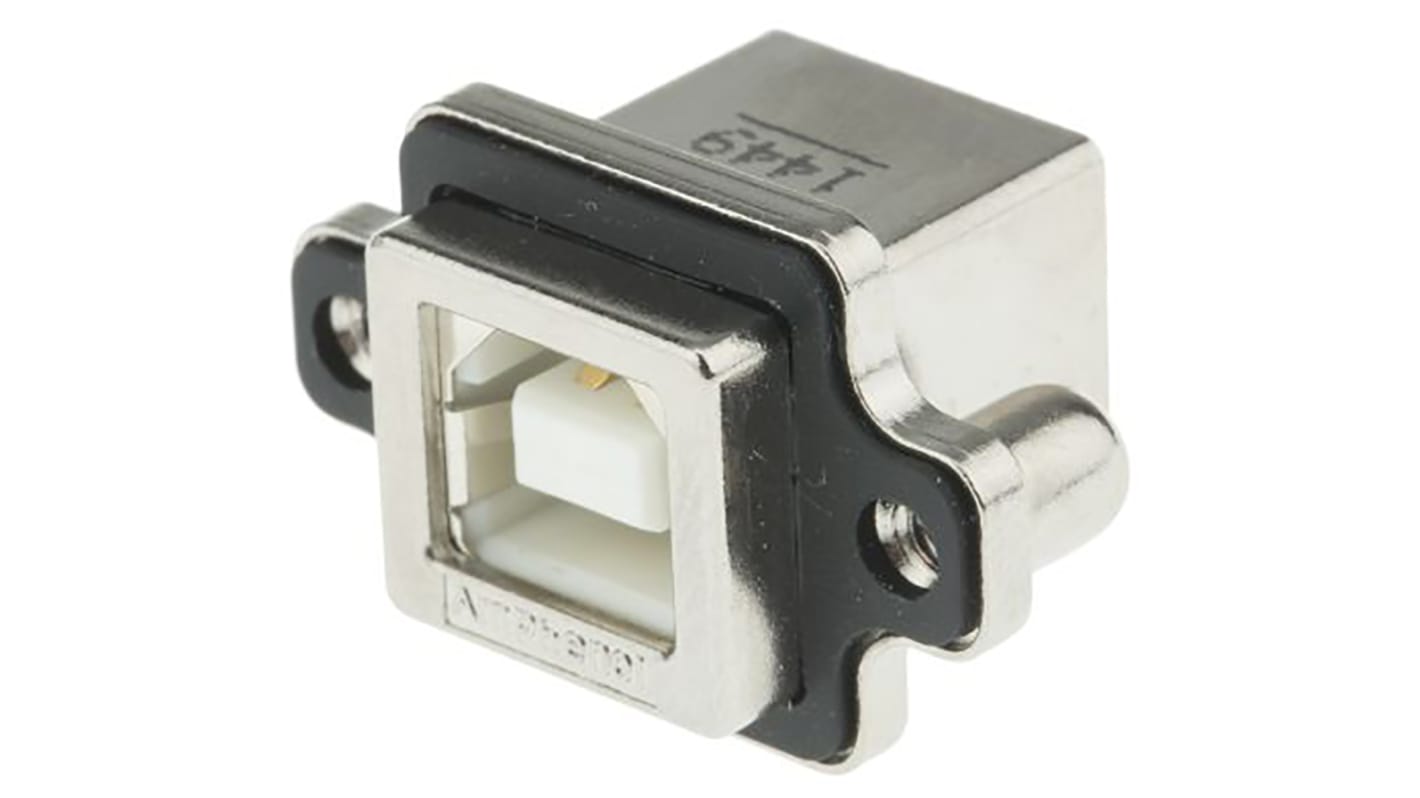

Amphenol ICC Right Angle, Through Hole, Socket Type B USB Connector
- N° de stock RS:
- 724-3235
- Référence fabricant:
- MUSBD11130
- Fabricant:
- Amphenol ICC
Article en cours d'approvisionnement. Merci de bien vouloir nous contacter.
Ajouté
Prix la pièce
8,86 €
(TVA exclue)
10,72 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 14 | 8,86 € |
| 15 - 24 | 8,04 € |
| 25 - 49 | 7,63 € |
| 50 - 99 | 7,15 € |
| 100 + | 6,81 € |
Produit de remplacement
Ce produit n'est pas disponible actuellement. Voici notre produit de remplacement:
- N° de stock RS:
- 724-3235
- Référence fabricant:
- MUSBD11130
- Fabricant:
- Amphenol ICC
Documentation technique
Législations et de normes
- Pays d'origine :
- CN
Détails du produit
USB Connectors, Harsh Environment - MUSB Series
Amphenol MUSB series USB connectors provide the ideal solution for data transfer in harsh environments that demand a robust and reliable connector . These USB connectors are underwater submersible rather than just water resistant in both mated and unmated conditions. Suitable for industrial, military communications, mobile and other demanding connector situations.
Features and Benefits:
• IP67 sealed in mated and unmated conditions
• Die cast connector shell with nickel plated finish
• UL94V-0 Black Housing
• Contact plating gold
• Current rating 1.5 Amps
• Voltage rating 100 Vdc @ -25°C → +85°C
• Dielectric withstanding voltage 500Vac, RMS, 60Hz 1 minute
• Operating temperature range -40°C → +105°C
• IP67 sealed in mated and unmated conditions
• Die cast connector shell with nickel plated finish
• UL94V-0 Black Housing
• Contact plating gold
• Current rating 1.5 Amps
• Voltage rating 100 Vdc @ -25°C → +85°C
• Dielectric withstanding voltage 500Vac, RMS, 60Hz 1 minute
• Operating temperature range -40°C → +105°C
Amphenol USB & RJ45 Connectors, Harsh Environment
Spécifications
Attribut | Valeur |
|---|---|
| Gender | Female |
| USB Type | B |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Body Orientation | Right Angle |
| Number of Ports | 1 |
| Current Rating | 1.5A |
| Contact Material | Phosphor Bronze |
| Minimum Operating Temperature | -40.0°C |
| Maximum Operating Temperature | +85°C |
- N° de stock RS:
- 724-3235
- Référence fabricant:
- MUSBD11130
- Fabricant:
- Amphenol ICC
