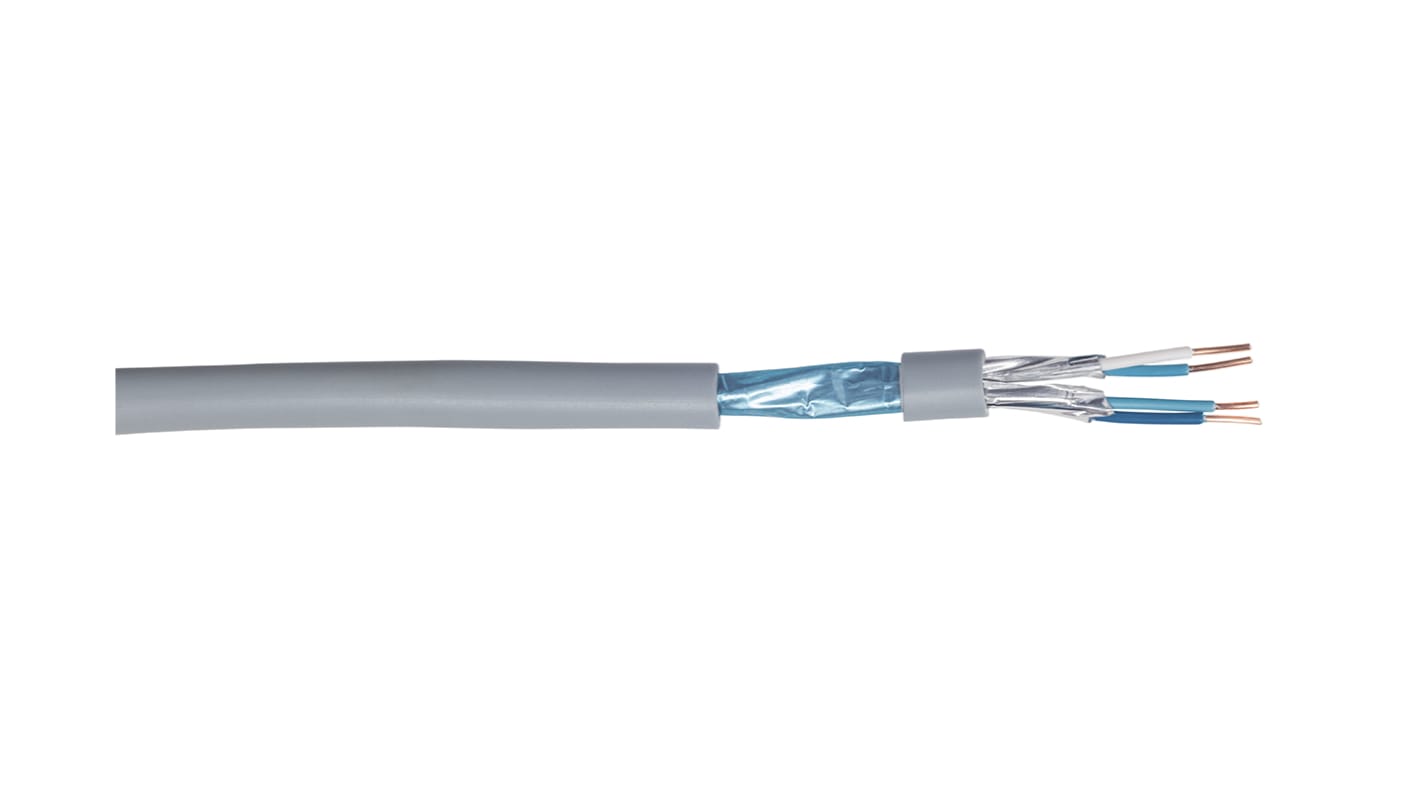

CAE Groupe 2 Pairs 100m Twisted 4 Core Telephone Cable, Aluminium/PET Tape, 24 AWG Grey Sheath 300 V

  • N° de stock RS 226-851
  • Référence fabricant SYT 2 24 G1
  • Fabricant CAE Groupe
Documentation technique
Législations et de normes
Déclaration de conformité RoHS
Pays d'origine : IT
Détails du produit

CAE Groupe SYT Series Telephone Link Cable

The SYT series telephone link cable from CAE has a AWG20 or AWG24 copper core, PE insulation and aluminium/polyester foil shielding.

Features and Benefits

Rigid bare copper wire conductor PE insulation
Tinned copper drain wire, aluminium/polyester foil shielding
PVC outer sheath
Flame behaviour Cat. C2 according to NF C 32-070

Product Application Information

This connection cable has been designed for use in electronics, measurement, control and signal applications.

SYT 2 24 G1

Grey PVC, 4.6 mm outer diameter, AWG 24, 2 pairs

Cable SYT

Spécifications
Attribut Valeur
Number of Cores 4
Shield Type Aluminium/PET Tape
Outer Sheath Material PVC
Reel Length 100m
Core Strands 1/0.51 mm
American Wire Gauge 24 AWG
Conductor Material Bare Copper
Cable Shape Twisted Pair
Standards Met IEC 60332-1, NF C 32-070/C2
Outer Diameter 4.6mm
Number of Strands 1
Sheath Colour Grey
Voltage Rating 300 V
25 En stock pour livraison sous 1 jour(s)
Prix 1 Reel of 100 Metre(s)
38,14
(TVA exclue)
46,15
(TVA incluse)
Bobine(s)
la bobine
le mètre*
1 +
38,14 €
0,381 €
*prix conseillé
