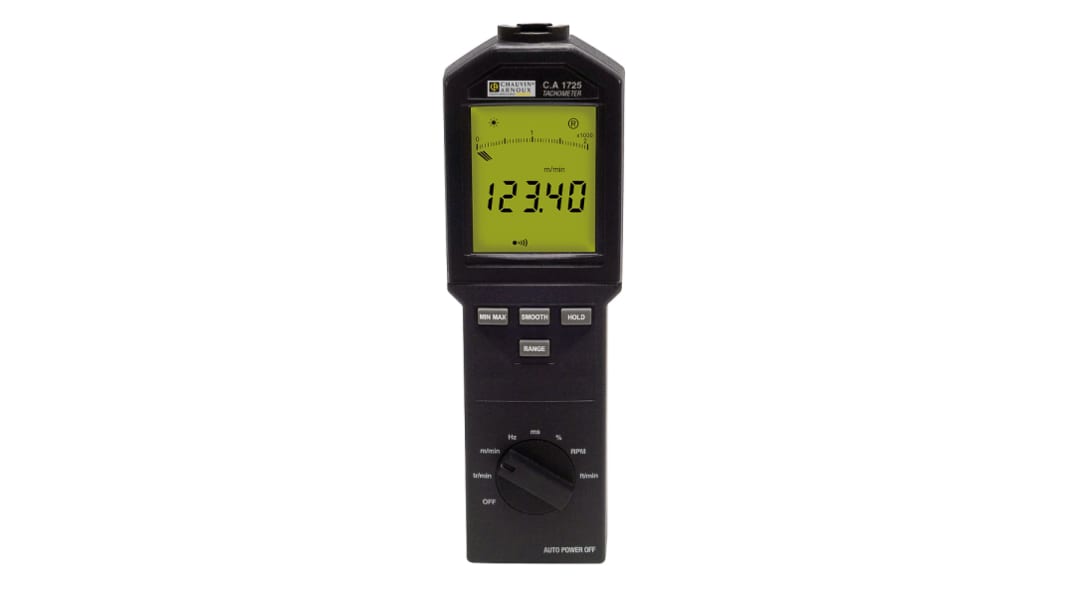

Chauvin Arnoux Tachometer Best Accuracy ±6 Counts - Non Contact LCD 100000rpm
- N° de stock RS:
- 705-9576
- Référence fabricant:
- P01174810
- Fabricant:
- Chauvin Arnoux
2 En stock pour livraison sous 1 jour(s)
Ajouté
Prix la pièce
457,00 €
(TVA exclue)
552,97 €
(TVA incluse)
| Unité | Prix par unité |
| 1 + | 457,00 € |
- N° de stock RS:
- 705-9576
- Référence fabricant:
- P01174810
- Fabricant:
- Chauvin Arnoux
Législations et de normes
Statut RoHS non applicable
- Pays d'origine :
- FR
Détails du produit
Industrial tachometers
Tachometers that provide excellent legibility, intended for numerous functions and measurements: rotation speed, linear speed, count, frequency and period
7 different units (rpm, m/min, Hz, ms, Duty%, ft/min)
MIN/MAX and HOLD functions
SMOOTH function (calculates a rolling average of the 10 most recent measurements)
Counter function (CA1727 only)
Two-level alarm function (CA1727 only)
Data saving and analysis with USB connection and TACHOGRAPH software (CA1727 only)
MIN/MAX and HOLD functions
SMOOTH function (calculates a rolling average of the 10 most recent measurements)
Counter function (CA1727 only)
Two-level alarm function (CA1727 only)
Data saving and analysis with USB connection and TACHOGRAPH software (CA1727 only)
Supplied with
Carrying case, 1 FRB F connector, 1 x 9 V battery, 1 set of 15 reflective films (0.1 m length), operating manual, TACHOGRAPH CD-ROM software (CA1727) and a quick start guide
Spécifications
Attribut | Valeur |
|---|---|
| Best Accuracy | ±6 Counts |
| Category | Non Contact |
| Model Number p | CA 1725 |
| Battery Life | 260 5-Minute Tests (Optical Sensor), 600 5-Minute Tests (External Sensor) |
| Display Type | LCD |
| Maximum Speed | 100000rpm |
| Dimensions | 72 x 47 x 216mm |
| Height | 216mm |
| Length | 72mm |
| Maximum Operating Temperature | +55°C |
| Minimum Operating Temperature | 0°C |
| Width | 47mm |
| Minimum Speed | 6rpm |
| Weight | 250g |
