- N° de stock RS:
- 365-6527
- Référence fabricant:
- 670200
- Fabricant:
- Spirax Sarco
2 En stock pour livraison sous 4 jour(s)
Ajouté
Prix la pièce
515,09 €
(TVA exclue)
623,26 €
(TVA incluse)
Unité | Prix par unité |
1 + | 515,09 € |
- N° de stock RS:
- 365-6527
- Référence fabricant:
- 670200
- Fabricant:
- Spirax Sarco
Documentation technique
Législations et de normes
Statut RoHS non applicable
Détails du produit

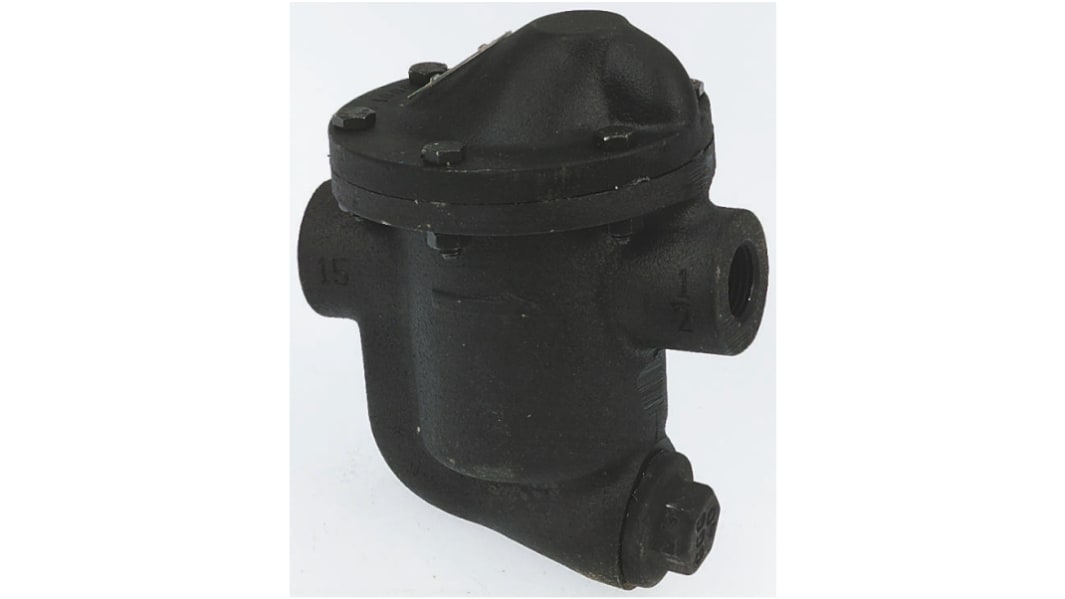

Inverted Bucket Steam Trap HM Series
In-line connections screwed BSP
Simple and robust mechanism for long life
Suitable for superheat conditions when fitted with inlet check valve
Choice of valve mechanisms to match precise condensate load and pressure differentials
Deep water seal to protect against the possibility of steam loss
Inbuilt strainer
Maximum operating temperature 300°C
Simple and robust mechanism for long life
Suitable for superheat conditions when fitted with inlet check valve
Choice of valve mechanisms to match precise condensate load and pressure differentials
Deep water seal to protect against the possibility of steam loss
Inbuilt strainer
Maximum operating temperature 300°C
Iron Steam Traps
All units PN16 with Stainless Steel internal parts and Reinforced Exfoliated Graphite gaskets, Straight Orientation; Maximum Operating Pressure - 14bar g; Maximum Allowable Pressure - 16 bar g; Maximum Cold Hydraulic Test Pressure - 24bar g; Cover Bolts Material - BS 3692 Gr.10 Steel;
Spécifications
Attribut | Valeur |
---|---|
Trap Type | Inverted Bucket |
Connection | 1/2 in BSP Female |
Orientation | Vertical |
Maximum Working Pressure | 8.5 bar |
Maximum Temperature | +300°C |
Body Material | Iron |
Gasket Material | Graphite |
Connection Gender | Female |
Connection Size | 1/2in |
Thread Standard or Connection Type | BSP |
