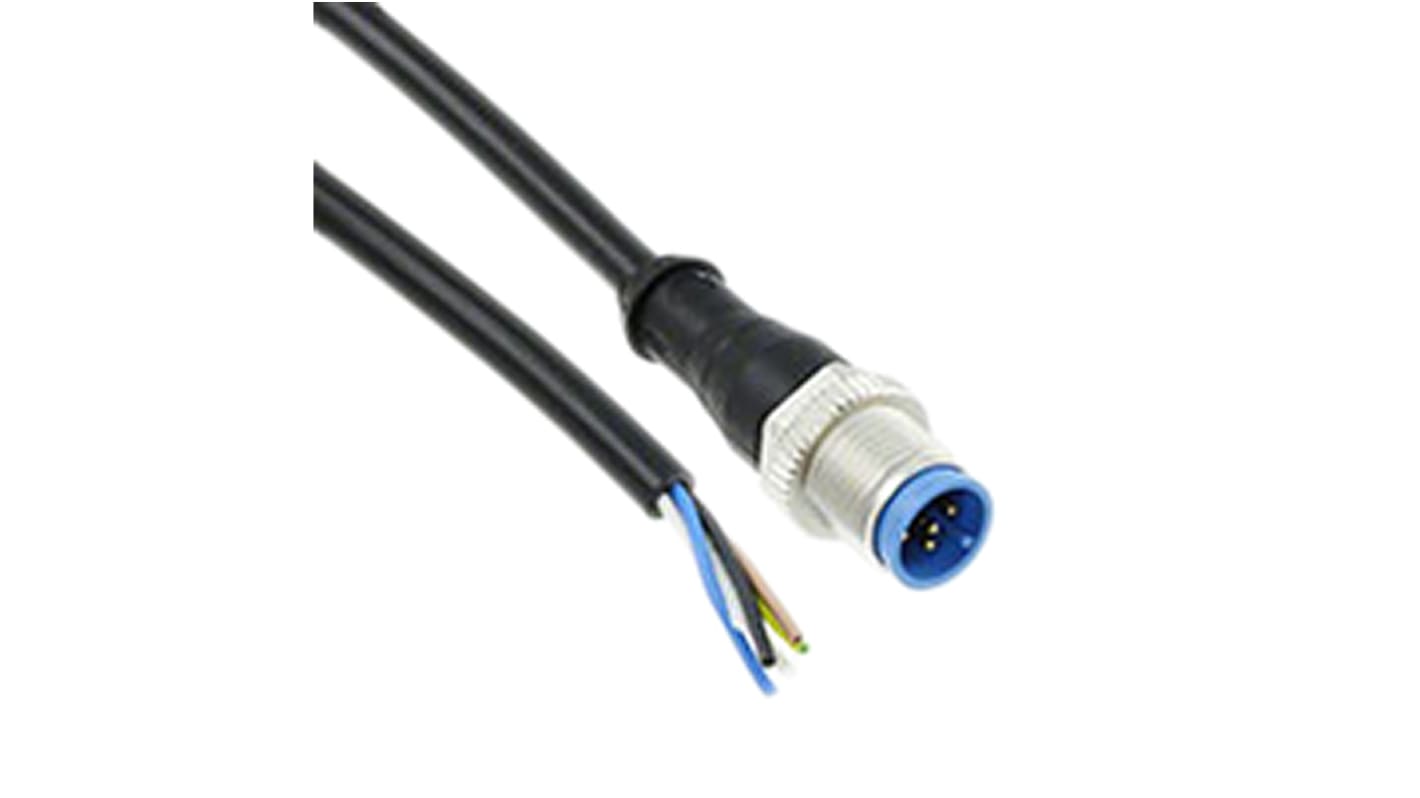

TE Connectivity Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 1.5m
- N° de stock RS:
- 892-0463
- Référence fabricant:
- 2273034-1
- Fabricant:
- TE Connectivity
En cours d'approvisionnement - expédition le 08/08/2024, livraison sous 4 jour(s)
Ajouté
Prix la pièce
16,90 €
(TVA exclue)
20,45 €
(TVA incluse)
| Unité | Prix par unité |
| 1 - 4 | 16,90 € |
| 5 - 9 | 16,06 € |
| 10 + | 15,21 € |
- N° de stock RS:
- 892-0463
- Référence fabricant:
- 2273034-1
- Fabricant:
- TE Connectivity
Documentation technique
Législations et de normes
- Pays d'origine :
- DE
Détails du produit
M12 Pigtail Connectors
From TE Connectivity, the M12 Pigtail Connector cable assembly is ideal for neat and secure connections in sensor and automation applications. With a screw terminal connection that offers a high degree of environmental protection, this cable assembly is well suited to industrial purposes. The “pigtail” wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.
The TE Connectivity range of M12 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.
The TE Connectivity range of M12 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.
Features and Benefits:
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
Applications:
• Sensor and Actuator
• Factory Automation
• I/O Boxes
• Sensor and Actuator
• Factory Automation
• I/O Boxes
Spécifications
Attribut | Valeur |
|---|---|
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 5 |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Length | 1.5m |
| Connector 1 | M12 |
| Connector 1 Orientation | Straight |
| Connector 1 Gender | Male |
| Connector 1 Number of Contacts | 5 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 125 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP65, IP67 |
| Minimum Bend Radius | 50 mm |
| Maximum Operating Temperature | +80°C |
| Operating Temperature Range | -50 → +80 °C |
| Connector 1 Housing Gender | Male |
| Outer Diameter | 5mm |
| American Wire Gauge | 22 AWG |
| Insulation Material | PP |
| Minimum Operating Temperature | -50°C |
| Cable Shape | Multicore |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL |
