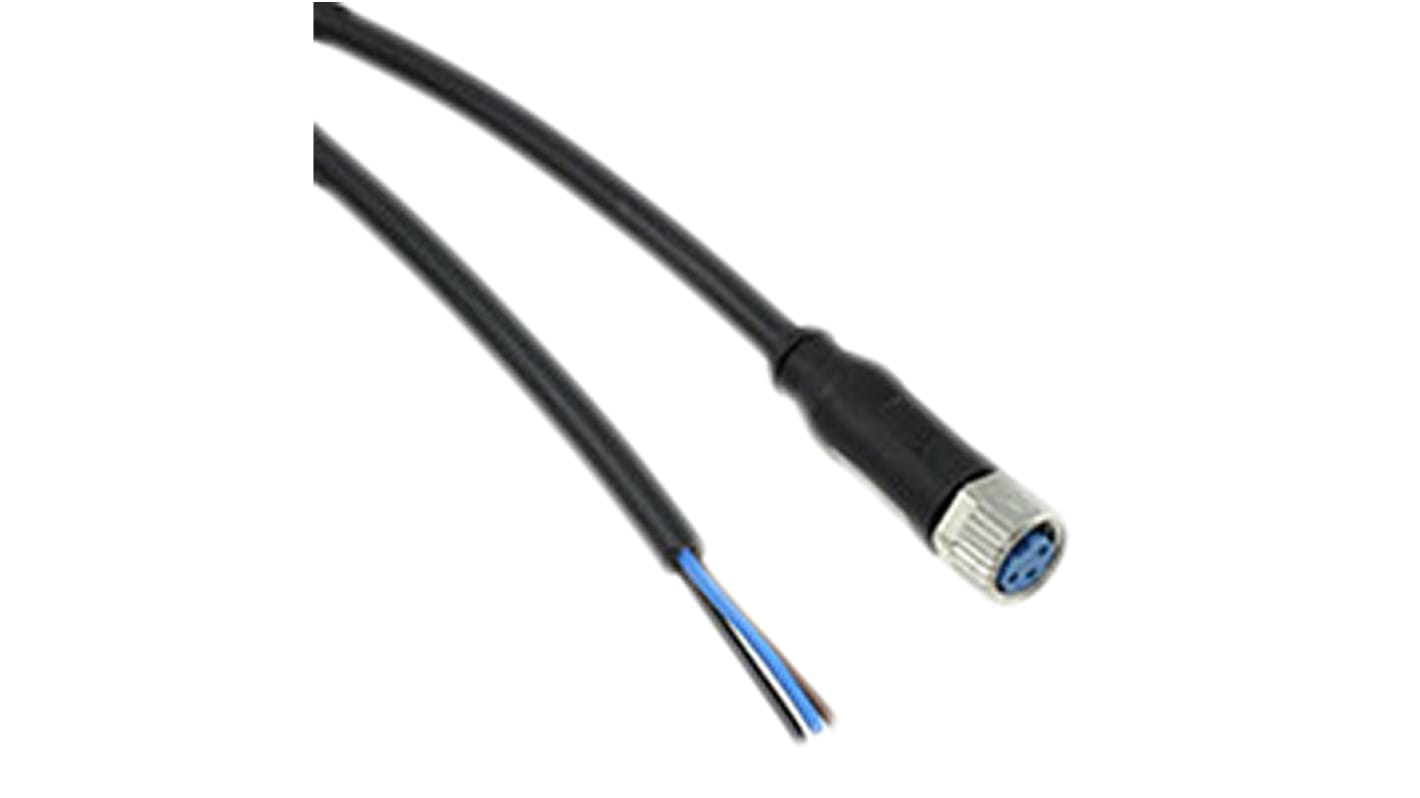

TE Connectivity Straight Female 3 way M8 to Unterminated Sensor Actuator Cable, 1.5m
- N° de stock RS:
- 164-8802
- Référence fabricant:
- 1-2273001-1
- Fabricant:
- TE Connectivity
En cours d'approvisionnement - expédition le 21/08/2024, livraison sous 4 jour(s)
Ajouté
Prix L'unité (en boîte de 25)
7,865 €
(TVA exclue)
9,517 €
(TVA incluse)
| Unité | Prix par unité | La Boite* |
| 25 + | 7,865 € | 196,625 € |
| *prix conseillé | ||
- N° de stock RS:
- 164-8802
- Référence fabricant:
- 1-2273001-1
- Fabricant:
- TE Connectivity
Documentation technique
Législations et de normes
- Pays d'origine :
- DE
Détails du produit
M8 Pigtail Connector
From TE Connectivity, the M8 Pigtail Connector cable assembly is ideal for neat and secure connections in sensor and automation applications. With a screw terminal connection that offers a high degree of environmental protection this cable assembly is well suited to industrial purposes. The “pigtail” wire arrangement ensures that the cable is kept tidy and secure all the way down to its free end, which consists of 20mm of un-terminated wire.
The TE Connectivity range of M8 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.
The TE Connectivity range of M8 connector cable assemblies offers an ideal solution for when reliable, high bandwidth data transmission is a must.
Features and Benefits:
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
• Compact and Reliable Connection
• Environmental Protection
• High Bandwidth
Applications:
• Sensor and Actuator
• Factory Automation
• I/O Boxes
• Sensor and Actuator
• Factory Automation
• I/O Boxes
Spécifications
Attribut | Valeur |
|---|---|
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 3 |
| Length | 1.5m |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Connector 1 Number of Contacts | 3 |
| Connector 1 | M8 |
| Connector 1 Gender | Female |
| Connector 1 Orientation | Straight |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 60 V ac/dc |
| Current Rating | 4 A |
| IP Rating | IP65, IP67 |
| Insulation Material | PVC |
| Minimum Bend Radius | 45 mm |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 4.5mm |
| Connector 1 Housing Gender | Female |
| Operating Temperature Range | -30 → +80 °C |
| Standards Met | CSA, ELV Compliant, EN 60529, RoHS Compliant, UL |
| Maximum Operating Temperature | +80°C |
| Cable Shape | Multicore |
| Minimum Operating Temperature | -30°C |
