Omron 10 Pin Relay Socket, DIN Rail, 24V dc for use with G7SA Series Relay

  • N° de stock RS 125-0869
  • Référence fabricant P7SA-10F-ND-PU DC24
  • Fabricant Omron
Documentation technique
Législations et de normes
Déclaration de conformité RoHS
Pays d'origine : CN
Détails du produit

6A Relays with Forcibly Guided Contacts - G7SA

The slimline G7SA relay family with forcibly guided contacts is available as a four- or six-pole type in various contact combinations and offers reinforced insulation. Terminals are arranged for easy PCB layout. It can be soldered directly to a PCB or used together with the P7SA sockets for panel installations.

Forcibly guided contacts
6A at 240VAC and 6A at 24VDC for resistive loads
Reinforced insulation between inputs and outputs and poles
4- and 6-pole relays available
Sealing: flux-tight
Operating temperature: -40 to 85C

Standards

Conforms to EN 50205

Approvals

UL, CSA

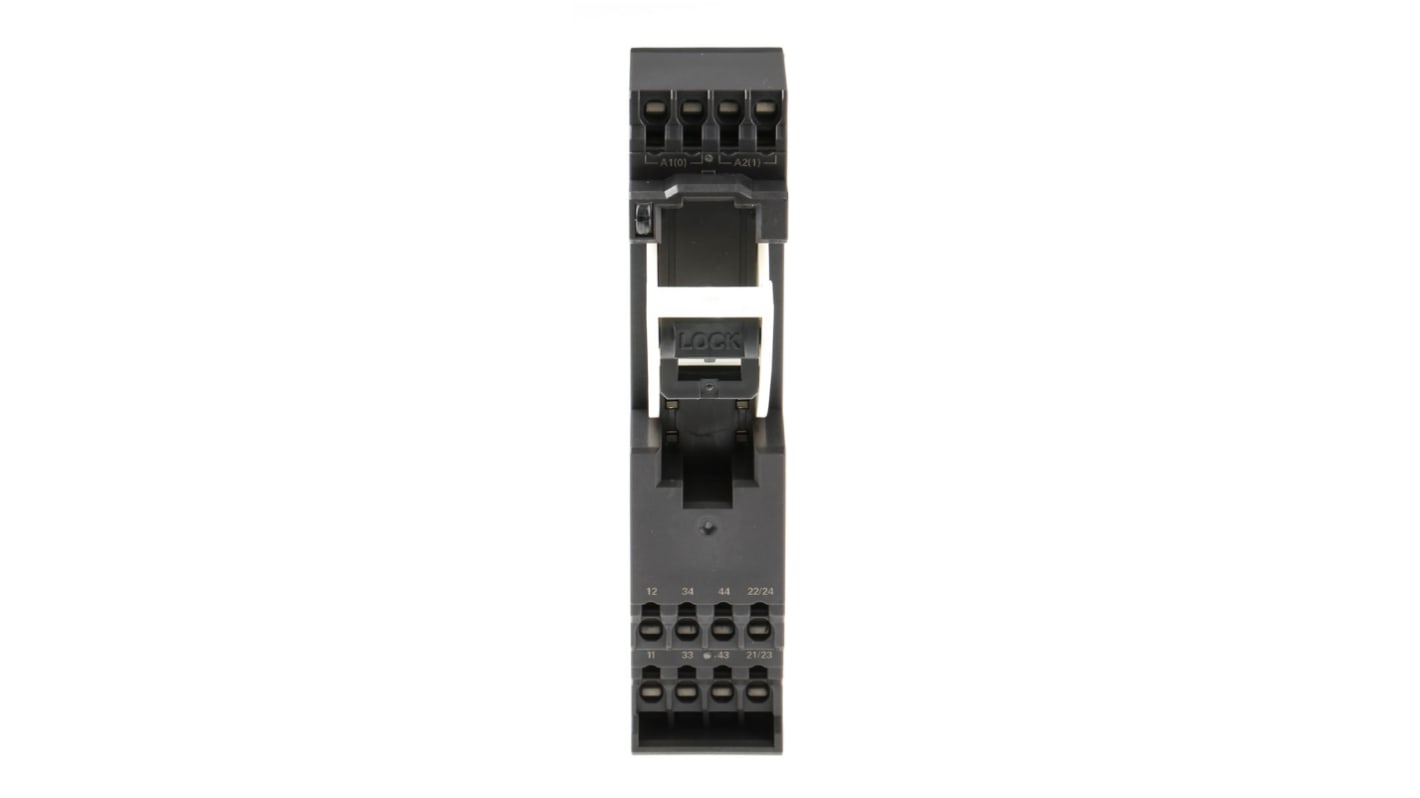

Omron Relay Socket

The Omron 10-pin, 24VDC DIN rail mount socket has screw terminal leads. It has a contact terminal current rating of 6A and voltage rating of 240VAC. The socketed relay is retained and ejected using a simple clip. It has push-in plus terminals and a LED indicator. This relay socket is used with G7SA series.

Features and Benefits

• Dielectric strength 4kVAC for 1min

Reinforced insulation between inputs and outputs and poles
• Flux-tight sealing
• Forcibly guided contacts
• Operating temperature ranges between -20°C and 70°C
• Insulation resistance is 1000 Mohm min

Applications


Timers
• Counters
• Temperature controllers

Certifications


UL approved
• CE certified

Spécifications
Attribut Valeur
Voltage 24V dc
For Use With G7SA Series Relay
Accessory Type Socket
Current Rating 6A
Termination Type Push In
Mounting Type DIN Rail
Number of Contacts 10
