- N° de stock RS:
- 488-7659
- Référence fabricant:
- DAT72410S
- Fabricant:
- Sensata / Cynergy3
35 En stock, livraison sous 1 jour(s) (stock Europe)
50 En stock, livraison sous 3 à 5 jours (stock Europe)
Ajouté
Prix la pièce
61,70 €
(TVA exclue)
74,66 €
(TVA incluse)
Unité | Prix par unité |
1 - 24 | 61,70 € |
25 - 99 | 58,67 € |
100 + | 55,28 € |
- N° de stock RS:
- 488-7659
- Référence fabricant:
- DAT72410S
- Fabricant:
- Sensata / Cynergy3
Documentation technique
Législations et de normes
- Pays d'origine :
- GB
Détails du produit
Vacuum Encapsulated D Series, Panel Mount
50W switching
7kVdc or ac peak switching voltage
10kV contact isolation
17kV contact to coil isolation
Insulation resistance 1010 ohms
Contact resistance 250 mΩ max
Operate time (inc. bounce) 3ms
Release time (inc. bounce) 2ms
Panel mount with 0.25in. male terminals
Suitable for high voltage test equipment and power supplies
7kVdc or ac peak switching voltage
10kV contact isolation
17kV contact to coil isolation
Insulation resistance 1010 ohms
Contact resistance 250 mΩ max
Operate time (inc. bounce) 3ms
Release time (inc. bounce) 2ms
Panel mount with 0.25in. male terminals
Suitable for high voltage test equipment and power supplies

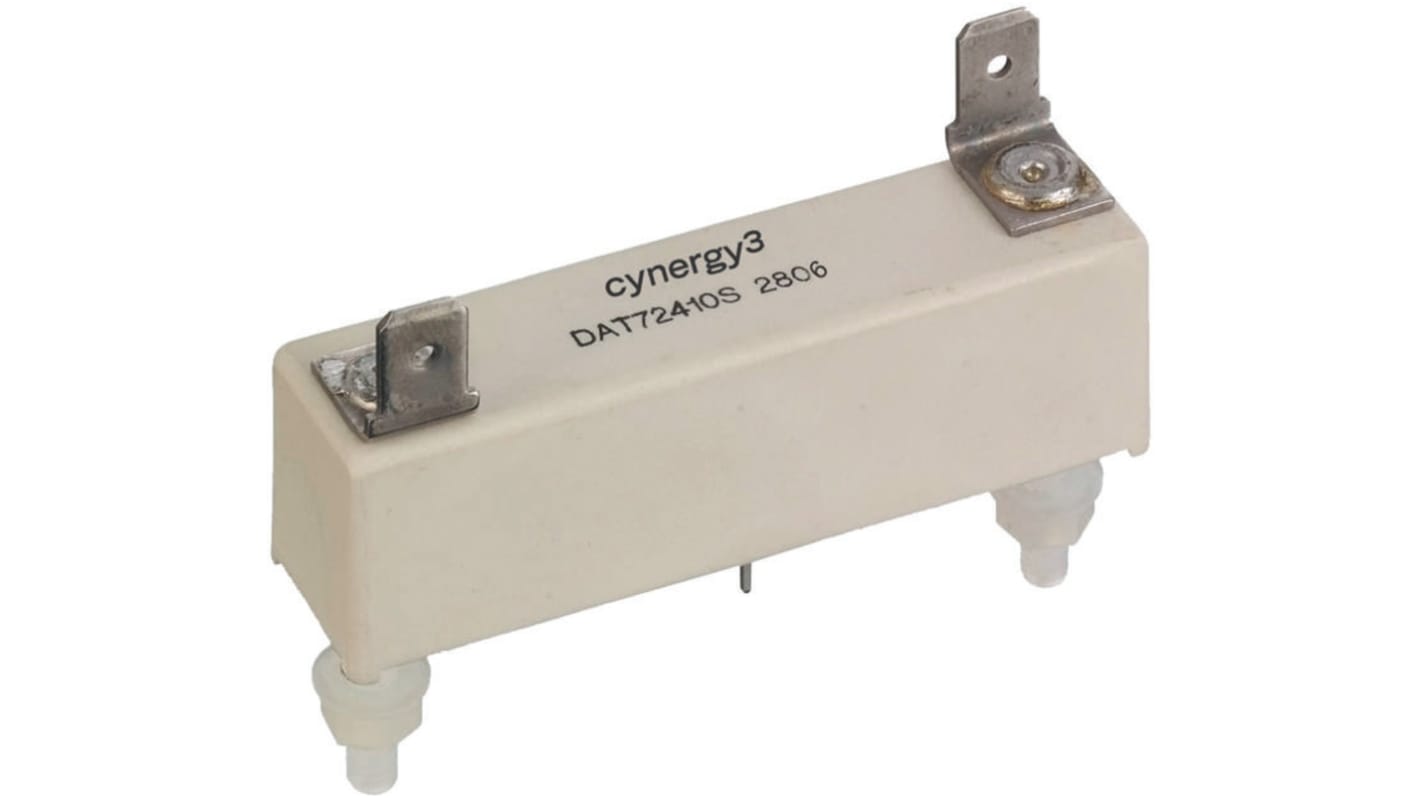

Sensata Cynergy3 Panel-Mounted Reed Relay, 2A, 24 V DC - D Series - DAT72410S
If you need a device to ensure the smooth transition of power to your electrical installations, choose this SPNO (single pole, normally open) reed relay from Sensata Cynergy3. It contains internal reed switches that transmit electrical charges for swift contact-to-coil charge transfer of up to 17 kV. Thanks to its maximum switching voltage of 7000 V AC, this reed relay is suitable for use in high-voltage applications, such as medical devices and industrial equipment. It offers a lifespan of up to one million electrical cycles, so you can be sure of long-lasting performance.
Features and Benefits
• Operating time of 3 milliseconds to ensure quick electrical charges
• Maximum operating temperature of up to +70°C makes it suitable for high-temperature applications
• Reed switches include tungsten contacts for optimal connectivity and durability
• Compact length of 60 mm for use in areas where space is restricted
• Quick-connect terminal type for fast and simple connections
• Maximum operating temperature of up to +70°C makes it suitable for high-temperature applications
• Reed switches include tungsten contacts for optimal connectivity and durability
• Compact length of 60 mm for use in areas where space is restricted
• Quick-connect terminal type for fast and simple connections
How do I install this reed relay?
The reed relay comes ready for panel mounting. It has 1/4-in male terminals for a secure fit using nylon studs.
Spécifications
Attribut | Valeur |
---|---|
Contact Configuration | SPST |
Coil Voltage | 24V dc |
Mounting Type | PCB Mount |
Maximum Switching Current DC | 2 A |
Maximum Switching Voltage AC | 7000V |
Maximum Switching Voltage DC | 7000V dc |
Coil Resistance | 780Ω |
Length | 60mm |
Height | 24.8mm |
Depth | 15.8mm |
Dimensions | 60 x 15.8 x 24.8mm |
Isolation Coil To Contact | 17kV ac/dc |
Contact Material | Tungsten |
Life | 1000000 (Electrical) Cycles |
Special Features | Low Contact Resistance, High Power Switching |
Relay Switching Classification | Power Relay |
Maximum Switching Power DC | 50 W |
Operating Temperature Range | -20 → +70°C |
Operating Time Including Bounce | 3ms |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Electrical Life | 1000000 (Electrical) Cycles |
Terminal Type | Quick Connect |
Contact Resistance | 250 mΩ |
