Détails du produit

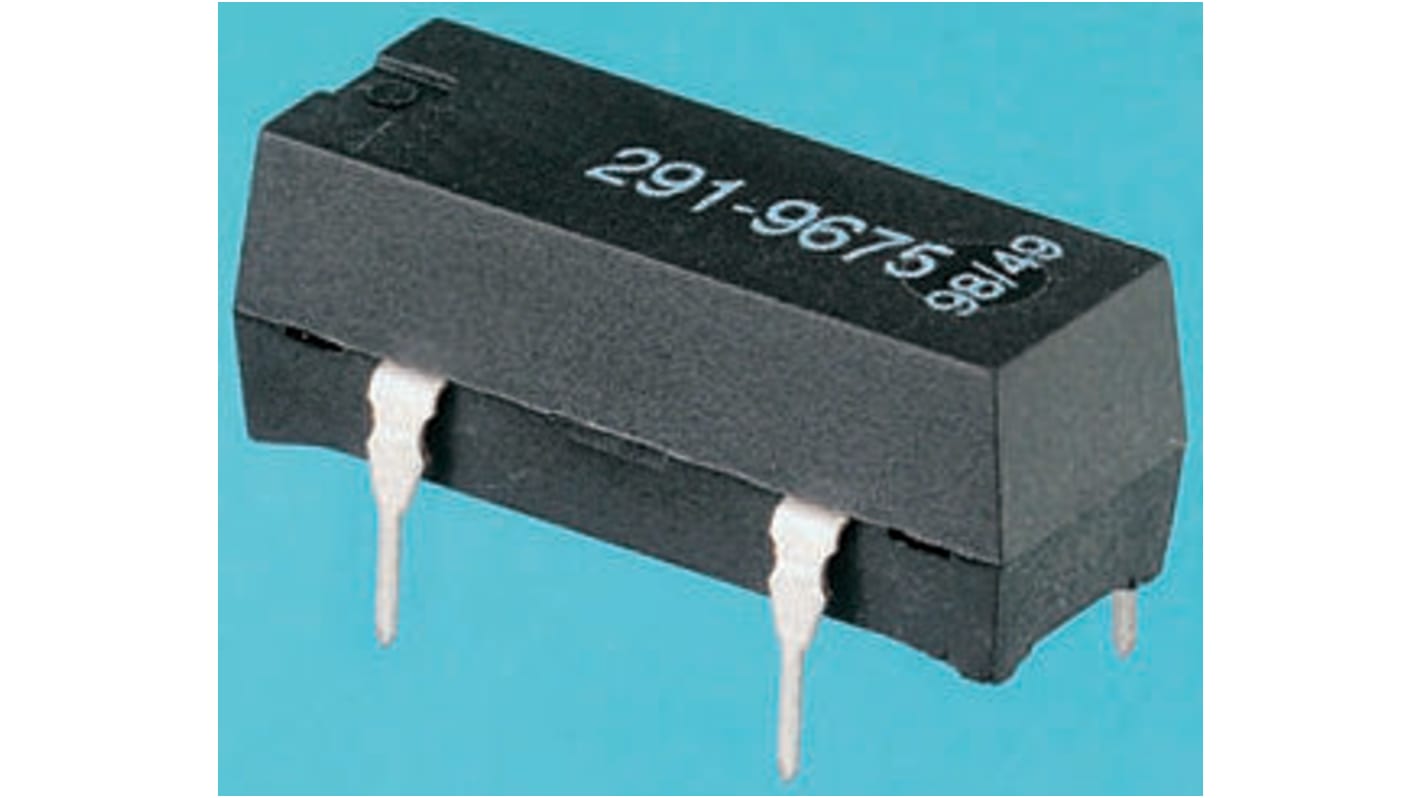

SPNO DIL Relay
Ideal for use with mains triac trigger devices
Normally open contacts with 240V ac mains switching capability
Industry Standard pin configurations
Coil suppression diode across pins 2 and 6
Operating temperature -20 to +70°C
Normally open contacts with 240V ac mains switching capability
Industry Standard pin configurations
Coil suppression diode across pins 2 and 6
Operating temperature -20 to +70°C
Approvals
UL
Spécifications
Attribut | Valeur |
---|---|
Contact Configuration | SPST |
Coil Voltage | 5V dc |
Mounting Type | PCB Mount |
Maximum Switching Current AC | 0.5 A |
Maximum Switching Current DC | 0.5 A |
Maximum Switching Voltage AC | 300V ac |
Maximum Switching Voltage DC | 300V dc |
Coil Power | 125mW |
Coil Resistance | 200Ω |
Length | 19.3mm |
Height | 7.5mm |
Depth | 7mm |
Dimensions | 19.3 x 7 x 7.5mm |
Isolation Coil To Contact | 2.5kV dc |
Contact Material | Tin Plated Copper Alloy |
Contact Resistance | 200 mΩ |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +70°C |
Standards Met | RoHS Compliant |
Operating Time Including Bounce | 0.5ms |
Maximum Switching Power DC | 10 W |
Operating Temperature Range | -20 → +70°C |
Terminal Type | Through Hole |
